Datasheet GS66508T (GaN Systems) - 6
| Hersteller | GaN Systems |
| Beschreibung | 650V Enhancement Mode GaN Transistor |
| Seiten / Seite | 17 / 6 — Electrical Performance Graphs |
| Dateiformat / Größe | PDF / 1.0 Mb |
| Dokumentensprache | Englisch |
Electrical Performance Graphs
Modelllinie für dieses Datenblatt
Textversion des Dokuments
GS66508T Top-side cooled 650 V E-mode GaN transistor Preliminary Datasheet
Electrical Performance Graphs

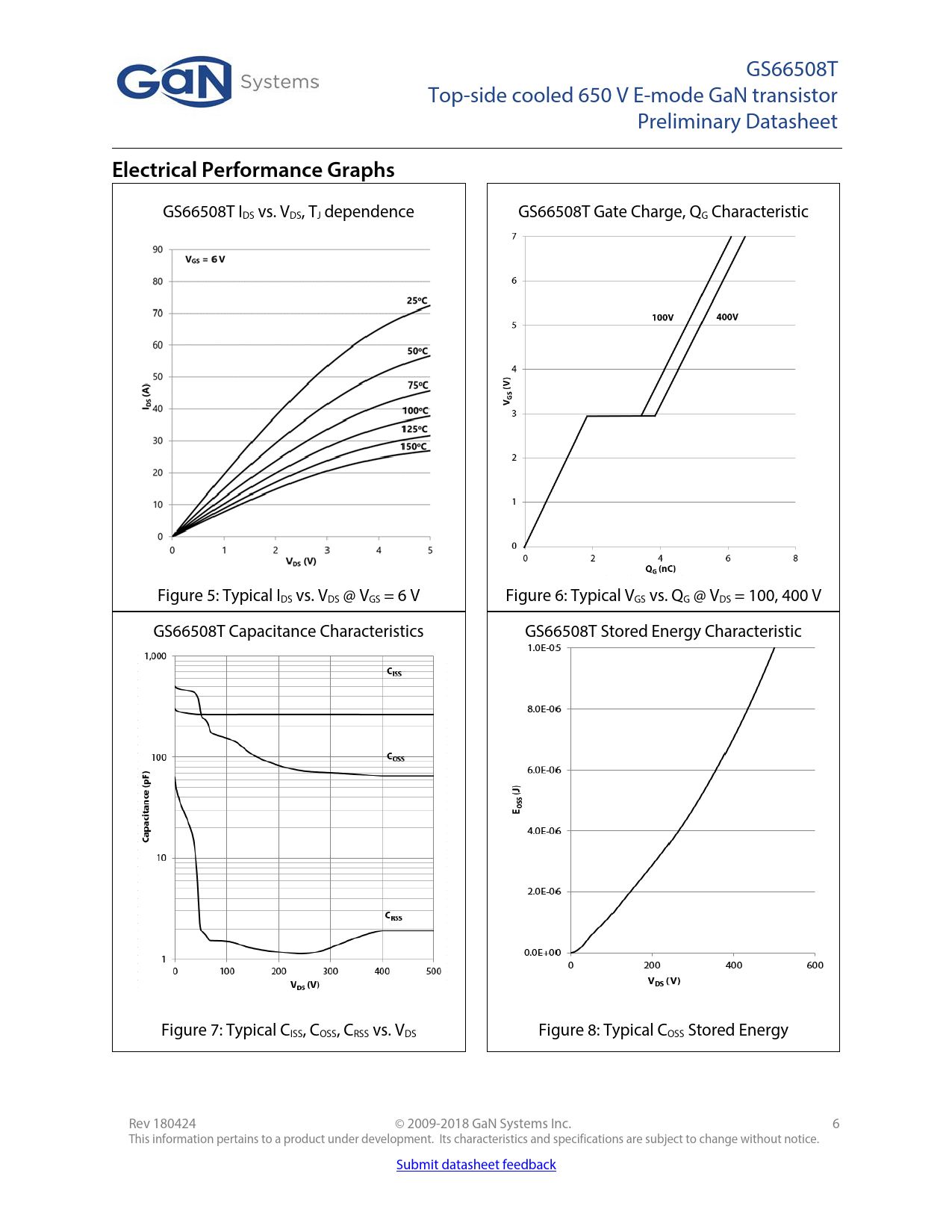

GS66508T IDS vs. VDS, TJ dependence GS66508T Gate Charge, QG Characteristic Figure 5: Typical IDS vs. VDS @ VGS = 6 V Figure 6: Typical VGS vs. QG @ VDS = 100, 400 V GS66508T Capacitance Characteristics GS66508T Stored Energy Characteristic Figure 7: Typical CISS, COSS, CRSS vs. VDS Figure 8: Typical COSS Stored Energy Rev 180424 © 2009-2018 GaN Systems Inc. 6 This information pertains to a product under development. Its characteristics and specifications are subject to change without notice. Submit datasheet feedback
