Datasheet MAX4626, MAX4627, MAX4628 (Maxim) - 5
| Hersteller | Maxim |
| Beschreibung | 0.5Ω, Low-Voltage, Single-Supply SPST Analog Switches |
| Seiten / Seite | 9 / 5 — Typical Operating Characteristics (continued). TOTAL HARMONIC DISTORTION. … |
| Dateiformat / Größe | PDF / 691 Kb |
| Dokumentensprache | Englisch |
Typical Operating Characteristics (continued). TOTAL HARMONIC DISTORTION. vs. FREQUENCY. OVERCURRENT RESPONSE. Pin Description
Modelllinie für dieses Datenblatt
Textversion des Dokuments

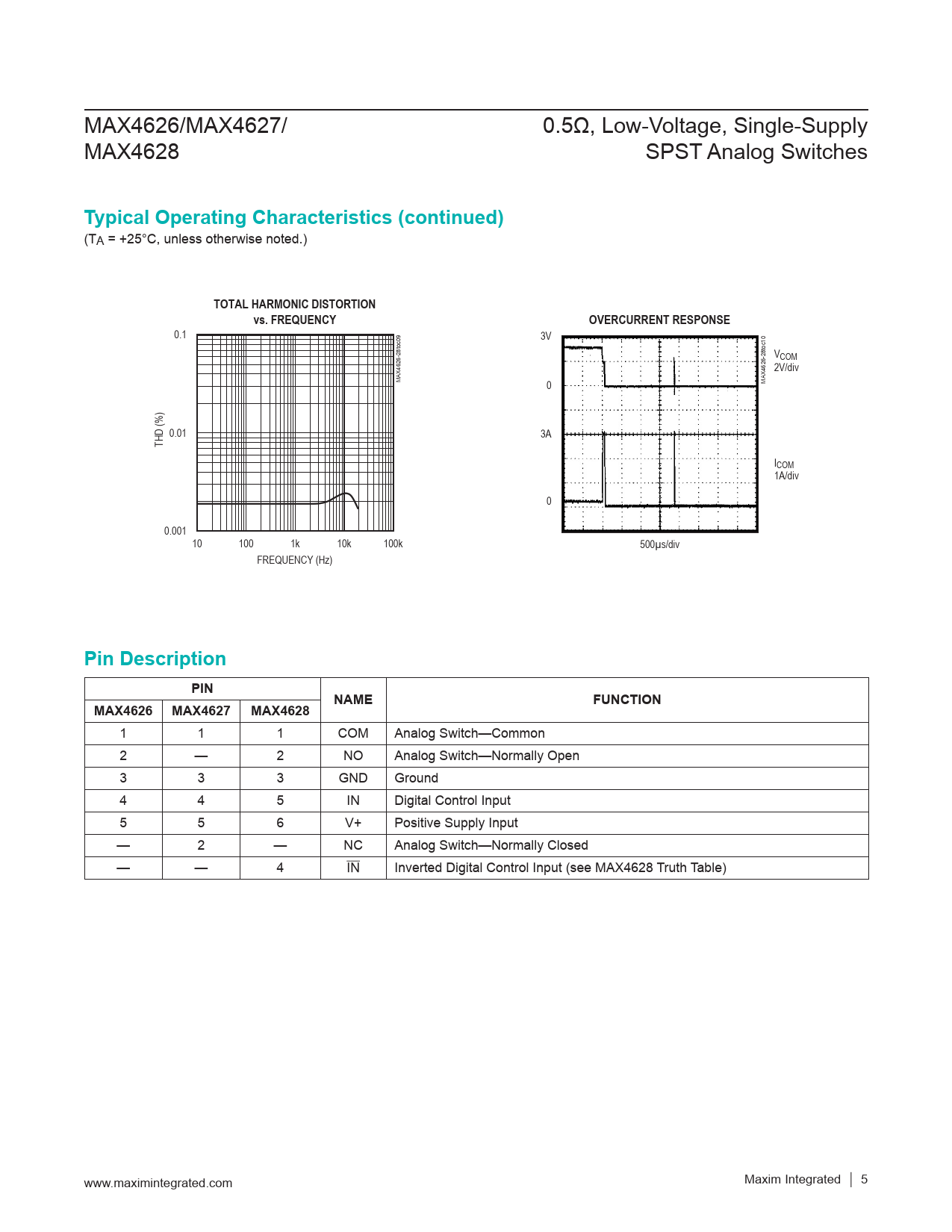

MAX4626/MAX4627/ 0.5Ω, Low-Voltage, Single-Supply MAX4628 SPST Analog Switches
Typical Operating Characteristics (continued)
(TA = +25°C, unless otherwise noted.)
TOTAL HARMONIC DISTORTION vs. FREQUENCY OVERCURRENT RESPONSE
0.1 3V VCOM 2V/div MAX4626-28toc09 MAX4626-28toc10 0 0.01 3A THD (%) ICOM 1A/div 0 0.001 10 100 1k 10k 100k 500µs/div FREQUENCY (Hz)
Pin Description PIN NAME FUNCTION MAX4626 MAX4627 MAX4628
1 1 1 COM Analog Switch—Common 2 — 2 NO Analog Switch—Normally Open 3 3 3 GND Ground 4 4 5 IN Digital Control Input 5 5 6 V+ Positive Supply Input — 2 — NC Analog Switch—Normally Closed — — 4 IN Inverted Digital Control Input (see MAX4628 Truth Table) www.maximintegrated.com Maxim Integrated │ 5
Typical Operating Characteristics (continued)
(TA = +25°C, unless otherwise noted.)
TOTAL HARMONIC DISTORTION vs. FREQUENCY OVERCURRENT RESPONSE
0.1 3V VCOM 2V/div MAX4626-28toc09 MAX4626-28toc10 0 0.01 3A THD (%) ICOM 1A/div 0 0.001 10 100 1k 10k 100k 500µs/div FREQUENCY (Hz)
Pin Description PIN NAME FUNCTION MAX4626 MAX4627 MAX4628
1 1 1 COM Analog Switch—Common 2 — 2 NO Analog Switch—Normally Open 3 3 3 GND Ground 4 4 5 IN Digital Control Input 5 5 6 V+ Positive Supply Input — 2 — NC Analog Switch—Normally Closed — — 4 IN Inverted Digital Control Input (see MAX4628 Truth Table) www.maximintegrated.com Maxim Integrated │ 5
