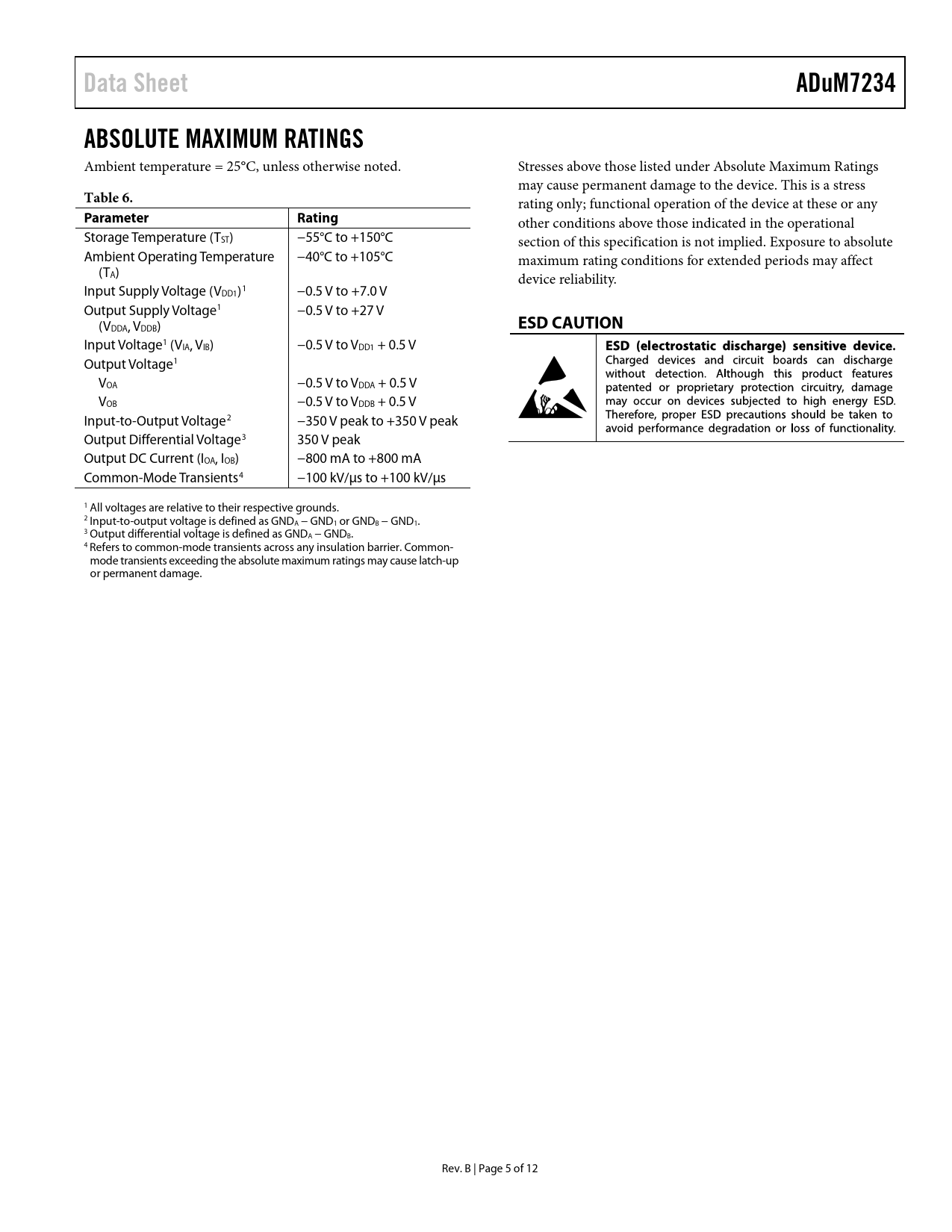

Data Sheet ADuM7234 ABSOLUTE MAXIMUM RATINGS
Ambient temperature = 25°C, unless otherwise noted. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Table 6.
rating only; functional operation of the device at these or any
Parameter Rating
other conditions above those indicated in the operational Storage Temperature (TST) −55°C to +150°C section of this specification is not implied. Exposure to absolute Ambient Operating Temperature −40°C to +105°C maximum rating conditions for extended periods may affect (TA) device reliability. Input Supply Voltage (VDD1)1 −0.5 V to +7.0 V Output Supply Voltage1 −0.5 V to +27 V (V
