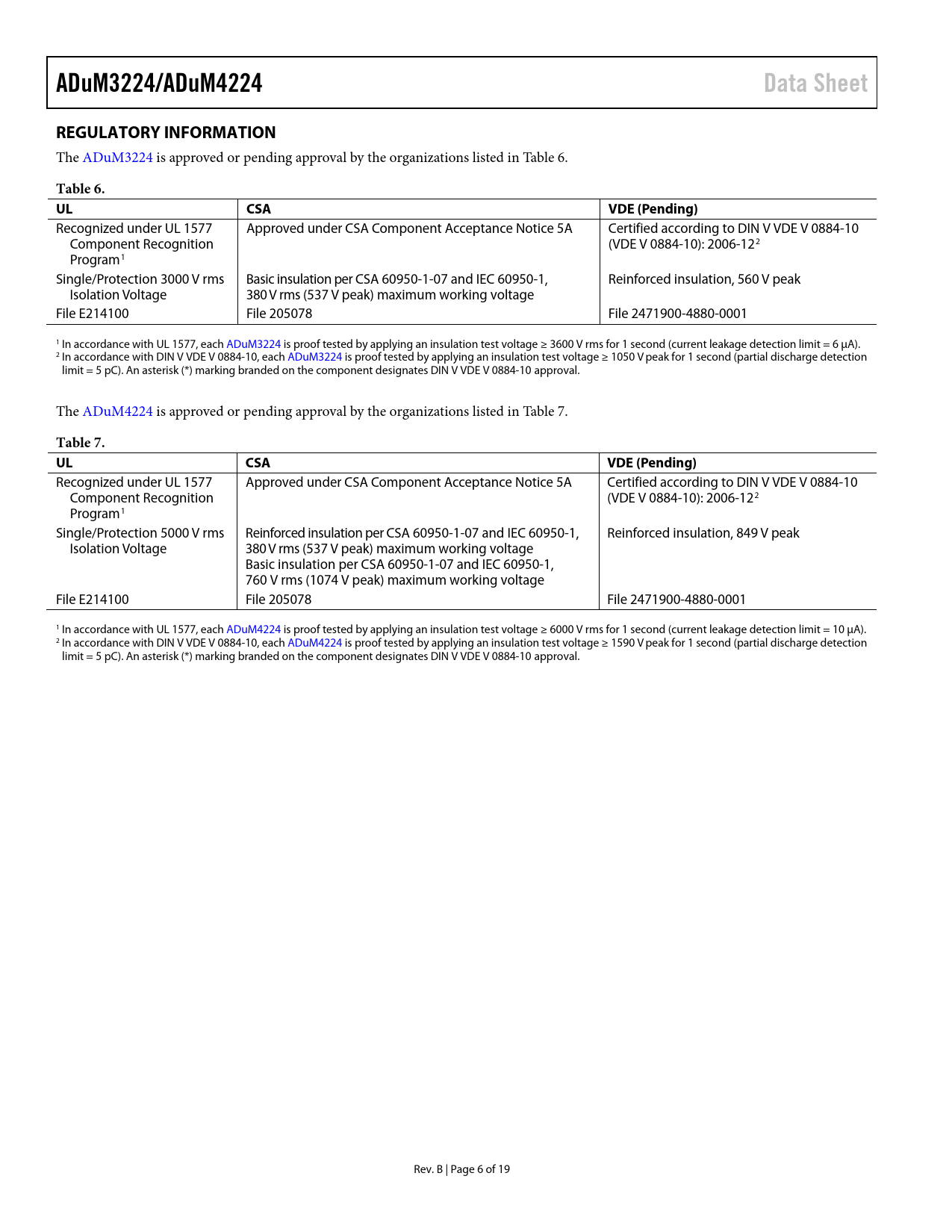

ADuM3224/ADuM4224 Data Sheet REGULATORY INFORMATION
The ADuM3224 is approved or pending approval by the organizations listed in Table 6.
Table 6. UL CSA VDE (Pending)
Recognized under UL 1577 Approved under CSA Component Acceptance Notice 5A Certified according to DIN V VDE V 0884-10 Component Recognition (VDE V 0884-10): 2006-122 Program1 Single/Protection 3000 V rms Basic insulation per CSA 60950-1-07 and IEC 60950-1, Reinforced insulation, 560 V peak Isolation Voltage 380 V rms (537 V peak) maximum working voltage File E214100 File 205078 File 2471900-4880-0001 1 In accordance with UL 1577, each ADuM3224 is proof tested by applying an insulation test voltage ≥ 3600 V rms for 1 second (current leakage detection limit = 6 µA). 2 In accordance with DIN V VDE V 0884-10, each ADuM3224 is proof tested by applying an insulation test voltage ≥ 1050 V peak for 1 second (partial discharge detection limit = 5 pC). An asterisk (*) marking branded on the component designates DIN V VDE V 0884-10 approval. The ADuM4224 is approved or pending approval by the organizations listed in Table 7.
Table 7. UL CSA VDE (Pending)
Recognized under UL 1577 Approved under CSA Component Acceptance Notice 5A Certified according to DIN V VDE V 0884-10 Component Recognition (VDE V 0884-10): 2006-122 Program1 Single/Protection 5000 V rms Reinforced insulation per CSA 60950-1-07 and IEC 60950-1, Reinforced insulation, 849 V peak Isolation Voltage 380 V rms (537 V peak) maximum working voltage Basic insulation per CSA 60950-1-07 and IEC 60950-1, 760 V rms (1074 V peak) maximum working voltage File E214100 File 205078 File 2471900-4880-0001 1 In accordance with UL 1577, each ADuM4224 is proof tested by applying an insulation test voltage ≥ 6000 V rms for 1 second (current leakage detection limit = 10 µA). 2 In accordance with DIN V VDE V 0884-10, each ADuM4224 is proof tested by applying an insulation test voltage ≥ 1590 V peak for 1 second (partial discharge detection limit = 5 pC). An asterisk (*) marking branded on the component designates DIN V VDE V 0884-10 approval. Rev. B | Page 6 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5 V OPERATION ELECTRICAL CHARACTERISTICS—3.3 V OPERATION PACKAGE CHARACTERISTICS INSULATION AND SAFETY RELATED SPECIFICATIONS ADuM3224 Specifications ADuM4224 Specifications REGULATORY INFORMATION DIN V VDE V 0884-10 (VDE V 0884-10) INSULATION CHARACTERISTICS RECOMMENDED OPERATING CONDITIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION PRINTED CIRCUIT BOARD LAYOUT UNDERVOLTAGE LOCKOUT PROPAGATION DELAY-RELATED PARAMETERS THERMAL LIMITATIONS AND SWITCH LOAD CHARACTERISTICS OUTPUT LOAD CHARACTERISTICS BOOTSTRAPPED HALF-BRIDGE OPERATION DC CORRECTNESS AND MAGNETIC FIELD IMMUNITY POWER CONSUMPTION INSULATION LIFETIME OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
