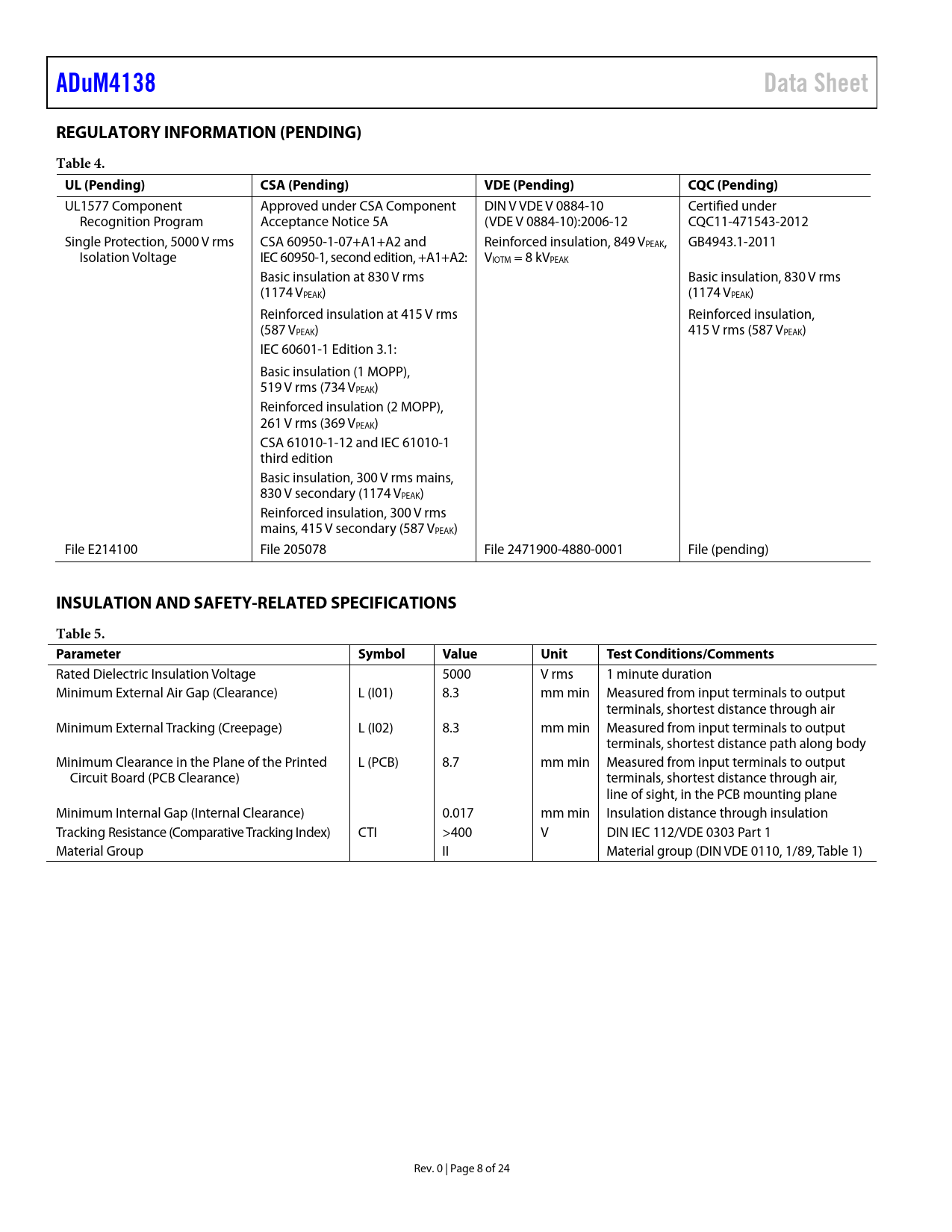

ADuM4138 Data Sheet REGULATORY INFORMATION (PENDING) Table 4. UL (Pending) CSA (Pending) VDE (Pending) CQC (Pending)
UL1577 Component Approved under CSA Component DIN V VDE V 0884-10 Certified under Recognition Program Acceptance Notice 5A (VDE V 0884-10):2006-12 CQC11-471543-2012 Single Protection, 5000 V rms CSA 60950-1-07+A1+A2 and Reinforced insulation, 849 VPEAK, GB4943.1-2011 Isolation Voltage IEC 60950-1, second edition, +A1+A2: VIOTM = 8 kVPEAK Basic insulation at 830 V rms Basic insulation, 830 V rms (1174 VPEAK) (1174 VPEAK) Reinforced insulation at 415 V rms Reinforced insulation, (587 VPEAK) 415 V rms (587 VPEAK) IEC 60601-1 Edition 3.1: Basic insulation (1 MOPP), 519 V rms (734 VPEAK) Reinforced insulation (2 MOPP), 261 V rms (369 VPEAK) CSA 61010-1-12 and IEC 61010-1 third edition Basic insulation, 300 V rms mains, 830 V secondary (1174 VPEAK) Reinforced insulation, 300 V rms mains, 415 V secondary (587 VPEAK) File E214100 File 205078 File 2471900-4880-0001 File (pending)
INSULATION AND SAFETY-RELATED SPECIFICATIONS Table 5. Parameter Symbol Value Unit Test Conditions/Comments
Rated Dielectric Insulation Voltage 5000 V rms 1 minute duration Minimum External Air Gap (Clearance) L (I01) 8.3 mm min Measured from input terminals to output terminals, shortest distance through air Minimum External Tracking (Creepage) L (I02) 8.3 mm min Measured from input terminals to output terminals, shortest distance path along body Minimum Clearance in the Plane of the Printed L (PCB) 8.7 mm min Measured from input terminals to output Circuit Board (PCB Clearance) terminals, shortest distance through air, line of sight, in the PCB mounting plane Minimum Internal Gap (Internal Clearance) 0.017 mm min Insulation distance through insulation Tracking Resistance (Comparative Tracking Index) CTI >400 V DIN IEC 112/VDE 0303 Part 1 Material Group II Material group (DIN VDE 0110, 1/89, Table 1) Rev. 0 | Page 8 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS ELECTRICAL CHARACTERISTICS SPI TIMING SPECIFICATIONS SPI Timing Diagram PACKAGE CHARACTERISTICS REGULATORY INFORMATION (PENDING) INSULATION AND SAFETY-RELATED SPECIFICATIONS DIN V VDE V 0884-10 (VDE V 0884-10):2016-12 INSULATION CHARACTERISTICS (PENDING) RECOMMENDED OPERATING CONDITIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION PCB LAYOUT ISOLATED FLYBACK CONTROLLER SPI AND EEPROM OPERATION SPI Programming USER REGISTER MAP USER REGISTER BITS OFFSET_2[5:0] Bits GAIN_2[5:0] Bits OFFSET_1[5:0] Bits GAIN_1[5:0] Bits CONFIGURATION REGISTER BITS OT_FAULT_OP Bit OT_FAULT_SEL Bit OC_TIME_OP Bit OC_2LEV_OP Bits LOW_T_OP Bit OC_BLANK_OP Bit tBLANK[3:0] Bits ECC_OFF_OP Bit FLYBACK_V[3:0] Bits T_RAMP_OP Bit PWM_OSC Bit CONTROL REGISTER BITS ECC2_DBL_ERR Bit ECC2_SNG_ERR Bit ECC1_DBL_ERR Bit ECC1_SNG_ERR Bit PROG_BUSY Bit SIM_TRIM Bit PROPAGATION DELAY RELATED PARAMETERS PROTECTION FEATURES Primary Side UVLO Fault Reporting Overcurrent Detection High Speed, Two-Level, Turn Off Miller Clamp Desaturation Detection Thermal Shutdown Isolated Temperature Sensor POWER DISSIPATION INSULATION LIFETIME DC CORRECTNESS AND MAGNETIC FIELD IMMUNITY TYPICAL APPLICATION CIRCUIT OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
