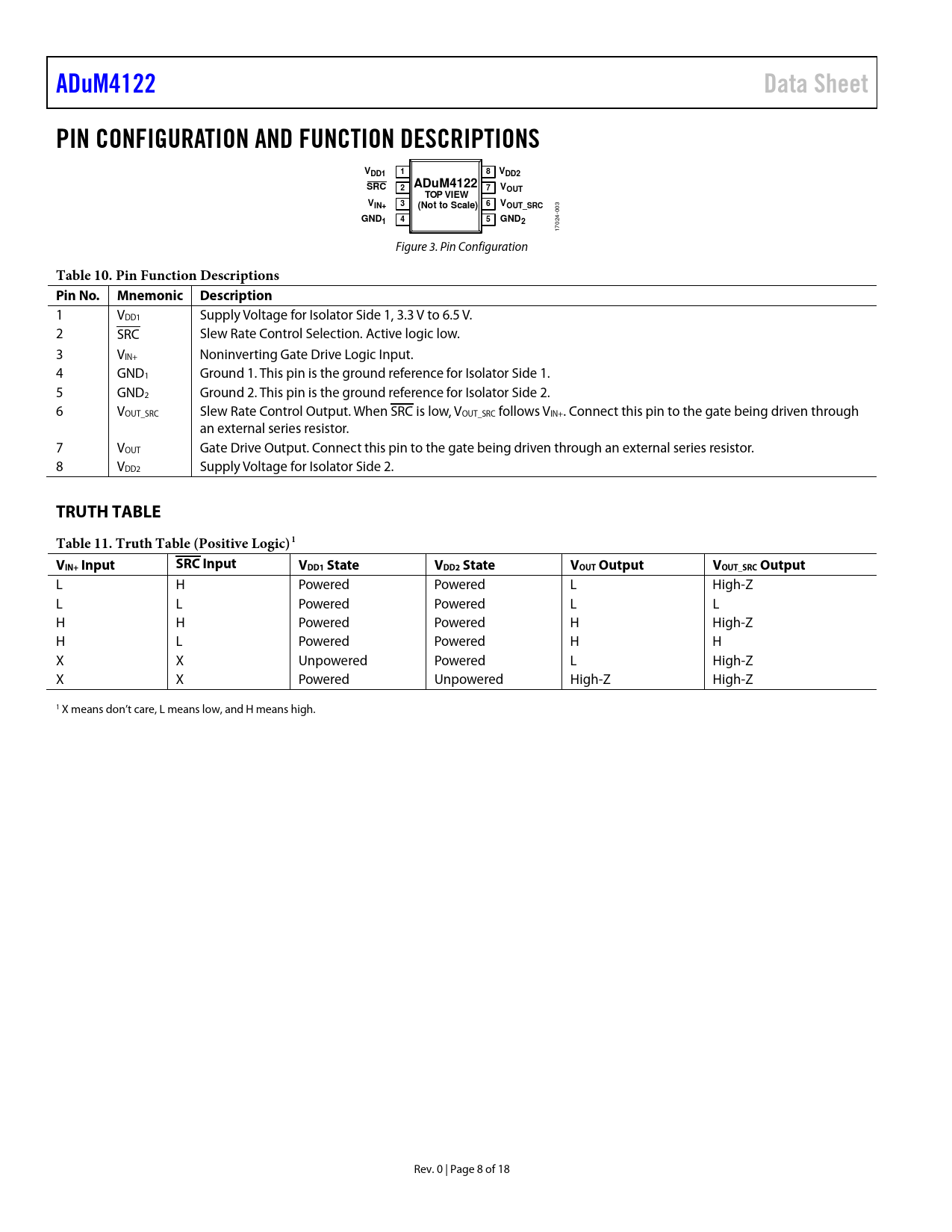

ADuM4122 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS V 1 8 DD1 VDD2 SRC 2 ADuM4122 7 VOUT TOP VIEW V 3 6 IN+ (Not to Scale) VOUT_SRC
003
GND 4 5 1 GND2
17024- Figure 3. Pin Configuration
Table 10. Pin Function Descriptions Pin No. Mnemonic Description
1 VDD1 Supply Voltage for Isolator Side 1, 3.3 V to 6.5 V. 2 SRC Slew Rate Control Selection. Active logic low. 3 VIN+ Noninverting Gate Drive Logic Input. 4 GND1 Ground 1. This pin is the ground reference for Isolator Side 1. 5 GND2 Ground 2. This pin is the ground reference for Isolator Side 2. 6 VOUT_SRC Slew Rate Control Output. When SRC is low, VOUT_SRC follows VIN+. Connect this pin to the gate being driven through an external series resistor. 7 VOUT Gate Drive Output. Connect this pin to the gate being driven through an external series resistor. 8 VDD2 Supply Voltage for Isolator Side 2.
TRUTH TABLE Table 11. Truth Table (Positive Logic)1 VIN+ Input SRC Input VDD1 State VDD2 State VOUT Output VOUT_SRC Output
L H Powered Powered L High-Z L L Powered Powered L L H H Powered Powered H High-Z H L Powered Powered H H X X Unpowered Powered L High-Z X X Powered Unpowered High-Z High-Z 1 X means don’t care, L means low, and H means high. Rev. 0 | Page 8 of 18 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Electrical Specifications Regulatory Information Package Specifications Insulation and Safety Specifications DIN V VDE V 0884-10 (VDE V 0884-10) Insulation Characteristics Recommended Operating Conditions Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Truth Table Typical Performance Characteristics Theory of Operation Applications Information PCB Layout Slew Rate Control Propagation Delay-Related Parameters Peak Current Rating Undervoltage Lockout Output Load Characteristics Power Dissipation Insulation Lifetime Typical Applications Outline Dimensions Ordering Guide
