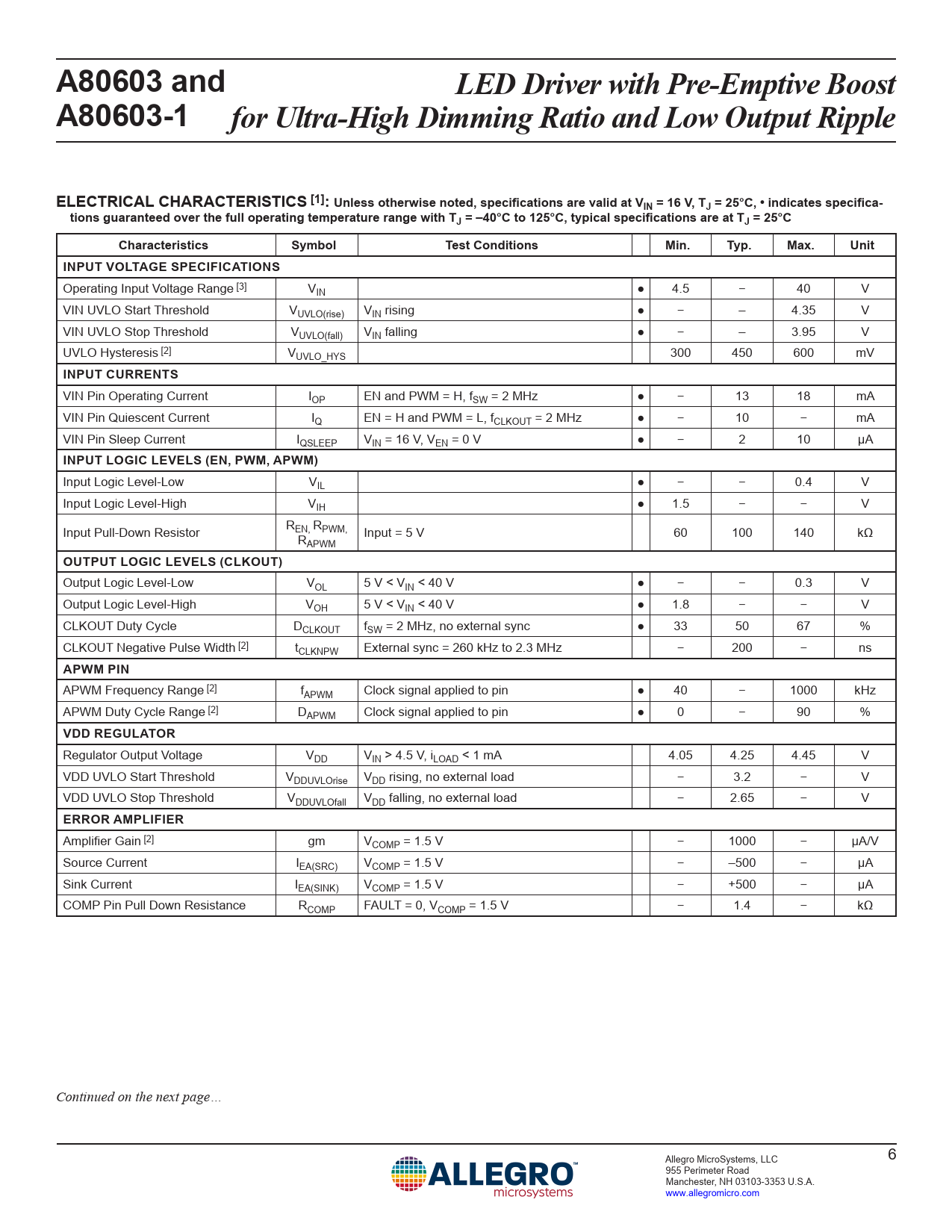

A80603 and LED Driver with Pre-Emptive Boost A80603-1 for Ultra-High Dimming Ratio and Low Output Ripple ELECTRICAL CHARACTERISTICS [1]: Unless otherwise noted, specifications are valid at VIN = 16 V, TJ = 25°C, • indicates specifica- tions guaranteed over the full operating temperature range with TJ = –40°C to 125°C, typical specifications are at TJ = 25°C Characteristics Symbol Test Conditions Min. Typ. Max. Unit INPUT VOLTAGE SPECIFICATIONS
Operating Input Voltage Range [3] VIN ● 4.5 − 40 V VIN UVLO Start Threshold VUVLO(rise) VIN rising ● − – 4.35 V VIN UVLO Stop Threshold VUVLO(fall) VIN falling ● − – 3.95 V UVLO Hysteresis [2] VUVLO_HYS 300 450 600 mV
