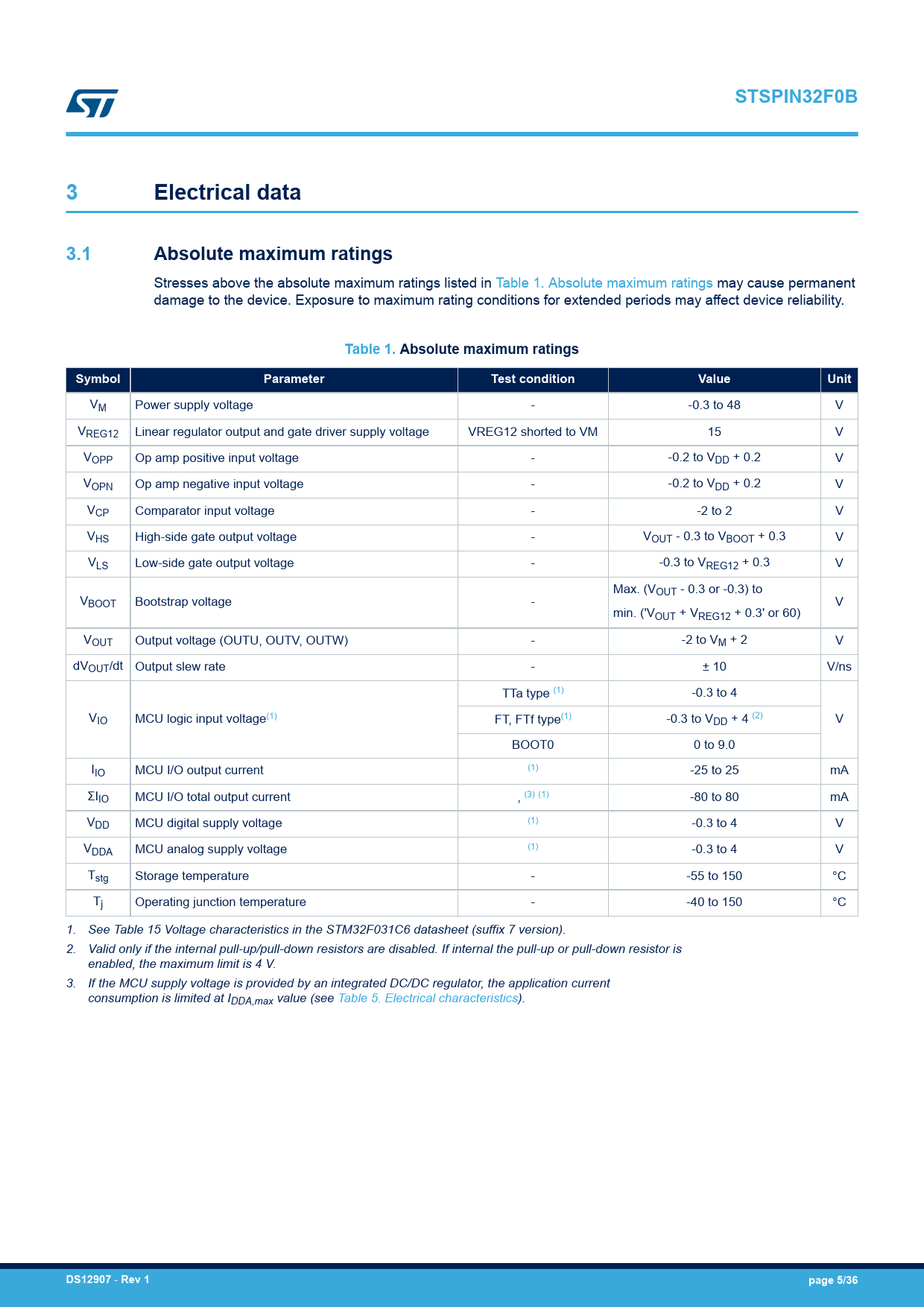

STSPIN32F0B 3 Electrical data 3.1 Absolute maximum ratings
Stresses above the absolute maximum ratings listed in Table 1. Absolute maximum ratings may cause permanent damage to the device. Exposure to maximum rating conditions for extended periods may affect device reliability.
Table 1. Absolute maximum ratings Symbol Parameter Test condition Value Unit
VM Power supply voltage - -0.3 to 48 V VREG12 Linear regulator output and gate driver supply voltage VREG12 shorted to VM 15 V VOPP Op amp positive input voltage - -0.2 to VDD + 0.2 V VOPN Op amp negative input voltage - -0.2 to VDD + 0.2 V VCP Comparator input voltage - -2 to 2 V VHS High-side gate output voltage - VOUT - 0.3 to VBOOT + 0.3 V VLS Low-side gate output voltage - -0.3 to VREG12 + 0.3 V Max. (VOUT - 0.3 or -0.3) to VBOOT Bootstrap voltage - V min. ('VOUT + VREG12 + 0.3' or 60) VOUT Output voltage (OUTU, OUTV, OUTW) - -2 to VM + 2 V dVOUT/dt Output slew rate - ± 10 V/ns TTa type (1) -0.3 to 4 VIO MCU logic input voltage(1) FT, FTf type(1) -0.3 to VDD + 4 (2) V BOOT0 0 to 9.0 IIO MCU I/O output current (1) -25 to 25 mA ΣIIO MCU I/O total output current , (3) (1) -80 to 80 mA VDD MCU digital supply voltage (1) -0.3 to 4 V VDDA MCU analog supply voltage (1) -0.3 to 4 V Tstg Storage temperature - -55 to 150 °C Tj Operating junction temperature - -40 to 150 °C 1. See Table 15 Voltage characteristics in the STM32F031C6 datasheet (suffix 7 version). 2. Valid only if the internal pull-up/pull-down resistors are disabled. If internal the pull-up or pull-down resistor is enabled, the maximum limit is 4 V. 3. If the MCU supply voltage is provided by an integrated DC/DC regulator, the application current consumption is limited at IDDA,max value (see Table 5. Electrical characteristics).
DS12907
-
Rev 1 page 5/36
Document Outline 1 Description 2 Block diagrams 3 Electrical data 3.1 Absolute maximum ratings 3.2 ESD protections 3.3 Recommended operating conditions 3.4 Thermal data 4 Electrical characteristics 5 Pin description 6 Device description 6.1 UVLO and thermal protections 6.1.1 UVLO on supply voltages 6.1.2 Thermal protection 6.2 DC/DC buck regulator 6.2.1 External optional 3.3 V supply voltage 6.3 Linear regulator 6.4 Standby mode 6.5 Gate drivers 6.6 Microcontroller unit 6.6.1 Memories and boot mode 6.6.2 Power management 6.6.3 High-speed external clock source 6.6.4 Advanced-control timer (TIM1) 6.7 Test mode 6.8 Operational amplifier 6.9 Comparator 6.10 ESD protection strategy 7 Application example 8 Package information 8.1 VFQFPN48 7 x 7 package information Revision history Contents List of tables List of figures
