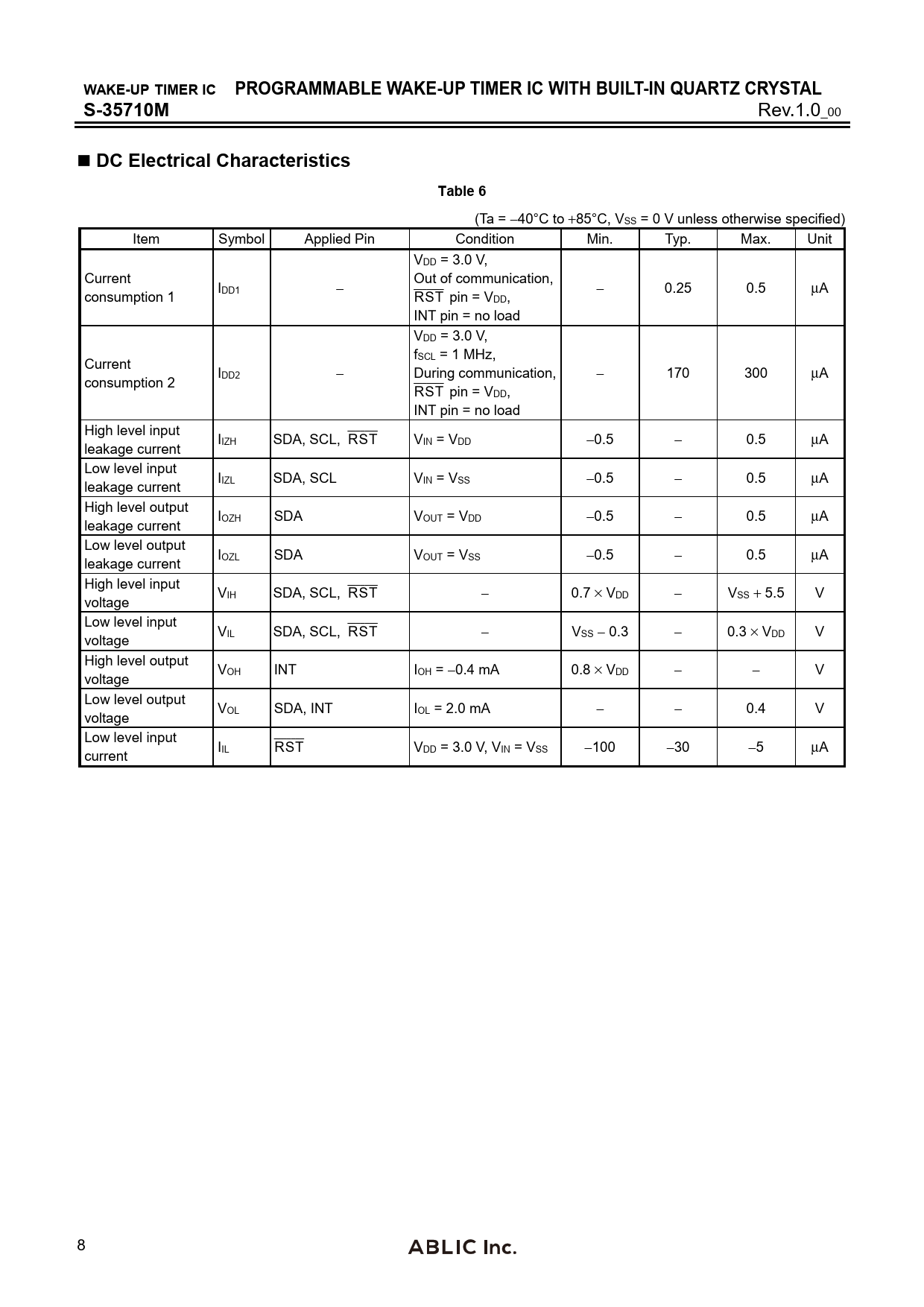

WAKE-UP TIMER IC PROGRAMMABLE WAKE-UP TIMER IC WITH BUILT-IN QUARTZ CRYSTAL S-35710M Rev.1.0_00 DC Electrical CharacteristicsTable 6 (Ta = −40°C to +85°C, VSS = 0 V unless otherwise specified) Item Symbol Applied Pin Condition Min. Typ. Max. Unit VDD = 3.0 V, Current Out of communication, I _______ − 0.25 0.5 μA consumption 1 DD1 − RST pin = V DD, INT pin = no load VDD = 3.0 V, f Current SCL = 1 MHz, I During communication, − 170 300 μA consumption 2 DD2 − _______ RST pin = V DD, INT pin = no load High level input _______ I V leakage current IZH SDA, SCL, RST IN = VDD −0.5 − 0.5 μA Low level input I leakage current IZL SDA, SCL VIN = VSS −0.5 − 0.5 μA High level output I leakage current OZH SDA VOUT = VDD −0.5 − 0.5 μA Low level output I leakage current OZL SDA VOUT = VSS −0.5 − 0.5 μA High level input _______ V − 0.7 × V voltage IH SDA, SCL, RST DD − VSS + 5.5 V Low level input _______ V − V voltage IL SDA, SCL, RST SS − 0.3 − 0.3 × VDD V High level output V voltage OH INT IOH = −0.4 mA 0.8 × VDD − − V Low level output V voltage OL SDA, INT IOL = 2.0 mA − − 0.4 V Low level input _______ I V current IL RST DD = 3.0 V, VIN = VSS −100 −30 −5 μA 8
