Datasheet RP516x (Ricoh) - 5
| Hersteller | Ricoh |
| Beschreibung | 0.3V Low Output Voltage Low Quiescent Current 100mA Buck DC/DC Converter |
| Seiten / Seite | 30 / 5 — RP516x. RP516K [DFN(PLP)2527-10] Pin Descriptions. Pin No. Symbol. … |
| Dateiformat / Größe | PDF / 2.3 Mb |
| Dokumentensprache | Englisch |
RP516x. RP516K [DFN(PLP)2527-10] Pin Descriptions. Pin No. Symbol. Description. RP516H (SOT-89-5) Pin Descriptions
Modelllinie für dieses Datenblatt
- RP516H031A-T1-FE RP516H031B-T1-FE RP516H041A-T1-FE RP516H041B-T1-FE RP516H051A-T1-FE RP516H051B-T1-FE RP516H061A-T1-FE RP516H061B-T1-FE RP516H071A-T1-FE RP516H071B-T1-FE RP516H081A-T1-FE RP516H081B-T1-FE RP516H091A-T1-FE RP516H091B-T1-FE RP516H101A-T1-FE RP516H101B-T1-FE RP516H111A-T1-FE RP516H111B-T1-FE RP516H121A-T1-FE RP516H121B-T1-FE RP516K031A-TR RP516K031B-TR RP516K041A-TR RP516K041B-TR RP516K051A-TR RP516K051B-TR RP516K061A-TR RP516K061B-TR RP516K071A-TR RP516K071B-TR RP516K081A-TR RP516K081B-TR RP516K091A-TR RP516K091B-TR RP516K101A-TR RP516K101B-TR RP516K111A-TR RP516K111B-TR RP516K121A-TR RP516K121B-TR RP516Z031A-TR-F RP516Z031B-TR-F RP516Z041A-TR-F RP516Z041B-TR-F RP516Z051A-TR-F RP516Z051B-TR-F RP516Z061A-TR-F RP516Z061B-TR-F RP516Z071A-TR-F RP516Z071B-TR-F RP516Z081A-TR-F RP516Z081B-TR-F RP516Z091A-TR-F RP516Z091B-TR-F RP516Z101A-TR-F RP516Z101B-TR-F RP516Z111A-TR-F RP516Z111B-TR-F RP516Z121A-TR-F RP516Z121B-TR-F
Textversion des Dokuments
RP516x
No.EA-518-190325

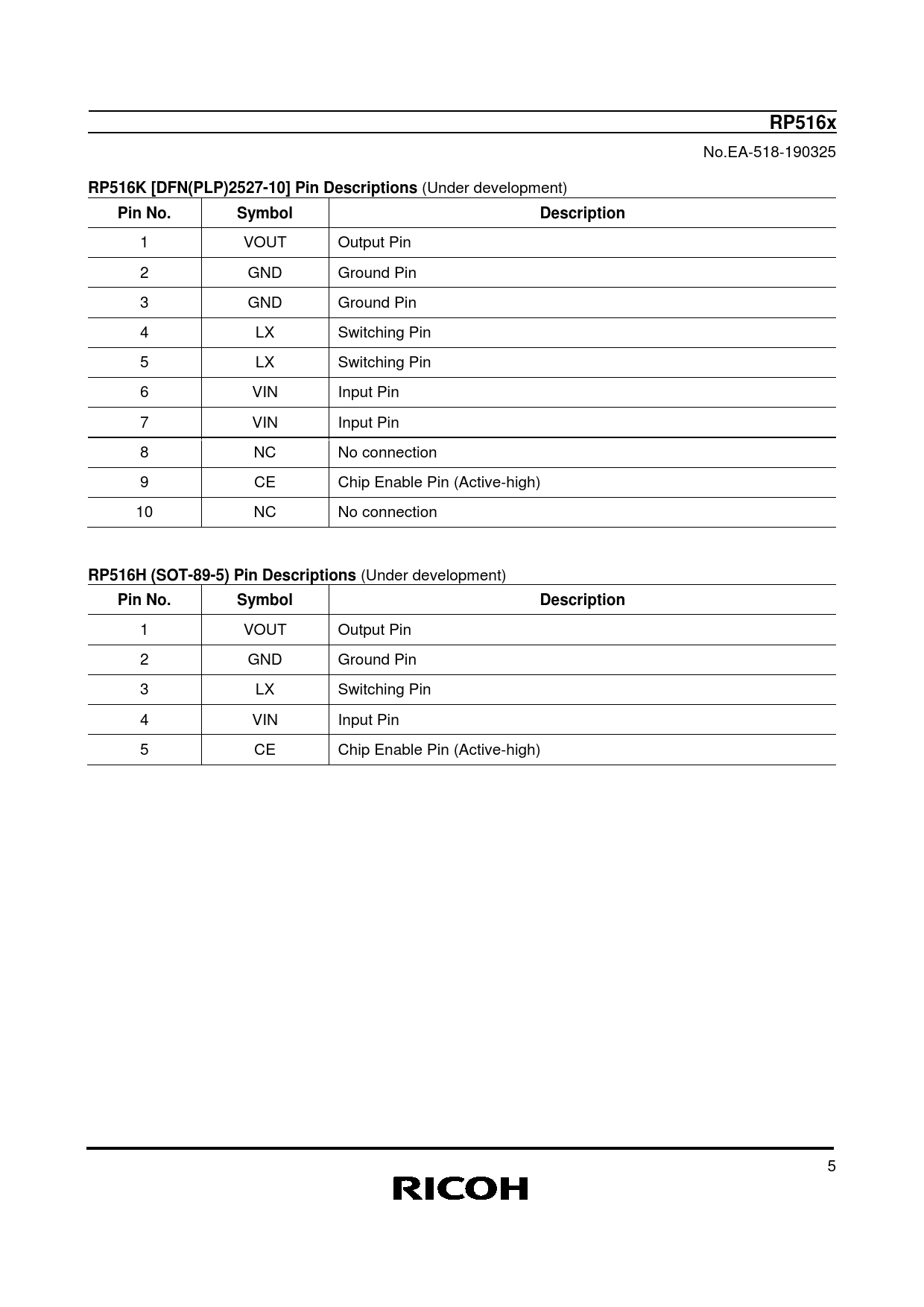

RP516K [DFN(PLP)2527-10] Pin Descriptions
(Under development)
Pin No. Symbol Description
1 VOUT Output Pin 2 GND Ground Pin 3 GND Ground Pin 4 LX Switching Pin 5 LX Switching Pin 6 VIN Input Pin 7 VIN Input Pin 8 NC No connection 9 CE Chip Enable Pin (Active-high) 10 NC No connection
RP516H (SOT-89-5) Pin Descriptions
(Under development)
Pin No. Symbol Description
1 VOUT Output Pin 2 GND Ground Pin 3 LX Switching Pin 4 VIN Input Pin 5 CE Chip Enable Pin (Active-high) 5
No.EA-518-190325
RP516K [DFN(PLP)2527-10] Pin Descriptions
(Under development)
Pin No. Symbol Description
1 VOUT Output Pin 2 GND Ground Pin 3 GND Ground Pin 4 LX Switching Pin 5 LX Switching Pin 6 VIN Input Pin 7 VIN Input Pin 8 NC No connection 9 CE Chip Enable Pin (Active-high) 10 NC No connection
RP516H (SOT-89-5) Pin Descriptions
(Under development)
Pin No. Symbol Description
1 VOUT Output Pin 2 GND Ground Pin 3 LX Switching Pin 4 VIN Input Pin 5 CE Chip Enable Pin (Active-high) 5
