R1525x
NO. EA-520-190109 The specifications surrounded by are guaranteed by design engineering at -40°C ≤ Ta ≤ 105°C.
R152
5

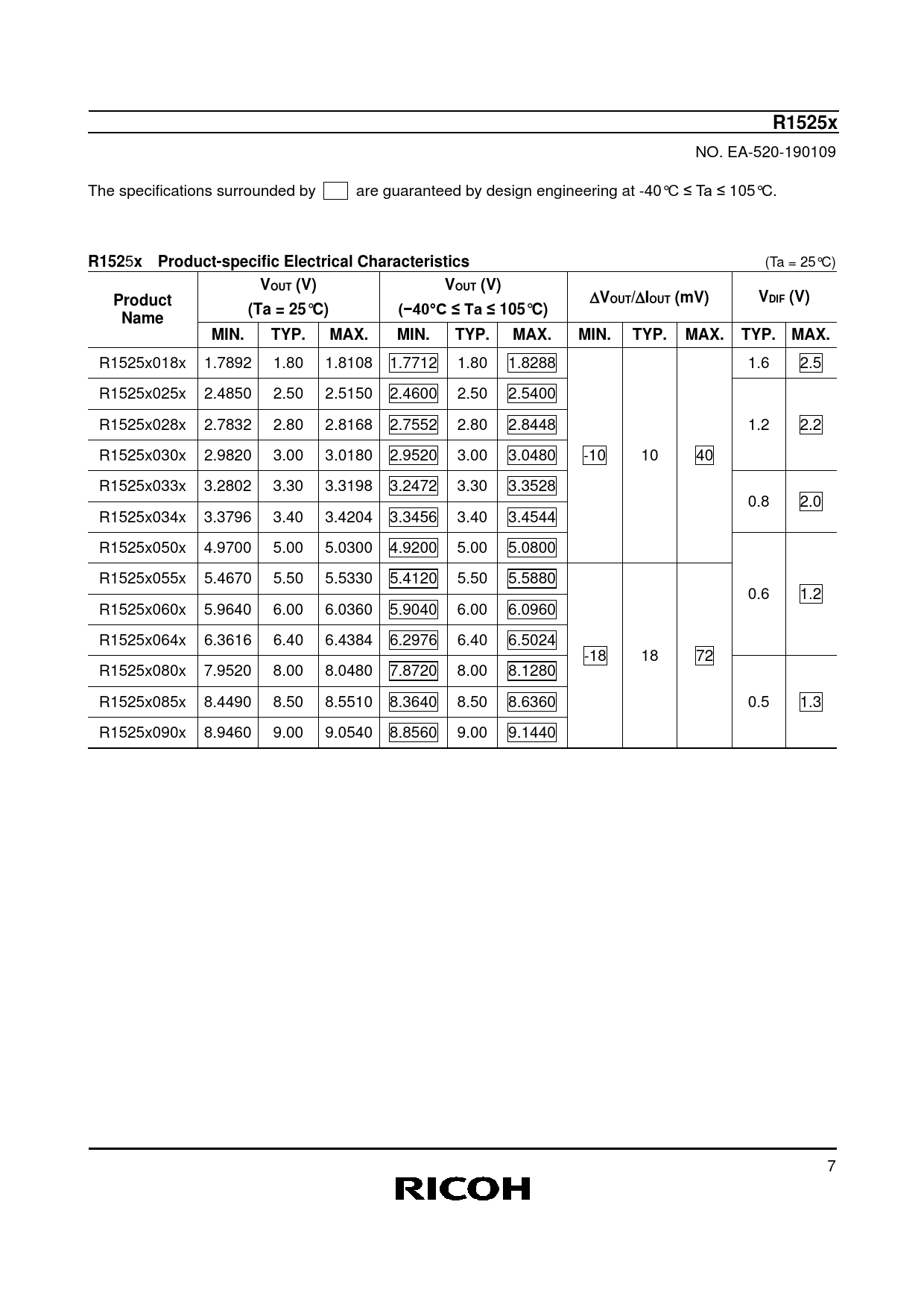

x Product-specific Electrical Characteristics
(Ta = 25°C)
VOUT (V) VOUT (V) Product
∆
VOUT/
∆
IOUT (mV) VDIF (V) (Ta = 25°C) (−40°C ≤ Ta ≤ 105°C) Name MIN. TYP. MAX. MIN. TYP. MAX. MIN. TYP. MAX. TYP. MAX.
R1525x018x 1.7892 1.80 1.8108 1.7712 1.80 1.8288 1.6 2.5 R1525x025x 2.4850 2.50 2.5150 2.4600 2.50 2.5400 R1525x028x 2.7832 2.80 2.8168 2.7552 2.80 2.8448 1.2 2.2 R1525x030x 2.9820 3.00 3.0180 2.9520 3.00 3.0480 -10 10 40 R1525x033x 3.2802 3.30 3.3198 3.2472 3.30 3.3528 0.8 2.0 R1525x034x 3.3796 3.40 3.4204 3.3456 3.40 3.4544 R1525x050x 4.9700 5.00 5.0300 4.9200 5.00 5.0800 R1525x055x 5.4670 5.50 5.5330 5.4120 5.50 5.5880 0.6 1.2 R1525x060x 5.9640 6.00 6.0360 5.9040 6.00 6.0960 R1525x064x 6.3616 6.40 6.4384 6.2976 6.40 6.5024 -18 18 72 R1525x080x 7.9520 8.00 8.0480 7.8720 8.00 8.1280 R1525x085x 8.4490 8.50 8.5510 8.3640 8.50 8.6360 0.5 1.3 R1525x090x 8.9460 9.00 9.0540 8.8560 9.00 9.1440 7
