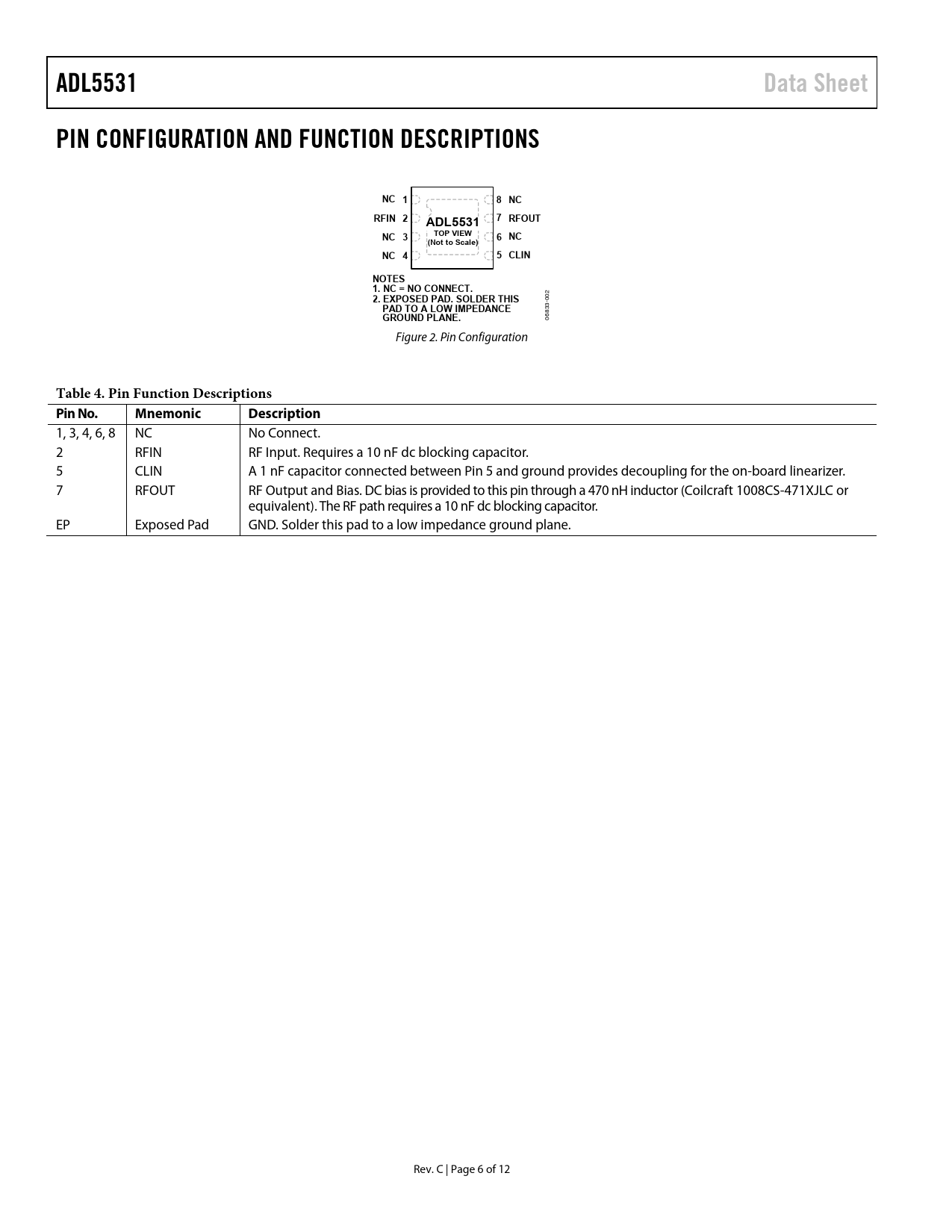

ADL5531. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. NC 1. 8 NC. RFIN 2. 7 RFOUT. NC 3. TOP VIEW. 6 NC. (Not to Scale). NC 4
Modelllinie für dieses Datenblatt
Textversion des Dokuments
ADL5531 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS NC 1 8 NC RFIN 2 7 RFOUT ADL5531 NC 3 TOP VIEW 6 NC (Not to Scale) NC 4 5 CLIN NOTES 1. NC = NO CONNECT.
02 0
2. EXPOSED PAD. SOLDER THIS PAD TO A LOW IMPEDANCE
833-
GROUND PLANE.
06 Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1, 3, 4, 6, 8 NC No Connect. 2 RFIN RF Input. Requires a 10 nF dc blocking capacitor. 5 CLIN A 1 nF capacitor connected between Pin 5 and ground provides decoupling for the on-board linearizer. 7 RFOUT RF Output and Bias. DC bias is provided to this pin through a 470 nH inductor (Coilcraft 1008CS-471XJLC or equivalent). The RF path requires a 10 nF dc blocking capacitor. EP Exposed Pad GND. Solder this pad to a low impedance ground plane. Rev. C | Page 6 of 12 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS BASIC CONNECTIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
