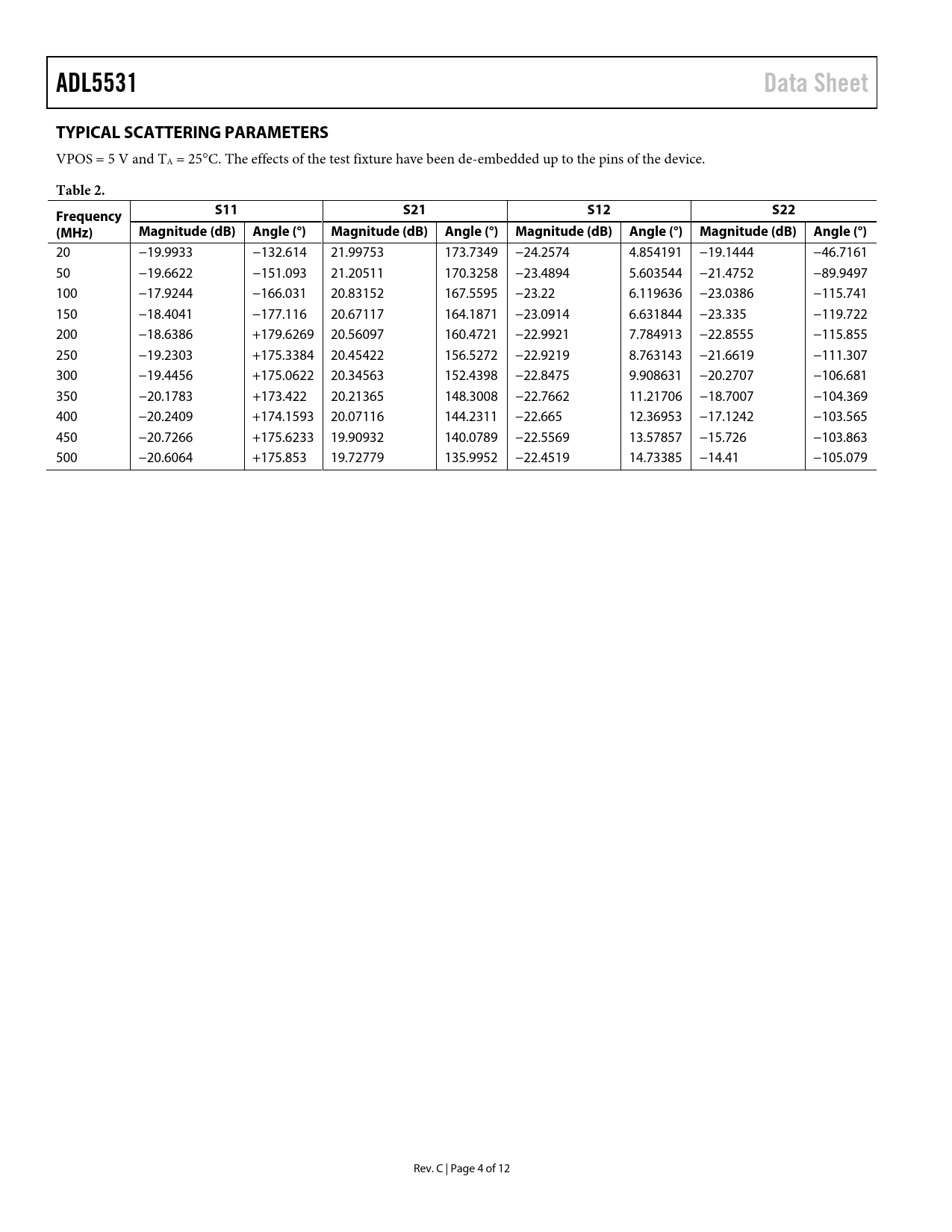

ADL5531 Data Sheet TYPICAL SCATTERING PARAMETERS
VPOS = 5 V and TA = 25°C. The effects of the test fixture have been de-embedded up to the pins of the device.
Table 2. Frequency S11 S21 S12 S22 (MHz) Magnitude (dB) Angle (°) Magnitude (dB) Angle (°) Magnitude (dB) Angle (°) Magnitude (dB) Angle (°)
20 −19.9933 −132.614 21.99753 173.7349 −24.2574 4.854191 −19.1444 −46.7161 50 −19.6622 −151.093 21.20511 170.3258 −23.4894 5.603544 −21.4752 −89.9497 100 −17.9244 −166.031 20.83152 167.5595 −23.22 6.119636 −23.0386 −115.741 150 −18.4041 −177.116 20.67117 164.1871 −23.0914 6.631844 −23.335 −119.722 200 −18.6386 +179.6269 20.56097 160.4721 −22.9921 7.784913 −22.8555 −115.855 250 −19.2303 +175.3384 20.45422 156.5272 −22.9219 8.763143 −21.6619 −111.307 300 −19.4456 +175.0622 20.34563 152.4398 −22.8475 9.908631 −20.2707 −106.681 350 −20.1783 +173.422 20.21365 148.3008 −22.7662 11.21706 −18.7007 −104.369 400 −20.2409 +174.1593 20.07116 144.2311 −22.665 12.36953 −17.1242 −103.565 450 −20.7266 +175.6233 19.90932 140.0789 −22.5569 13.57857 −15.726 −103.863 500 −20.6064 +175.853 19.72779 135.9952 −22.4519 14.73385 −14.41 −105.079 Rev. C | Page 4 of 12 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS BASIC CONNECTIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
