Datasheet ADL5534 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | 20 MHz TO 500 MHz IF Amplifier |
| Seiten / Seite | 16 / 5 — Data Sheet. ADL5534. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. … |
| Revision | B |
| Dateiformat / Größe | PDF / 435 Kb |
| Dokumentensprache | Englisch |

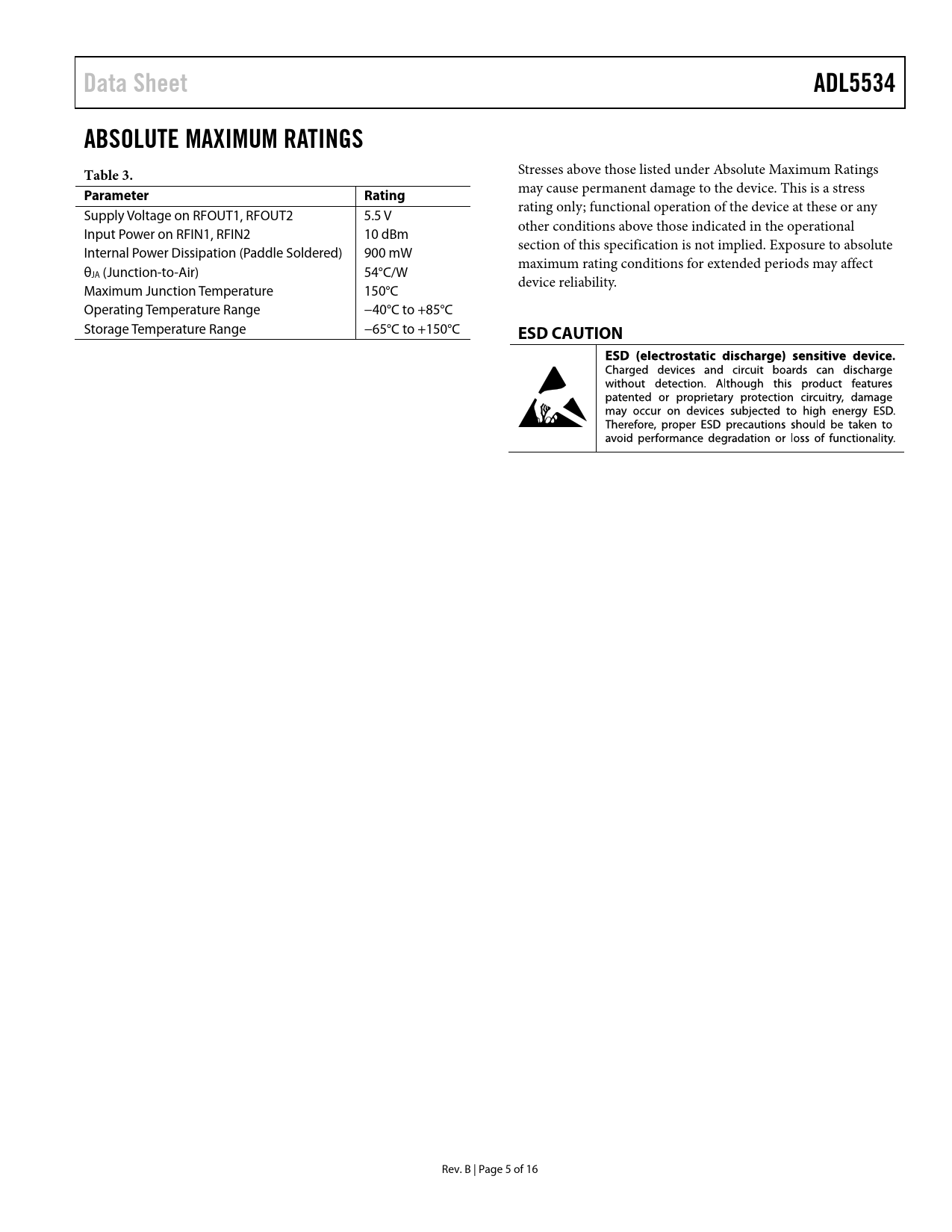

Data Sheet. ADL5534. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet ADL5534 ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage on RFOUT1, RFOUT2 5.5 V rating only; functional operation of the device at these or any other conditions above those indicated in the operational Input Power on RFIN1, RFIN2 10 dBm section of this specification is not implied. Exposure to absolute Internal Power Dissipation (Paddle Soldered) 900 mW maximum rating conditions for extended periods may affect θJA (Junction-to-Air) 54°C/W device reliability. Maximum Junction Temperature 150°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C
ESD CAUTION
Rev. B | Page 5 of 16 Document Outline Features Functional Block Diagram General Description Table of Contents Revision History Specifications Typical Scattering Parameters Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Basic Connections Using Baluns to Combine Both Amplifiers into a Single Amplifier ADC Driving Application Soldering Information and Recommended PCB Land Pattern Evaluation Board Outline Dimensions Ordering Guide
