Datasheet HMC741ST89E (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | InGaP HBT Active Bias MMIC Amplifier, 0.05 - 3 GHz |
| Seiten / Seite | 8 / 6 — HMC741ST89E. InGaP HBT ACTIVE BIAS. MMIC AMPLIFIER, 0.05 – 3 GHz. … |
| Dateiformat / Größe | PDF / 702 Kb |
| Dokumentensprache | Englisch |
HMC741ST89E. InGaP HBT ACTIVE BIAS. MMIC AMPLIFIER, 0.05 – 3 GHz. Absolute Maximum Ratings. Outline Drawing. Package Information
Modelllinie für dieses Datenblatt
Textversion des Dokuments

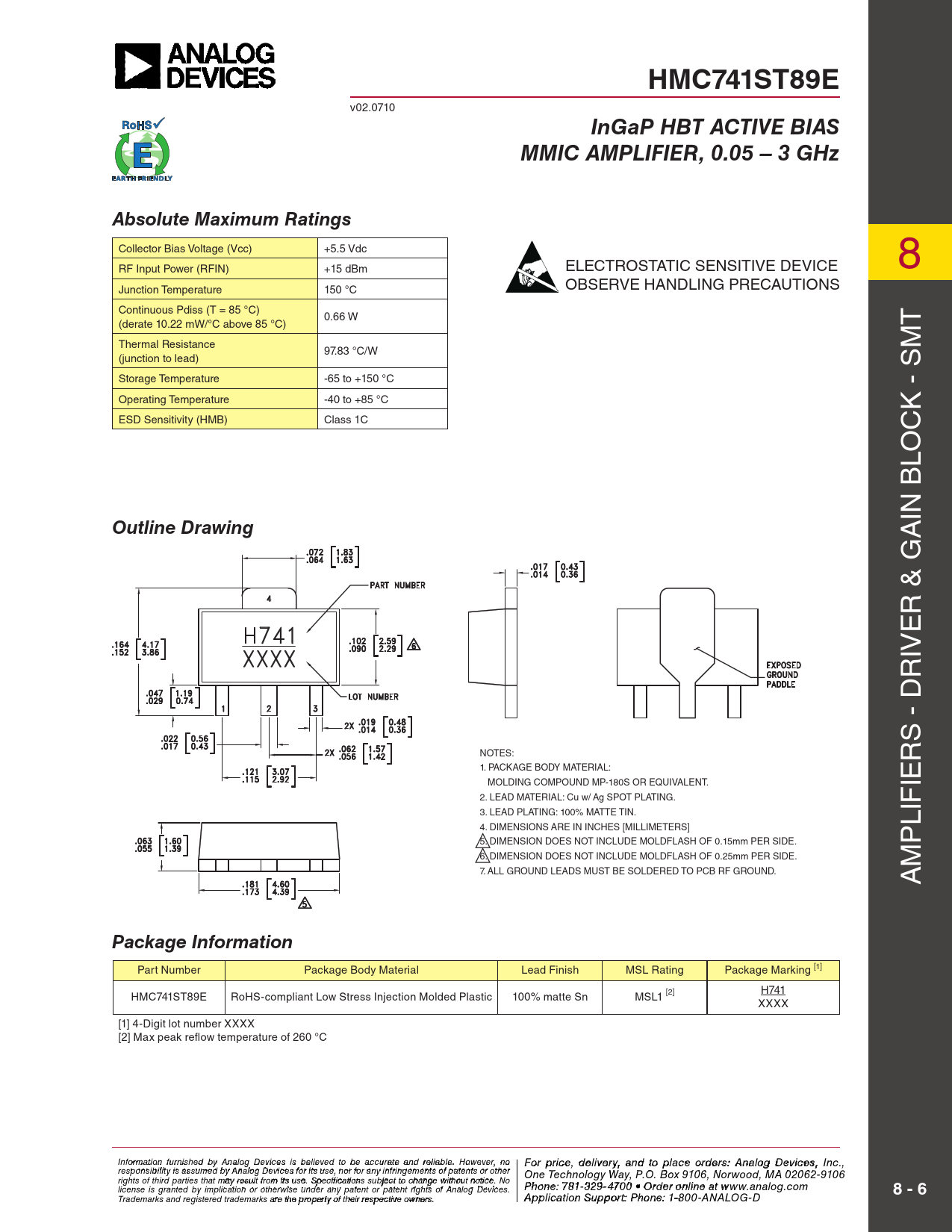

HMC741ST89E
v02.0710
InGaP HBT ACTIVE BIAS MMIC AMPLIFIER, 0.05 – 3 GHz Absolute Maximum Ratings
collector Bias voltage (vcc) +5.5 vdc rf input power (rfin) +15 dBm elecTrosTATic sensiTive Device 8 Junction Temperature 150 °c oBserve HAnDlinG precAUTions continuous pdiss (T = 85 °c) 0.66 W (derate 10.22 mW/°c above 85 °c) T Thermal resistance m 97.83 °c/W (junction to lead) s storage Temperature -65 to +150 °c operating Temperature -40 to +85 °c k - esD sensitivity (HmB) class 1c c lo in B
Outline Drawing
A r & G e iv r s - D noTes: r 1. pAckAGe BoDY mATeriAl: molDinG compoUnD mp-180s or eQUivAlenT. ie 2. leAD mATeriAl: cu w/ Ag spoT plATinG. 3. leAD plATinG: 100% mATTe Tin. 4. Dimensions Are in incHes [millimeTers] lif 5. Dimension Does noT inclUDe molDflAsH of 0.15mm per siDe. p 6. Dimension Does noT inclUDe molDflAsH of 0.25mm per siDe. m 7. All GroUnD leADs mUsT Be solDereD To pcB rf GroUnD. A
Package Information
part number package Body material lead finish msl rating package marking [1] Hmc741sT89e roHs-compliant low stress injection molded plastic 100% matte sn msl1 [2] H741 XXXX [1] 4-Digit lot number XXXX [2] max peak reflow temperature of 260 °c Inf F or o m rat ip o r n ifc ur e n ,is hd e e d lbiv y e Anry alo a g n D d evi cto es ips la beclie ev eo d rtd o e b r e sa: ccH ur iattte itaen M d reliic a r bl o e w . H a o v weev eC r, o n r o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other poration, 20 Alpha Road, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 rights of third parties that may result from its use. Specifications subject to change without notice. No Or P d hoe n r e O : 7 n- 81-li 3 n 2 e 9- a 4 t 7 0 www 0 • O . rdh e itt r o it n e li . n co e a m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. t www.analog.com
8 - 6
Application Support: Phon Trademarks and registered trademarks are the property of their respective owners. e: 978-250-334 A 3 p p liocra t ia o pp n S s u @ p h por ittti : Pte. ho c n o e m : 1-800-ANALOG-D
