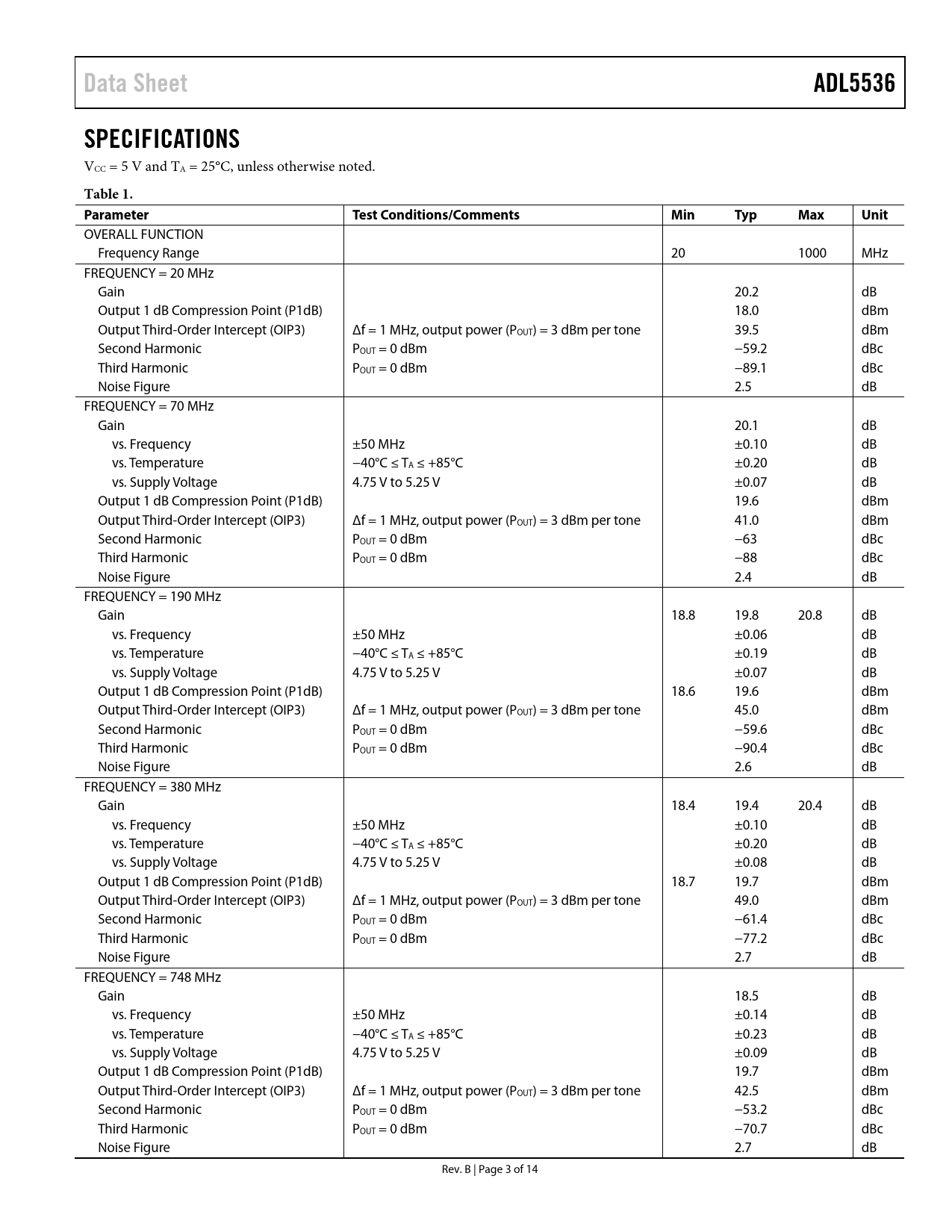

Datasheet ADL5536 (Analog Devices) - 3

Data Sheet ADL5536 SPECIFICATIONS
VCC = 5 V and TA = 25°C, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
OVERALL FUNCTION Frequency Range 20 1000 MHz FREQUENCY = 20 MHz Gain 20.2 dB Output 1 dB Compression Point (P1dB) 18.0 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 3 dBm per tone 39.5 dBm Second Harmonic POUT = 0 dBm −59.2 dBc Third Harmonic POUT = 0 dBm −89.1 dBc Noise Figure 2.5 dB FREQUENCY = 70 MHz Gain 20.1 dB vs. Frequency ±50 MHz ±0.10 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.20 dB vs. Supply Voltage 4.75 V to 5.25 V ±0.07 dB Output 1 dB Compression Point (P1dB) 19.6 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 3 dBm per tone 41.0 dBm Second Harmonic POUT = 0 dBm −63 dBc Third Harmonic POUT = 0 dBm −88 dBc Noise Figure 2.4 dB FREQUENCY = 190 MHz Gain 18.8 19.8 20.8 dB vs. Frequency ±50 MHz ±0.06 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.19 dB vs. Supply Voltage 4.75 V to 5.25 V ±0.07 dB Output 1 dB Compression Point (P1dB) 18.6 19.6 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 3 dBm per tone 45.0 dBm Second Harmonic POUT = 0 dBm −59.6 dBc Third Harmonic POUT = 0 dBm −90.4 dBc Noise Figure 2.6 dB FREQUENCY = 380 MHz Gain 18.4 19.4 20.4 dB vs. Frequency ±50 MHz ±0.10 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.20 dB vs. Supply Voltage 4.75 V to 5.25 V ±0.08 dB Output 1 dB Compression Point (P1dB) 18.7 19.7 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 3 dBm per tone 49.0 dBm Second Harmonic POUT = 0 dBm −61.4 dBc Third Harmonic POUT = 0 dBm −77.2 dBc Noise Figure 2.7 dB FREQUENCY = 748 MHz Gain 18.5 dB vs. Frequency ±50 MHz ±0.14 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.23 dB vs. Supply Voltage 4.75 V to 5.25 V ±0.09 dB Output 1 dB Compression Point (P1dB) 19.7 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 3 dBm per tone 42.5 dBm Second Harmonic POUT = 0 dBm −53.2 dBc Third Harmonic POUT = 0 dBm −70.7 dBc Noise Figure 2.7 dB Rev. B | Page 3 of 14 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS (S-PARAMETERS) ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS BASIC CONNECTIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN ACPR PERFORMANCE ERROR VECTOR MAGNITUDE (EVM) PERFORMANCE EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
