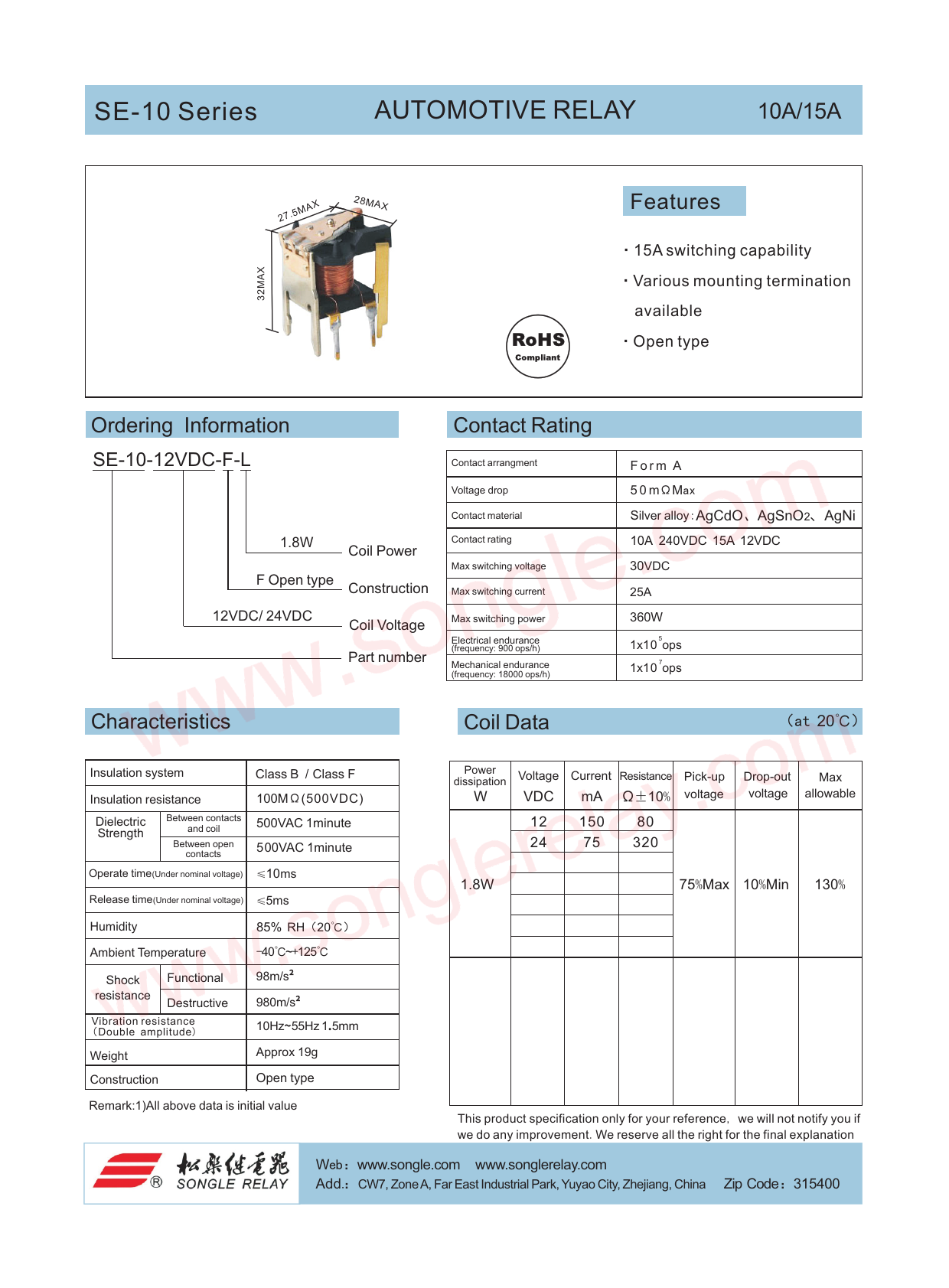

Datasheet SE-10 (Songle Relay)

SE-10 Series AUTOMOTIVE RELAY 10A/15A 28MAX Features 27.5MAX ·15A switching capability X A · M Various mounting termination 2 3 available ·Open type Ordering Information Contact Rating SE-10-12VDC-F-L Contact arrangment F o r m A Voltage drop 5 0 mΩMax Contact material Silver alloy:AgCdO、AgSnO2、AgNi Contact rating 10A 240VDC 15A 12VDC 1.8W Coil Power Max switching voltage 30VDC F Open type Construction Max switching current 25A 12VDC/ 24VDC Max switching power 360W Coil Voltage 5 Electrical endurance 1x10 ops (frequency: 900 ops/h) Part number 7 endurance Mechanical 1x10 ops (frequency: 18000 ops/h) Characteristics Coil Data （ 20 at ℃） Insulation system Class B / Class F Power Voltage Current Resistance dissipation Pick-up Drop-out Max Insulation resistance 100MΩ(500VDC) W VDC mA ± Ω 10% voltage voltage allowable Dielectric Between contacts 500VAC 1minute 12 150 80 Strength and coil Between open 500VAC 1minute 24 75 320 contacts Operate time(Under nominal voltage) ≤10ms 1.8W 75%Max 10%Min 130% Release time(Under nominal voltage) ≤5ms Humidity 85% RH（20℃） Ambient Temperature -40℃~+125℃ Functional 98m/s
²
Shock resistance Destructive 980m/s
²
Vibration resistance 10Hz
~
55Hz 1
.
5mm ( Double amplitude) Approx 19g Weight Construction Open type Remark:1)All above data is initial value This product specification only for your reference, we will not notify you if we do any improvement.We reserve all the right for the final explanation Web：www.songle.com www.songlerelay.com Add.：CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China Zip Code：315400 Document Outline 页 1 页 2
