Datasheet VOT8026AB, VOT8026AD, VOT8026AG (Vishay) - 8
| Hersteller | Vishay |
| Beschreibung | Optocoupler, Phototriac Output, Zero Crossing, High dV/dt, Low Input Current |
| Seiten / Seite | 11 / 8 — VOT8026AB, VOT8026AD, VOT8026AG. PACKAGING INFORMATION. DEVICES PER TUBE … |
| Revision | 1.1 |
| Dateiformat / Größe | PDF / 187 Kb |
| Dokumentensprache | Englisch |
VOT8026AB, VOT8026AD, VOT8026AG. PACKAGING INFORMATION. DEVICES PER TUBE TYPE. UNITS/TUBE. TUBES/BOX. UNITS/BOX. SMD-6 Tape
Modelllinie für dieses Datenblatt
Textversion des Dokuments

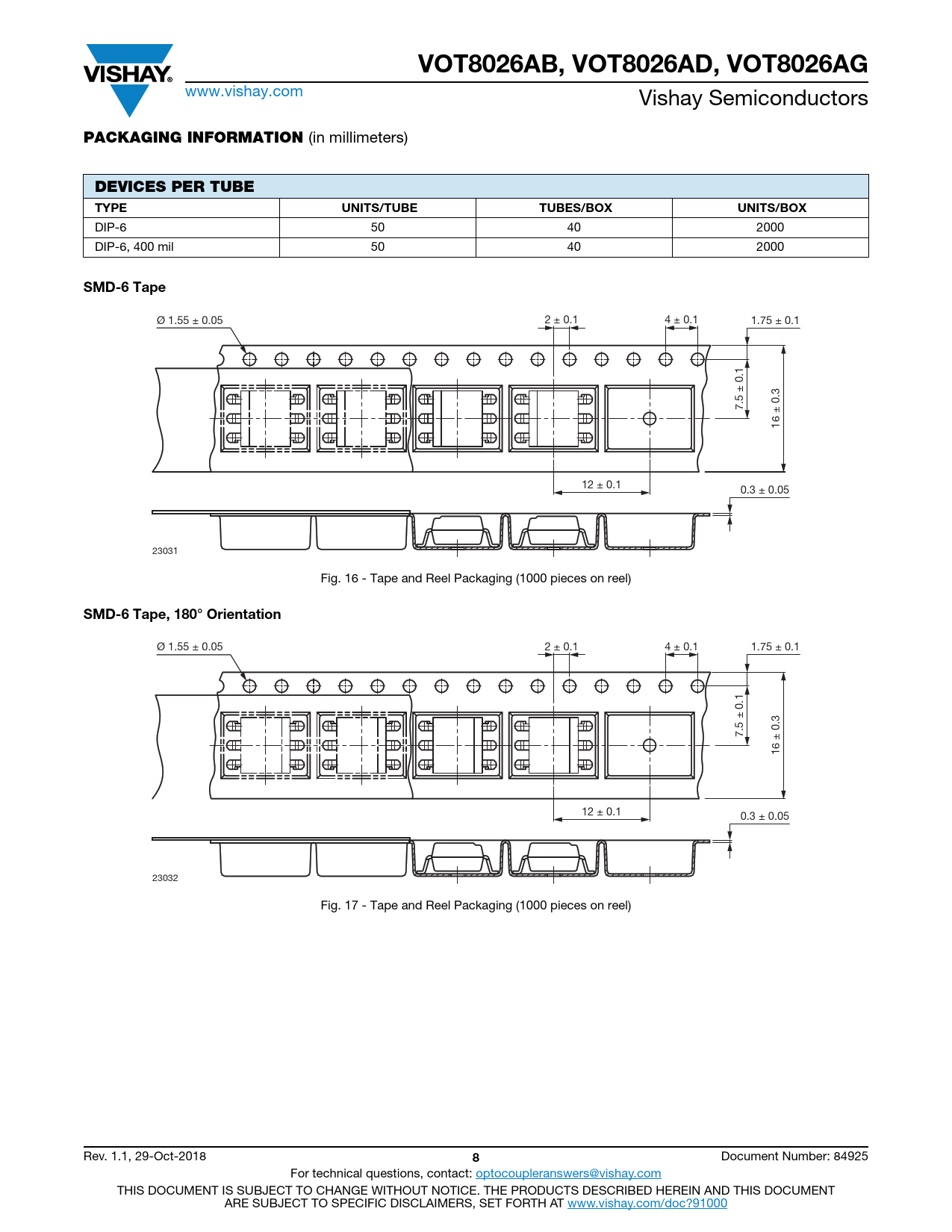

VOT8026AB, VOT8026AD, VOT8026AG
www.vishay.com Vishay Semiconductors
PACKAGING INFORMATION
(in millimeters)
DEVICES PER TUBE TYPE UNITS/TUBE TUBES/BOX UNITS/BOX
DIP-6 50 40 2000 DIP-6, 400 mil 50 40 2000
SMD-6 Tape
Ø 1.55 ± 0.05 2 ± 0.1 4 ± 0.1 1.75 ± 0.1 7.5 ± 0.1 16 ± 0.3 12 ± 0.1 0.3 ± 0.05 23031 Fig. 16 - Tape and Reel Packaging (1000 pieces on reel)
SMD-6 Tape, 180° Orientation
Ø 1.55 ± 0.05 2 ± 0.1 4 ± 0.1 1.75 ± 0.1 7.5 ± 0.1 16 ± 0.3 12 ± 0.1 0.3 ± 0.05 23032 Fig. 17 - Tape and Reel Packaging (1000 pieces on reel) Rev. 1.1, 29-Oct-2018
8
Document Number: 84925 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay Semiconductors
PACKAGING INFORMATION
(in millimeters)
DEVICES PER TUBE TYPE UNITS/TUBE TUBES/BOX UNITS/BOX
DIP-6 50 40 2000 DIP-6, 400 mil 50 40 2000
SMD-6 Tape
Ø 1.55 ± 0.05 2 ± 0.1 4 ± 0.1 1.75 ± 0.1 7.5 ± 0.1 16 ± 0.3 12 ± 0.1 0.3 ± 0.05 23031 Fig. 16 - Tape and Reel Packaging (1000 pieces on reel)
SMD-6 Tape, 180° Orientation
Ø 1.55 ± 0.05 2 ± 0.1 4 ± 0.1 1.75 ± 0.1 7.5 ± 0.1 16 ± 0.3 12 ± 0.1 0.3 ± 0.05 23032 Fig. 17 - Tape and Reel Packaging (1000 pieces on reel) Rev. 1.1, 29-Oct-2018
8
Document Number: 84925 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
