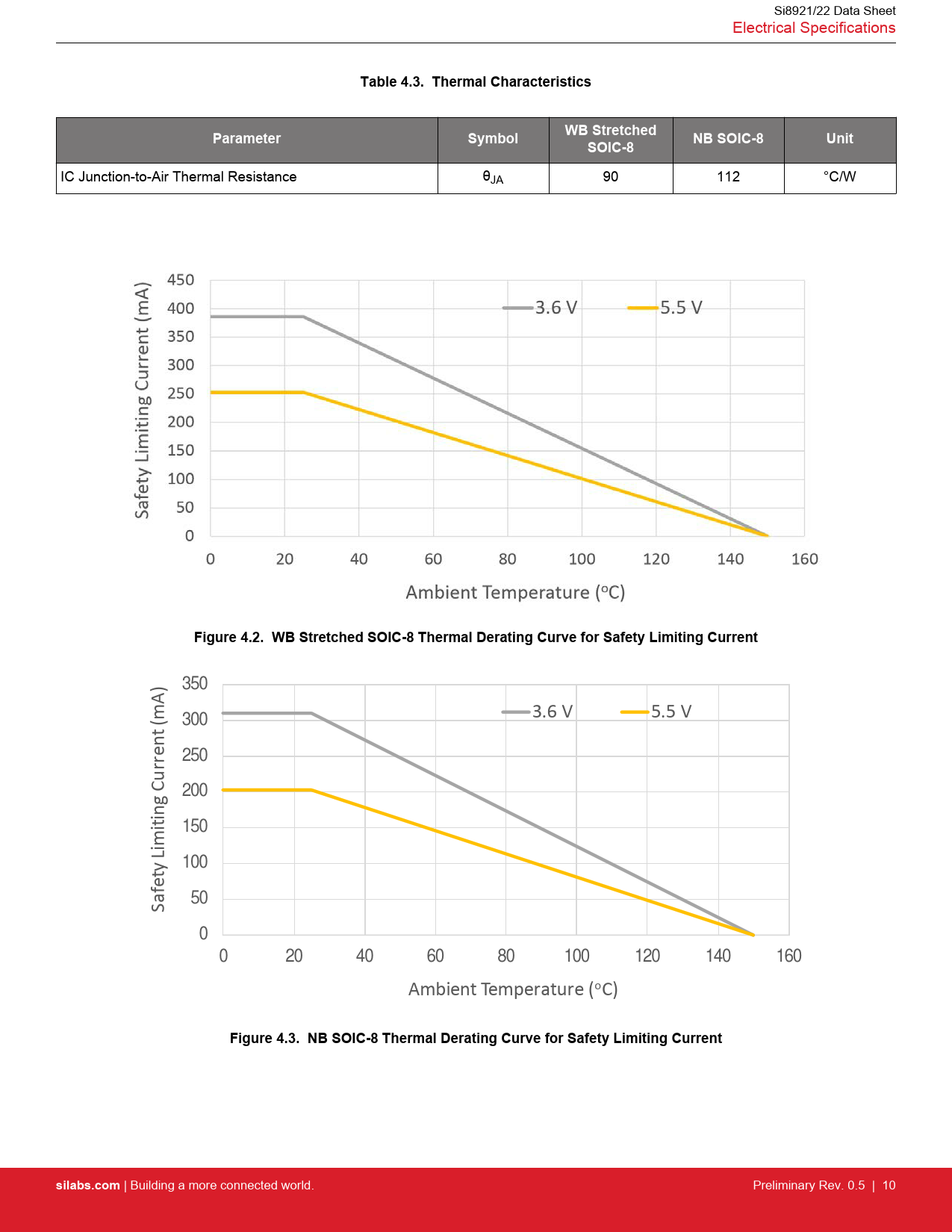

Si8921/22 Data Sheet Electrical Specifications
Table 4.3. Thermal Characteristics WB Stretched Parameter Symbol NB SOIC-8 Unit SOIC-8
IC Junction-to-Air Thermal Resistance θJA 90 112 °C/W
Figure 4.2. WB Stretched SOIC-8 Thermal Derating Curve for Safety Limiting Current
350 A) 3.6 V 5.5 V 300 250 200 iting Current (m 150 100 50 Safety Lim 0 0 20 40 60 80 100 120 140 160 Ambient Temperature (oC)
Figure 4.3. NB SOIC-8 Thermal Derating Curve for Safety Limiting Current silabs.com
