Datasheet DGTD65T15H2TF (Diodes)
| Hersteller | Diodes |
| Beschreibung | 650V Field Stop IGBT |
| Seiten / Seite | 9 / 1 — DGTD65T15H2TF. Green. 650V FIELD STOP IGBT IN ITO220AB. Description. … |
| Dateiformat / Größe | PDF / 1.8 Mb |
| Dokumentensprache | Englisch |
DGTD65T15H2TF. Green. 650V FIELD STOP IGBT IN ITO220AB. Description. Features. Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

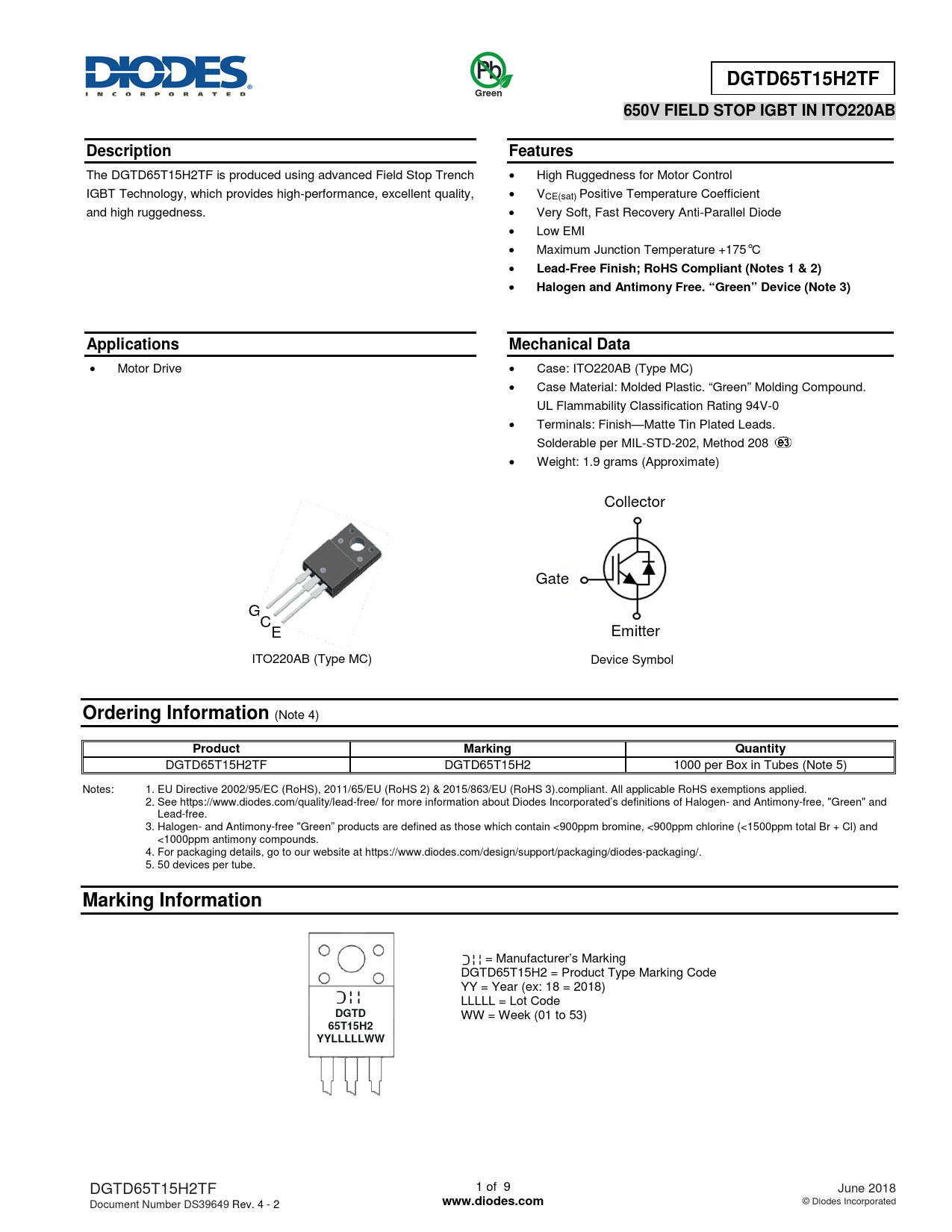

DGTD65T15H2TF Green 650V FIELD STOP IGBT IN ITO220AB Description Features
The DGTD65T15H2TF is produced using advanced Field Stop Trench • High Ruggedness for Motor Control IGBT Technology, which provides high-performance, excellent quality, • VCE(sat) Positive Temperature Coefficient and high ruggedness. • Very Soft, Fast Recovery Anti-Parallel Diode • Low EMI • Maximum Junction Temperature +175°C •
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3) Applications Mechanical Data
• Motor Drive • Case: ITO220AB (Type MC) • Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Classification Rating 94V-0 • Terminals: Finish—Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208 • Weight: 1.9 grams (Approximate) Collector Gate G C E Emitter ITO220AB (Type MC) Device Symbol
Ordering Information
(Note 4)
Product Marking Quantity
DGTD65T15H2TF DGTD65T15H2 1000 per Box in Tubes (Note 5) Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3).compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/. 5. 50 devices per tube.
Marking Information
= Manufacturer’s Marking DGTD65T15H2 = Product Type Marking Code YY = Year (ex: 18 = 2018) LLLLL = Lot Code
DGTD
WW = Week (01 to 53)
65T15H2 YYLLLLLWW
DGTD65T15H2TF 1 of 9 June 2018 Document Number DS39649 Rev. 4 - 2
www.diodes.com
© Diodes Incorporated Document Outline Features Description Mechanical Data Characteristic Symbol Value Unit Characteristic Applications Ordering Information (Note 4) Marking Information Typical Performance Characteristics (@TA = +25 C, unless otherwise specified.) Typical Performance Characteristics (@TA = +25 C, unless otherwise specified.) (continued) Typical Performance Characteristics (@TA = +25 C, unless otherwise specified.) (cont.) Package Outline Dimensions
