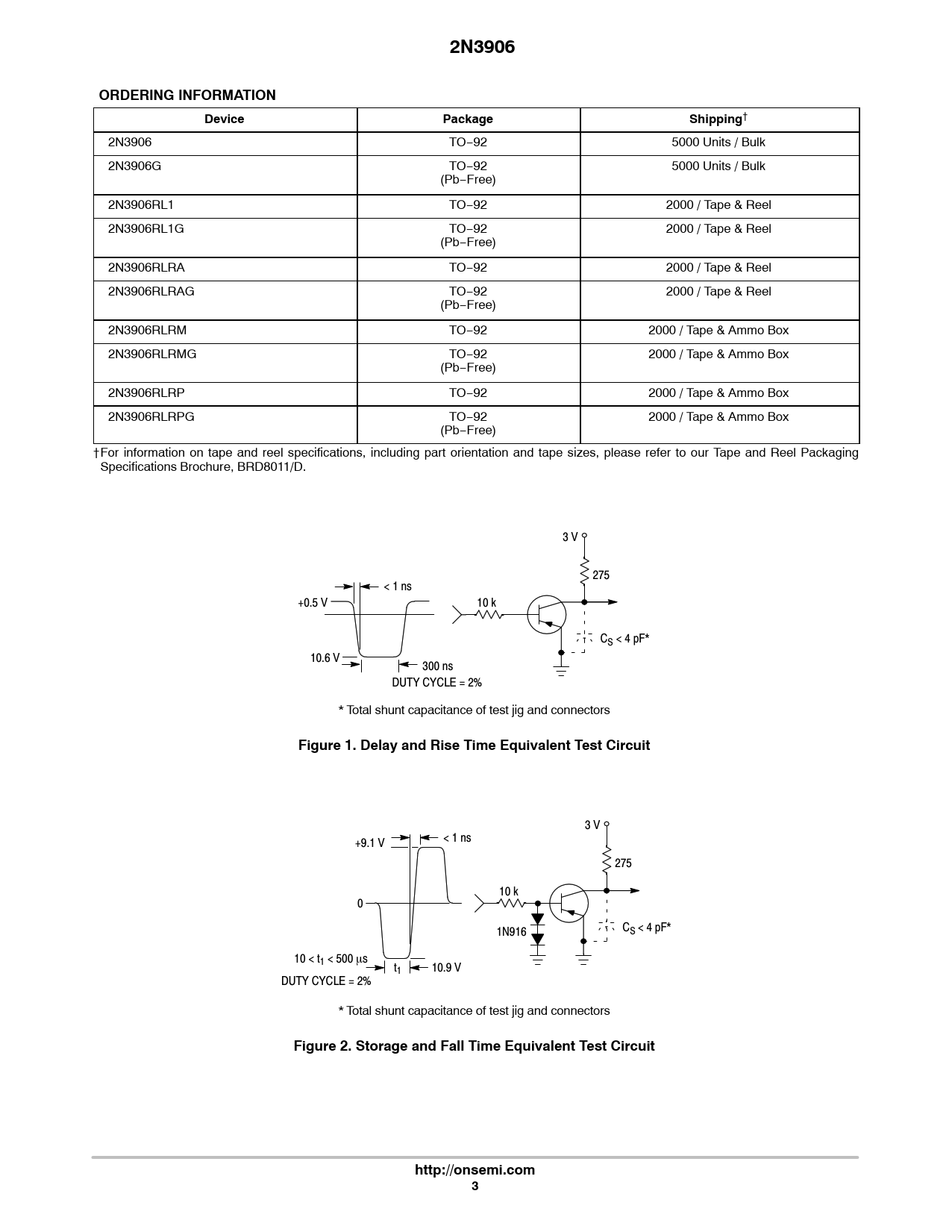

Datasheet 2N3906 (ON Semiconductor) - 3

2N3906 ORDERING INFORMATION Device Package Shipping
† 2N3906 TO−92 5000 Units / Bulk 2N3906G TO−92 5000 Units / Bulk (Pb−Free) 2N3906RL1 TO−92 2000 / Tape & Reel 2N3906RL1G TO−92 2000 / Tape & Reel (Pb−Free) 2N3906RLRA TO−92 2000 / Tape & Reel 2N3906RLRAG TO−92 2000 / Tape & Reel (Pb−Free) 2N3906RLRM TO−92 2000 / Tape & Ammo Box 2N3906RLRMG TO−92 2000 / Tape & Ammo Box (Pb−Free) 2N3906RLRP TO−92 2000 / Tape & Ammo Box 2N3906RLRPG TO−92 2000 / Tape & Ammo Box (Pb−Free) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. 3 V 275 < 1 ns +0.5 V 10 k CS < 4 pF* 10.6 V 300 ns DUTY CYCLE = 2% * Total shunt capacitance of test jig and connectors
Figure 1. Delay and Rise Time Equivalent Test Circuit
3 V < 1 ns +9.1 V 275 10 k 0 1N916 CS < 4 pF* 10 < t1 < 500 ms t 10.9 V 1 DUTY CYCLE = 2% * Total shunt capacitance of test jig and connectors
Figure 2. Storage and Fall Time Equivalent Test Circuit http://onsemi.com 3
