Datasheet TCR5BM (Toshiba) - 7
| Hersteller | Toshiba |
| Beschreibung | Low Dropout (LDO) Linear Voltage Regulator |
| Seiten / Seite | 11 / 7 — TCR5BM series. Application Note. 1. Example of Application Circuit. … |
| Dateiformat / Größe | PDF / 719 Kb |
| Dokumentensprache | Englisch |
TCR5BM series. Application Note. 1. Example of Application Circuit. VBIAS. CONTROL. Output. voltage. HIGH. ON/OFF. 0.1 μF. LOW. OFF. GND. OPEN. VIN
Modelllinie für dieses Datenblatt
- TCR5BM105A TCR5BM10A TCR5BM11A TCR5BM12A TCR5BM085A TCR5BM08A TCR5BM095A TCR5BM09A TCR5BM10 TCR5BM105 TCR5BM11 TCR5BM115A TCR5BM12 TCR5BM125A TCR5BM13A TCR5BM14A TCR5BM15A TCR5BM16A TCR5BM17A TCR5BM18A TCR5BM19A TCR5BM20A TCR5BM21A TCR5BM22A TCR5BM23A TCR5BM24A TCR5BM25A TCR5BM26A TCR5BM27A TCR5BM285A TCR5BM28A TCR5BM295A TCR5BM29A TCR5BM30A TCR5BM31A TCR5BM32A TCR5BM33A TCR5BM34A TCR5BM35A TCR5BM36A
Textversion des Dokuments
TCR5BM series
•

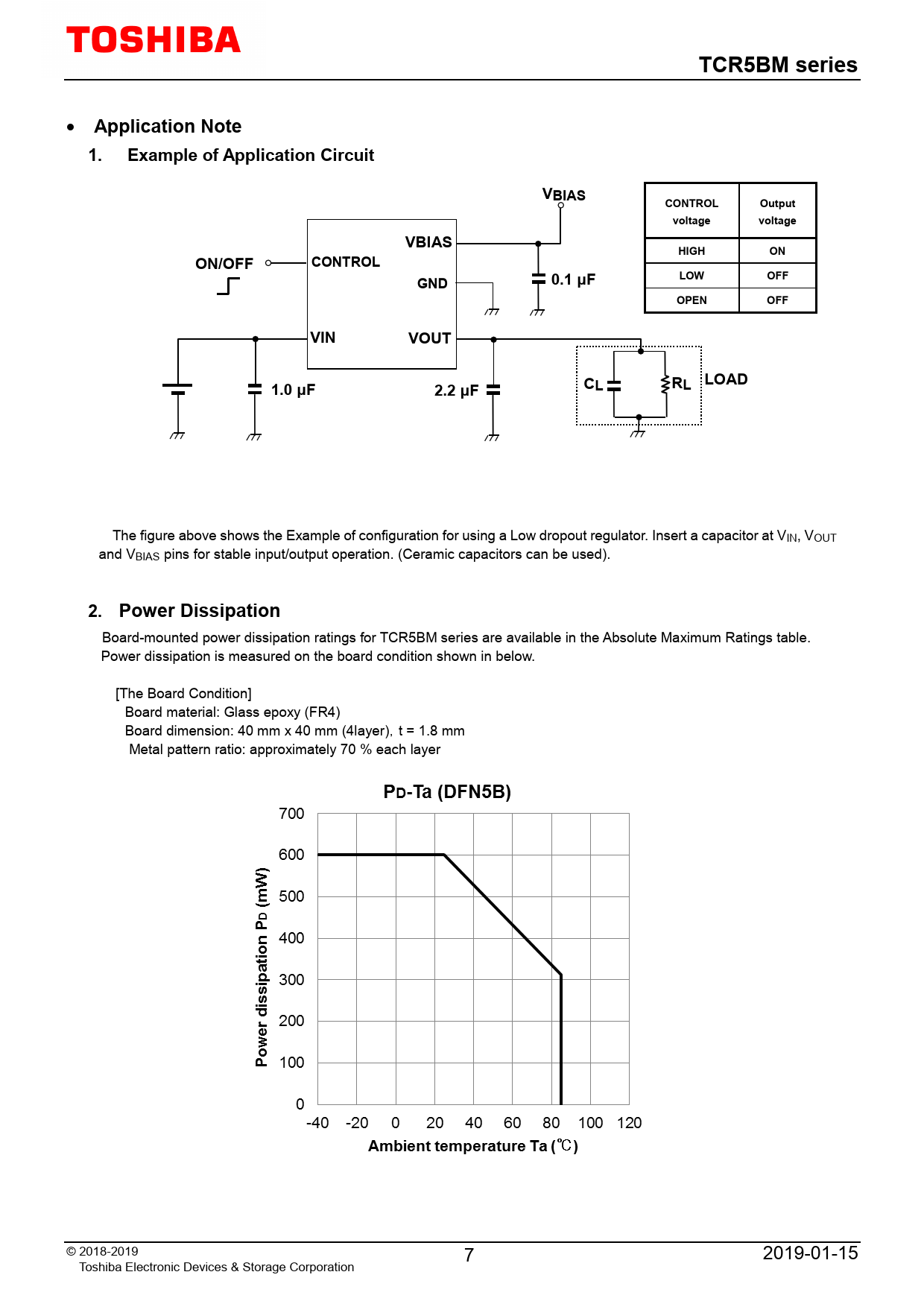

Application Note 1. Example of Application Circuit VBIAS CONTROL Output voltage voltage VBIAS HIGH ON ON/OFF CONTROL 0.1 μF LOW OFF GND OPEN OFF VIN VOUT 1.0 μF CL RL LOAD 2.2 μF
The figure above shows the Example of configuration for using a Low dropout regulator. Insert a capacitor at VIN, VOUT and VBIAS pins for stable input/output operation. (Ceramic capacitors can be used).
2. Power Dissipation
Board-mounted power dissipation ratings for TCR5BM series are available in the Absolute Maximum Ratings table. Power dissipation is measured on the board condition shown in below. [The Board Condition] Board material: Glass epoxy (FR4) Board dimension: 40 mm x 40 mm (4layer)，t = 1.8 mm Metal pattern ratio: approximately 70 % each layer © 2018-2019 7 2019-01-15 Toshiba Electronic Devices & Storage Corporation
•
