Datasheet VLMU35CM..-280-120 (Vishay) - 4
| Hersteller | Vishay |
| Beschreibung | UVC Emitting Diode in SMD Package |
| Seiten / Seite | 7 / 4 — VLMU35CM..-280-120. PACKAGE DIMENSIONS |
| Dateiformat / Größe | PDF / 243 Kb |
| Dokumentensprache | Englisch |
VLMU35CM..-280-120. PACKAGE DIMENSIONS
Modelllinie für dieses Datenblatt
Textversion des Dokuments
VLMU35CM..-280-120
www.vishay.com Vishay Semiconductors
PACKAGE DIMENSIONS

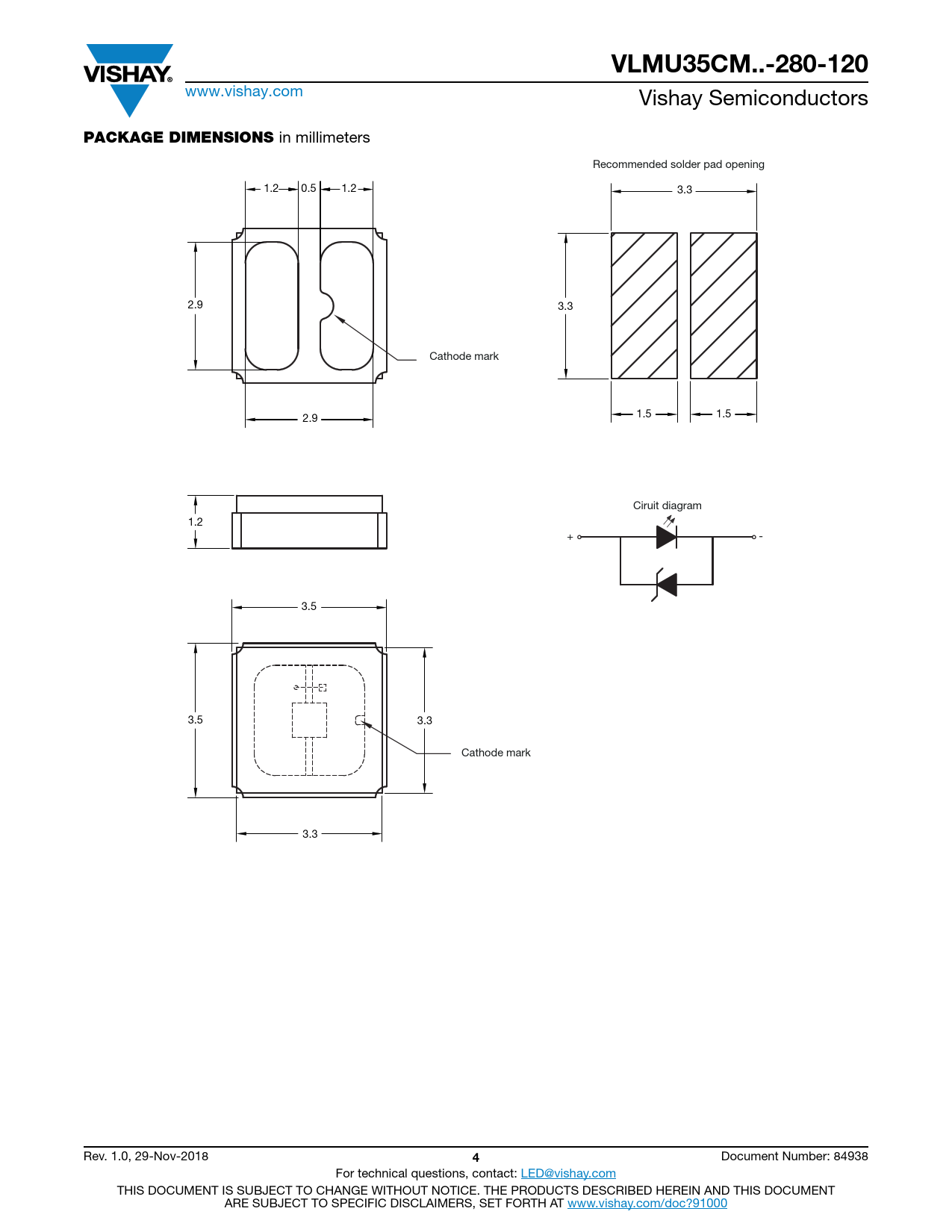

in millimeters Recommended solder pad opening 1.2 0.5 1.2 3.3 2.9 3.3 Cathode mark 1.5 1.5 2.9 Ciruit diagram 1.2 + - 3.5 3.5 3.3 Cathode mark 3.3 Rev. 1.0, 29-Nov-2018
