LT3015 Series

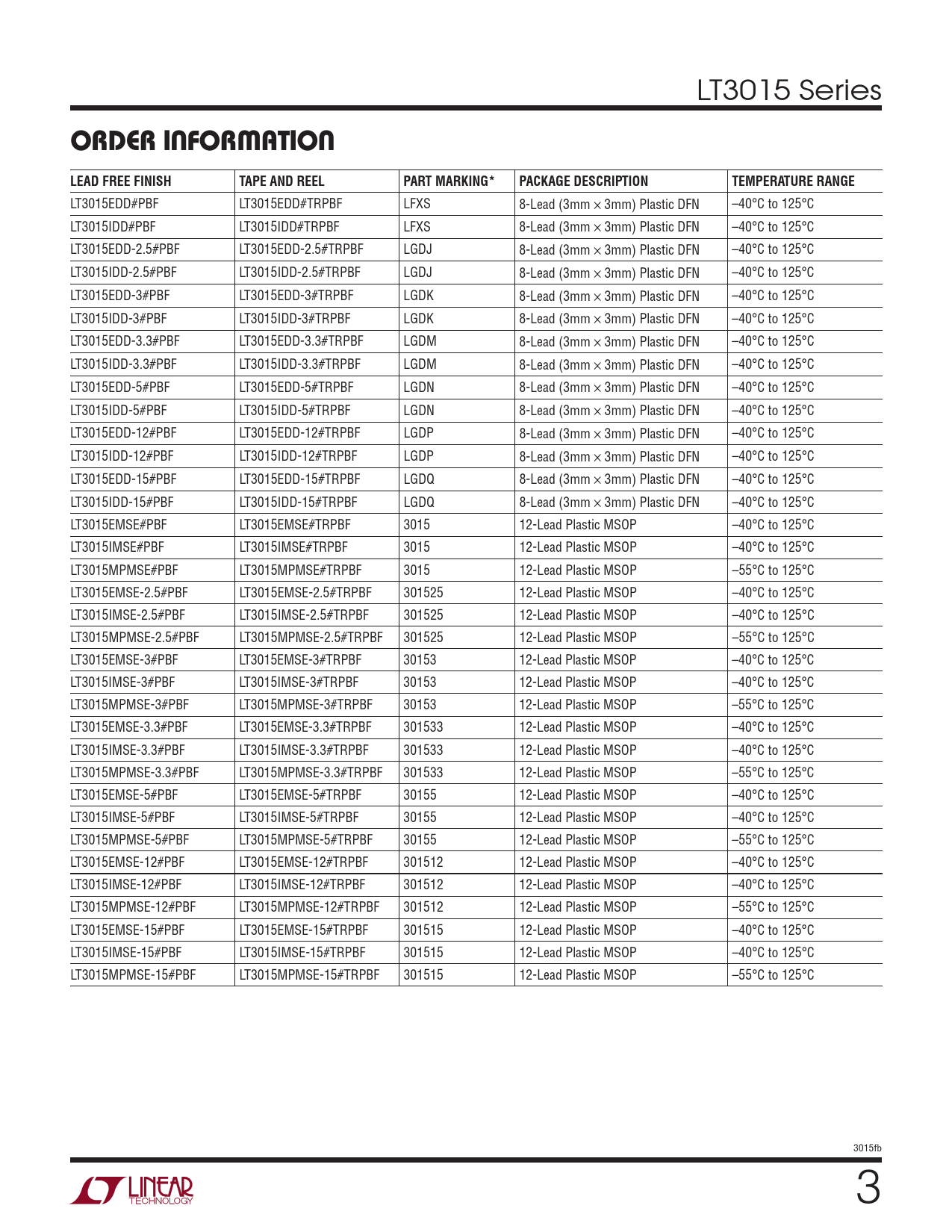

ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3015EDD#PBF LT3015EDD#TRPBF LFXS 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015IDD#PBF LT3015IDD#TRPBF LFXS 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015EDD-2.5#PBF LT3015EDD-2.5#TRPBF LGDJ 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015IDD-2.5#PBF LT3015IDD-2.5#TRPBF LGDJ 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015EDD-3#PBF LT3015EDD-3#TRPBF LGDK 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015IDD-3#PBF LT3015IDD-3#TRPBF LGDK 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015EDD-3.3#PBF LT3015EDD-3.3#TRPBF LGDM 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015IDD-3.3#PBF LT3015IDD-3.3#TRPBF LGDM 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015EDD-5#PBF LT3015EDD-5#TRPBF LGDN 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015IDD-5#PBF LT3015IDD-5#TRPBF LGDN 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015EDD-12#PBF LT3015EDD-12#TRPBF LGDP 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015IDD-12#PBF LT3015IDD-12#TRPBF LGDP 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015EDD-15#PBF LT3015EDD-15#TRPBF LGDQ 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015IDD-15#PBF LT3015IDD-15#TRPBF LGDQ 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3015EMSE#PBF LT3015EMSE#TRPBF 3015 12-Lead Plastic MSOP –40°C to 125°C LT3015IMSE#PBF LT3015IMSE#TRPBF 3015 12-Lead Plastic MSOP –40°C to 125°C LT3015MPMSE#PBF LT3015MPMSE#TRPBF 3015 12-Lead Plastic MSOP –55°C to 125°C LT3015EMSE-2.5#PBF LT3015EMSE-2.5#TRPBF 301525 12-Lead Plastic MSOP –40°C to 125°C LT3015IMSE-2.5#PBF LT3015IMSE-2.5#TRPBF 301525 12-Lead Plastic MSOP –40°C to 125°C LT3015MPMSE-2.5#PBF LT3015MPMSE-2.5#TRPBF 301525 12-Lead Plastic MSOP –55°C to 125°C LT3015EMSE-3#PBF LT3015EMSE-3#TRPBF 30153 12-Lead Plastic MSOP –40°C to 125°C LT3015IMSE-3#PBF LT3015IMSE-3#TRPBF 30153 12-Lead Plastic MSOP –40°C to 125°C LT3015MPMSE-3#PBF LT3015MPMSE-3#TRPBF 30153 12-Lead Plastic MSOP –55°C to 125°C LT3015EMSE-3.3#PBF LT3015EMSE-3.3#TRPBF 301533 12-Lead Plastic MSOP –40°C to 125°C LT3015IMSE-3.3#PBF LT3015IMSE-3.3#TRPBF 301533 12-Lead Plastic MSOP –40°C to 125°C LT3015MPMSE-3.3#PBF LT3015MPMSE-3.3#TRPBF 301533 12-Lead Plastic MSOP –55°C to 125°C LT3015EMSE-5#PBF LT3015EMSE-5#TRPBF 30155 12-Lead Plastic MSOP –40°C to 125°C LT3015IMSE-5#PBF LT3015IMSE-5#TRPBF 30155 12-Lead Plastic MSOP –40°C to 125°C LT3015MPMSE-5#PBF LT3015MPMSE-5#TRPBF 30155 12-Lead Plastic MSOP –55°C to 125°C LT3015EMSE-12#PBF LT3015EMSE-12#TRPBF 301512 12-Lead Plastic MSOP –40°C to 125°C LT3015IMSE-12#PBF LT3015IMSE-12#TRPBF 301512 12-Lead Plastic MSOP –40°C to 125°C LT3015MPMSE-12#PBF LT3015MPMSE-12#TRPBF 301512 12-Lead Plastic MSOP –55°C to 125°C LT3015EMSE-15#PBF LT3015EMSE-15#TRPBF 301515 12-Lead Plastic MSOP –40°C to 125°C LT3015IMSE-15#PBF LT3015IMSE-15#TRPBF 301515 12-Lead Plastic MSOP –40°C to 125°C LT3015MPMSE-15#PBF LT3015MPMSE-15#TRPBF 301515 12-Lead Plastic MSOP –55°C to 125°C 3015fb 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
