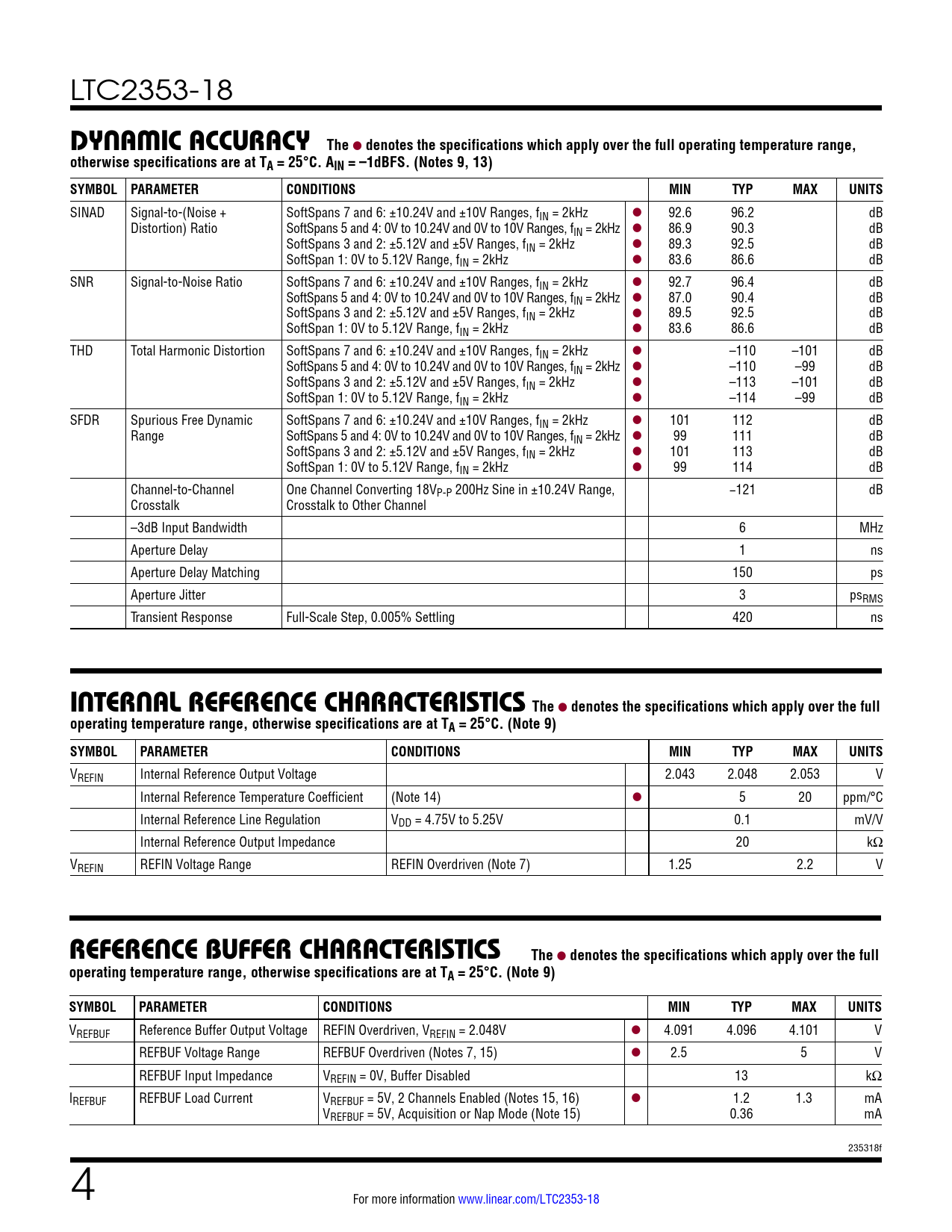

DYNAMIC ACCURACY. The. denotes the specifications which apply over the full operating temperature range,
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC2353-18
DYNAMIC ACCURACY The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. AIN = –1dBFS. (Notes 9, 13) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SINAD Signal-to-(Noise + SoftSpans 7 and 6: ±10.24V and ±10V Ranges, fIN = 2kHz l 92.6 96.2 dB Distortion) Ratio SoftSpans 5 and 4: 0V to 10.24V and 0V to 10V Ranges, fIN = 2kHz l 86.9 90.3 dB SoftSpans 3 and 2: ±5.12V and ±5V Ranges, fIN = 2kHz l 89.3 92.5 dB SoftSpan 1: 0V to 5.12V Range, fIN = 2kHz l 83.6 86.6 dB SNR Signal-to-Noise Ratio SoftSpans 7 and 6: ±10.24V and ±10V Ranges, fIN = 2kHz l 92.7 96.4 dB SoftSpans 5 and 4: 0V to 10.24V and 0V to 10V Ranges, fIN = 2kHz l 87.0 90.4 dB SoftSpans 3 and 2: ±5.12V and ±5V Ranges, fIN = 2kHz l 89.5 92.5 dB SoftSpan 1: 0V to 5.12V Range, fIN = 2kHz l 83.6 86.6 dB THD Total Harmonic Distortion SoftSpans 7 and 6: ±10.24V and ±10V Ranges, fIN = 2kHz l –110 –101 dB SoftSpans 5 and 4: 0V to 10.24V and 0V to 10V Ranges, fIN = 2kHz l –110 –99 dB SoftSpans 3 and 2: ±5.12V and ±5V Ranges, fIN = 2kHz l –113 –101 dB SoftSpan 1: 0V to 5.12V Range, fIN = 2kHz l –114 –99 dB SFDR Spurious Free Dynamic SoftSpans 7 and 6: ±10.24V and ±10V Ranges, fIN = 2kHz l 101 112 dB Range SoftSpans 5 and 4: 0V to 10.24V and 0V to 10V Ranges, fIN = 2kHz l 99 111 dB SoftSpans 3 and 2: ±5.12V and ±5V Ranges, fIN = 2kHz l 101 113 dB SoftSpan 1: 0V to 5.12V Range, fIN = 2kHz l 99 114 dB Channel-to-Channel One Channel Converting 18VP-P 200Hz Sine in ±10.24V Range, −121 dB Crosstalk Crosstalk to Other Channel –3dB Input Bandwidth 6 MHz Aperture Delay 1 ns Aperture Delay Matching 150 ps Aperture Jitter 3 psRMS Transient Response Full-Scale Step, 0.005% Settling 420 ns
