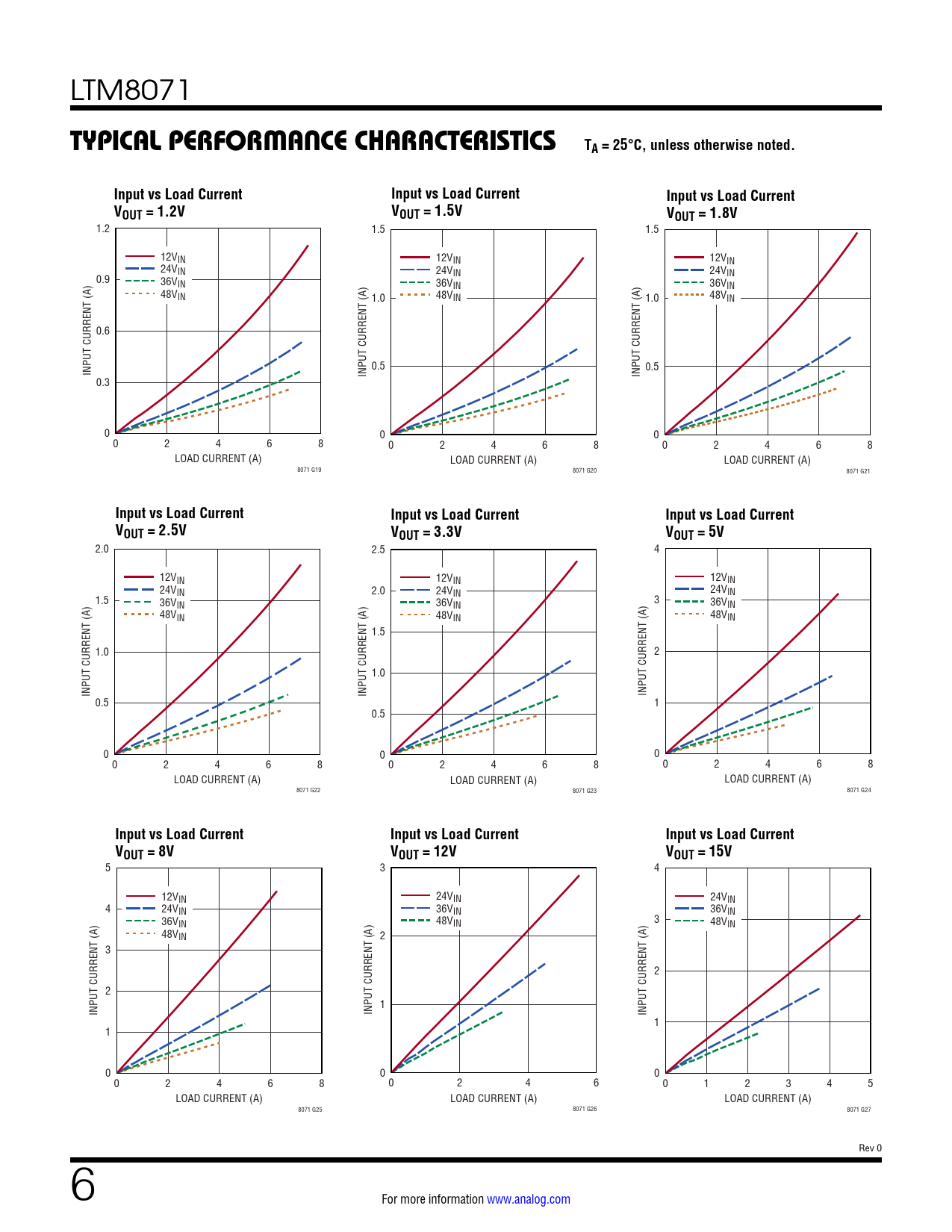

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Input vs Load Current. VOUT = 1.2V. VOUT = 1.5V
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTM8071
TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Input vs Load Current Input vs Load Current Input vs Load Current VOUT = 1.2V VOUT = 1.5V VOUT = 1.8V
1.2 1.5 1.5 12VIN 12VIN 12VIN 24VIN 24V 24V 0.9 IN IN 36VIN 36VIN 36VIN 48VIN 1.0 48VIN 1.0 48VIN 0.6 INPUT CURRENT (A) 0.5 0.5 INPUT CURRENT (A) INPUT CURRENT (A) 0.3 0 0 0 0 2 4 6 8 0 2 4 6 8 0 2 4 6 8 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8071 G19 8071 G20 8071 G21
Input vs Load Current Input vs Load Current Input vs Load Current VOUT = 2.5V VOUT = 3.3V VOUT = 5V
2.0 2.5 4 12VIN 12VIN 12VIN 24VIN 2.0 24VIN 24VIN 1.5 36VIN 36V 3 IN 36VIN 48VIN 48VIN 48VIN 1.5 1.0 2 1.0 INPUT CURRENT (A) INPUT CURRENT (A) INPUT CURRENT (A) 0.5 1 0.5 0 0 0 0 2 4 6 8 0 2 4 6 8 0 2 4 6 8 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8071 G22 8071 G23 8071 G24
Input vs Load Current Input vs Load Current Input vs Load Current VOUT = 8V VOUT = 12V VOUT = 15V
5 3 4 12VIN 24VIN 24VIN 4 24VIN 36VIN 36VIN 36VIN 48VIN 3 48VIN 48VIN 2 3 2 2 1 INPUT CURRENT (A) INPUT CURRENT (A) INPUT CURRENT (A) 1 1 0 0 0 0 2 4 6 8 0 2 4 6 0 1 2 3 4 5 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8071 G25 8071 G26 8071 G27 Rev 0 6 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Package Photos Package Description Typical Application Related Parts
