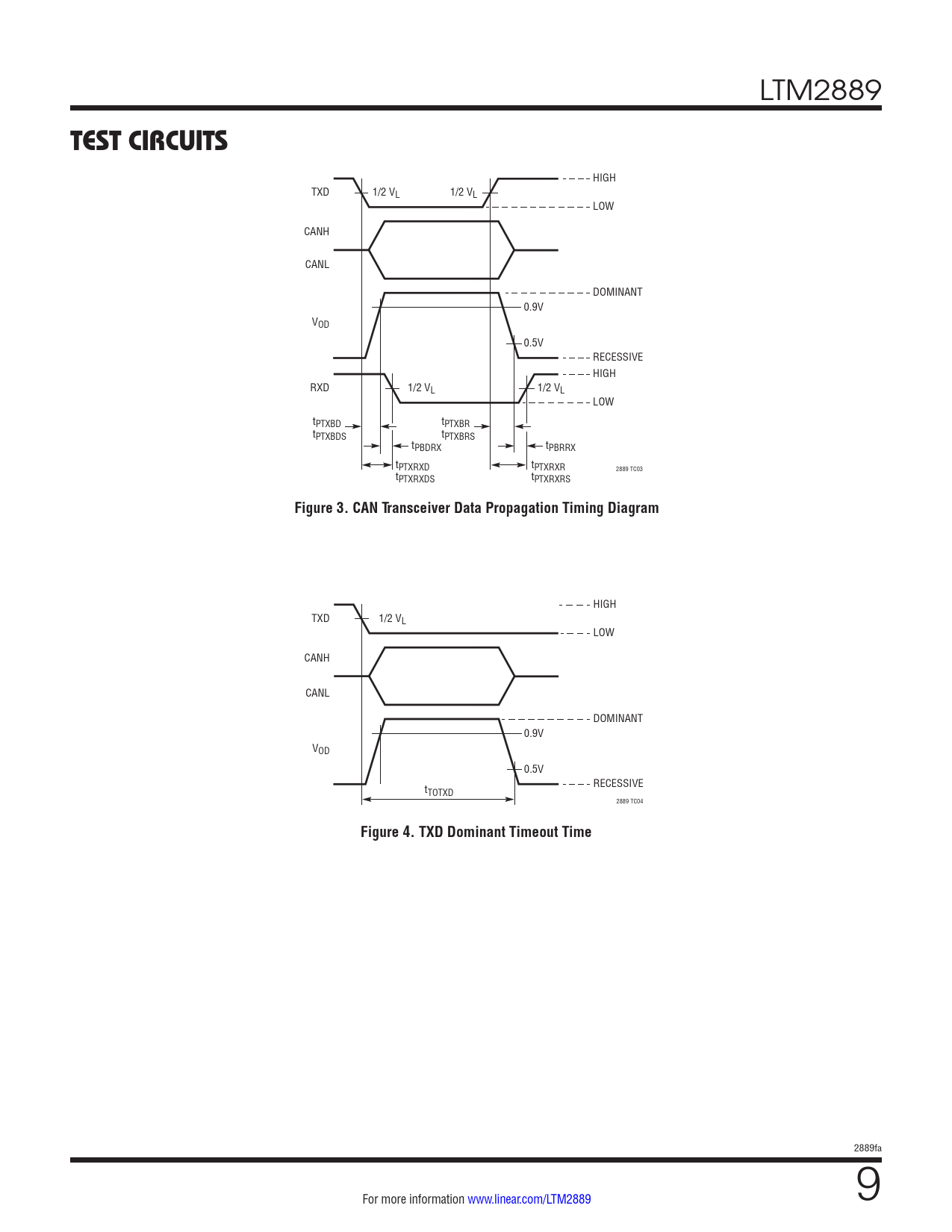

TEST CIRCUITS. Figure 3. CAN Transceiver Data Propagation Timing Diagram. Figure 4. TXD Dominant Timeout Time
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTM2889
TEST CIRCUITS
HIGH TXD 1/2 VL 1/2 VL LOW CANH CANL DOMINANT 0.9V VOD 0.5V RECESSIVE HIGH RXD 1/2 VL 1/2 VL LOW tPTXBD tPTXBR tPTXBDS tPTXBRS tPBDRX tPBRRX tPTXRXD tPTXRXR 2889 TC03 tPTXRXDS tPTXRXRS
Figure 3. CAN Transceiver Data Propagation Timing Diagram
HIGH TXD 1/2 VL LOW CANH CANL DOMINANT 0.9V VOD 0.5V t RECESSIVE TOTXD 2889 TC04
Figure 4. TXD Dominant Timeout Time
2889fa For more information www.linear.com/LTM2889 9
