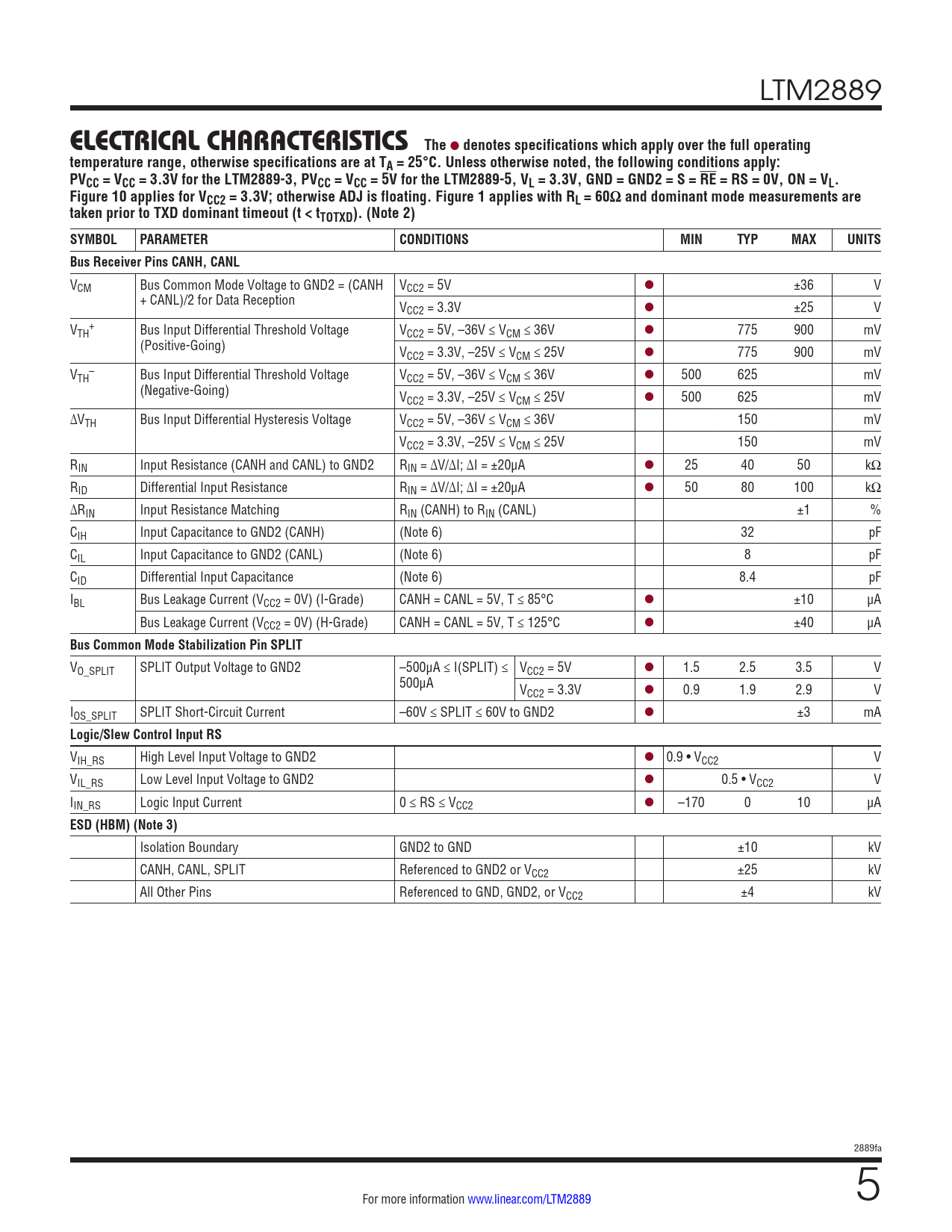

ELECTRICAL. CHARACTERISTICS The. denotes specifications which apply over the full operating
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTM2889
ELECTRICAL CHARACTERISTICS The
l
denotes specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. Unless otherwise noted, the following conditions apply: PVCC = VCC = 3.3V for the LTM2889-3, PVCC = VCC = 5V for the LTM2889-5, VL = 3.3V, GND = GND2 = S = RE = RS = 0V, ON = VL. Figure 10 applies for VCC2 = 3.3V; otherwise ADJ is floating. Figure 1 applies with RL = 60Ω and dominant mode measurements are taken prior to TXD dominant timeout (t < tTOTXD). (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Bus Receiver Pins CANH, CANL
VCM Bus Common Mode Voltage to GND2 = (CANH VCC2 = 5V l ±36 V + CANL)/2 for Data Reception VCC2 = 3.3V l ±25 V V + TH Bus Input Differential Threshold Voltage VCC2 = 5V, –36V ≤ VCM ≤ 36V l 775 900 mV (Positive-Going) VCC2 = 3.3V, –25V ≤ VCM ≤ 25V l 775 900 mV V – TH Bus Input Differential Threshold Voltage VCC2 = 5V, –36V ≤ VCM ≤ 36V l 500 625 mV (Negative-Going) VCC2 = 3.3V, –25V ≤ VCM ≤ 25V l 500 625 mV ΔVTH Bus Input Differential Hysteresis Voltage VCC2 = 5V, –36V ≤ VCM ≤ 36V 150 mV VCC2 = 3.3V, –25V ≤ VCM ≤ 25V 150 mV RIN Input Resistance (CANH and CANL) to GND2 RIN = ΔV/ΔI; ΔI = ±20μA l 25 40 50 kΩ RID Differential Input Resistance RIN = ΔV/ΔI; ΔI = ±20μA l 50 80 100 kΩ ΔRIN Input Resistance Matching RIN (CANH) to RIN (CANL) ±1 % CIH Input Capacitance to GND2 (CANH) (Note 6) 32 pF CIL Input Capacitance to GND2 (CANL) (Note 6) 8 pF CID Differential Input Capacitance (Note 6) 8.4 pF IBL Bus Leakage Current (VCC2 = 0V) (I-Grade) CANH = CANL = 5V, T ≤ 85°C l ±10 μA Bus Leakage Current (VCC2 = 0V) (H-Grade) CANH = CANL = 5V, T ≤ 125°C l ±40 μA
Bus Common Mode Stabilization Pin SPLIT
VO_SPLIT SPLIT Output Voltage to GND2 –500μA ≤ I(SPLIT) ≤ VCC2 = 5V l 1.5 2.5 3.5 V 500μA VCC2 = 3.3V l 0.9 1.9 2.9 V IOS_SPLIT SPLIT Short-Circuit Current –60V ≤ SPLIT ≤ 60V to GND2 l ±3 mA
Logic/Slew Control Input RS
VIH_RS High Level Input Voltage to GND2 l 0.9 • VCC2 V VIL_RS Low Level Input Voltage to GND2 l 0.5 • VCC2 V IIN_RS Logic Input Current 0 ≤ RS ≤ VCC2 l –170 0 10 μA
ESD (HBM) (Note 3)
Isolation Boundary GND2 to GND ±10 kV CANH, CANL, SPLIT Referenced to GND2 or VCC2 ±25 kV All Other Pins Referenced to GND, GND2, or VCC2 ±4 kV 2889fa For more information www.linear.com/LTM2889 5
