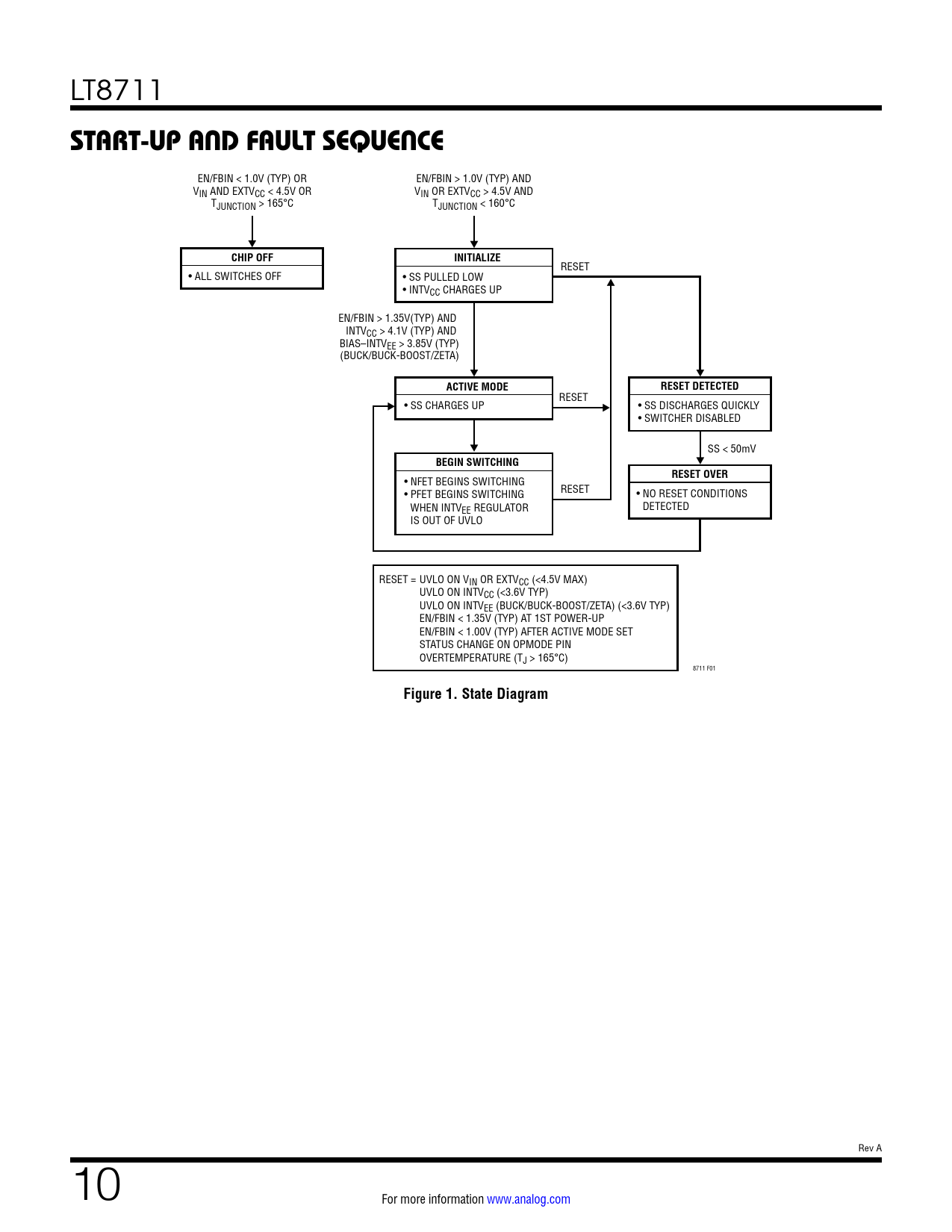

START-UP AND FAULT SEQUENCE. CHIP OFF. INITIALIZE. ACTIVE MODE. RESET DETECTED. BEGIN SWITCHING. RESET OVER. Figure 1. State Diagram
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT8711
START-UP AND FAULT SEQUENCE
EN/FBIN < 1.0V (TYP) OR EN/FBIN > 1.0V (TYP) AND VIN AND EXTVCC < 4.5V OR VIN OR EXTVCC > 4.5V AND TJUNCTION > 165°C TJUNCTION < 160°C
CHIP OFF INITIALIZE
RESET • ALL SWITCHES OFF • SS PULLED LOW • INTVCC CHARGES UP EN/FBIN > 1.35V(TYP) AND INTVCC > 4.1V (TYP) AND BIAS–INTVEE > 3.85V (TYP) (BUCK/BUCK-BOOST/ZETA)
ACTIVE MODE RESET DETECTED
RESET • SS CHARGES UP • SS DISCHARGES QUICKLY • SWITCHER DISABLED SS < 50mV
BEGIN SWITCHING RESET OVER
• NFET BEGINS SWITCHING • PFET BEGINS SWITCHING RESET • NO RESET CONDITIONS WHEN INTVEE REGULATOR DETECTED IS OUT OF UVLO RESET = UVLO ON VIN OR EXTVCC (<4.5V MAX) UVLO ON INTVCC (<3.6V TYP) UVLO ON INTVEE (BUCK/BUCK-BOOST/ZETA) (<3.6V TYP) EN/FBIN < 1.35V (TYP) AT 1ST POWER-UP EN/FBIN < 1.00V (TYP) AFTER ACTIVE MODE SET STATUS CHANGE ON OPMODE PIN OVERTEMPERATURE (TJ > 165°C) 8711 F01
Figure 1. State Diagram
