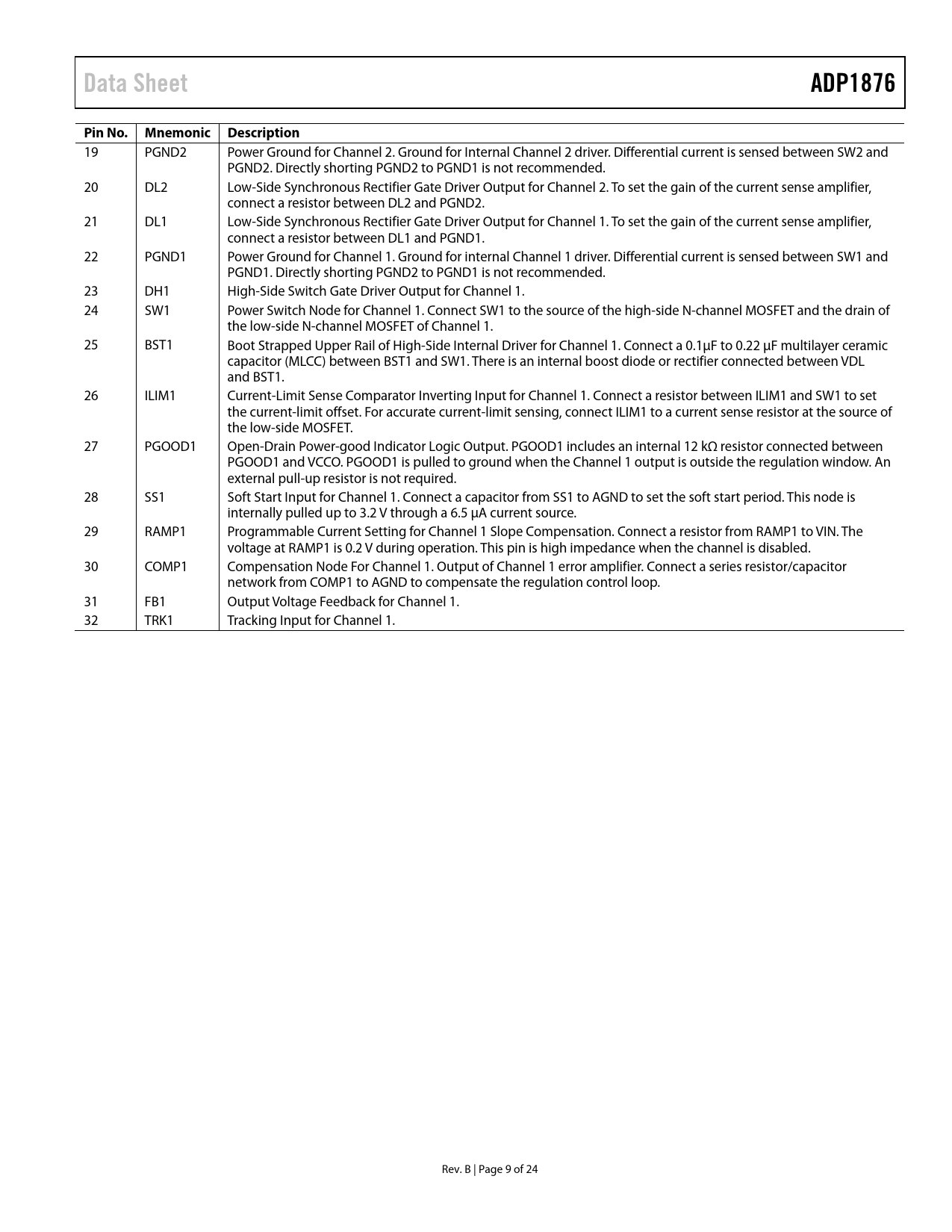

Data Sheet ADP1876 Pin No. Mnemonic Description
19 PGND2 Power Ground for Channel 2. Ground for Internal Channel 2 driver. Differential current is sensed between SW2 and PGND2. Directly shorting PGND2 to PGND1 is not recommended. 20 DL2 Low-Side Synchronous Rectifier Gate Driver Output for Channel 2. To set the gain of the current sense amplifier, connect a resistor between DL2 and PGND2. 21 DL1 Low-Side Synchronous Rectifier Gate Driver Output for Channel 1. To set the gain of the current sense amplifier, connect a resistor between DL1 and PGND1. 22 PGND1 Power Ground for Channel 1. Ground for internal Channel 1 driver. Differential current is sensed between SW1 and PGND1. Directly shorting PGND2 to PGND1 is not recommended. 23 DH1 High-Side Switch Gate Driver Output for Channel 1. 24 SW1 Power Switch Node for Channel 1. Connect SW1 to the source of the high-side N-channel MOSFET and the drain of the low-side N-channel MOSFET of Channel 1. 25 BST1 Boot Strapped Upper Rail of High-Side Internal Driver for Channel 1. Connect a 0.1μF to 0.22 μF multilayer ceramic capacitor (MLCC) between BST1 and SW1. There is an internal boost diode or rectifier connected between VDL and BST1. 26 ILIM1 Current-Limit Sense Comparator Inverting Input for Channel 1. Connect a resistor between ILIM1 and SW1 to set the current-limit offset. For accurate current-limit sensing, connect ILIM1 to a current sense resistor at the source of the low-side MOSFET. 27 PGOOD1 Open-Drain Power-good Indicator Logic Output. PGOOD1 includes an internal 12 kΩ resistor connected between PGOOD1 and VCCO. PGOOD1 is pulled to ground when the Channel 1 output is outside the regulation window. An external pull-up resistor is not required. 28 SS1 Soft Start Input for Channel 1. Connect a capacitor from SS1 to AGND to set the soft start period. This node is internally pulled up to 3.2 V through a 6.5 μA current source. 29 RAMP1 Programmable Current Setting for Channel 1 Slope Compensation. Connect a resistor from RAMP1 to VIN. The voltage at RAMP1 is 0.2 V during operation. This pin is high impedance when the channel is disabled. 30 COMP1 Compensation Node For Channel 1. Output of Channel 1 error amplifier. Connect a series resistor/capacitor network from COMP1 to AGND to compensate the regulation control loop. 31 FB1 Output Voltage Feedback for Channel 1. 32 TRK1 Tracking Input for Channel 1. Rev. B | Page 9 of 24 Document Outline FEATURES APPLICATIONS TYPICAL OPERATION CIRCUIT GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INDEPENDENT LOW DROPOUT LINEAR REGULATOR CONTROLLER ARCHITECTURE Synchronous Rectifier and Dead Time INPUT UNDERVOLTAGE LOCKOUT INTERNAL LINEAR REGULATOR (VCCO) OVERVOLTAGE PROTECTION POWER GOOD SHORT-CIRCUIT AND CURRENT-LIMIT PROTECTION SHUTDOWN CONTROL THERMAL OVERLOAD PROTECTION APPLICATIONS INFORMATION INDEPENDENT LOW DROPOUT LINEAR REGULATOR SETTING THE OUTPUT VOLTAGE OF THE CONTROLLER SOFT START SETTING THE CURRENT LIMIT ACCURATE CURRENT-LIMIT SENSING SETTING THE SLOPE COMPENSATION SETTING THE CURRENT SENSE GAIN INPUT CAPACITOR SELECTION INPUT FILTER BOOST CAPACITOR SELECTION INDUCTOR SELECTION OUTPUT CAPACITOR SELECTION MOSFET SELECTION LOOP COMPENSATION SWITCHING NOISE AND OVERSHOOT REDUCTION PCB LAYOUT GUIDELINE TYPICAL APPLICATIONS CIRCUIT PACKAGING AND ORDERING INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
