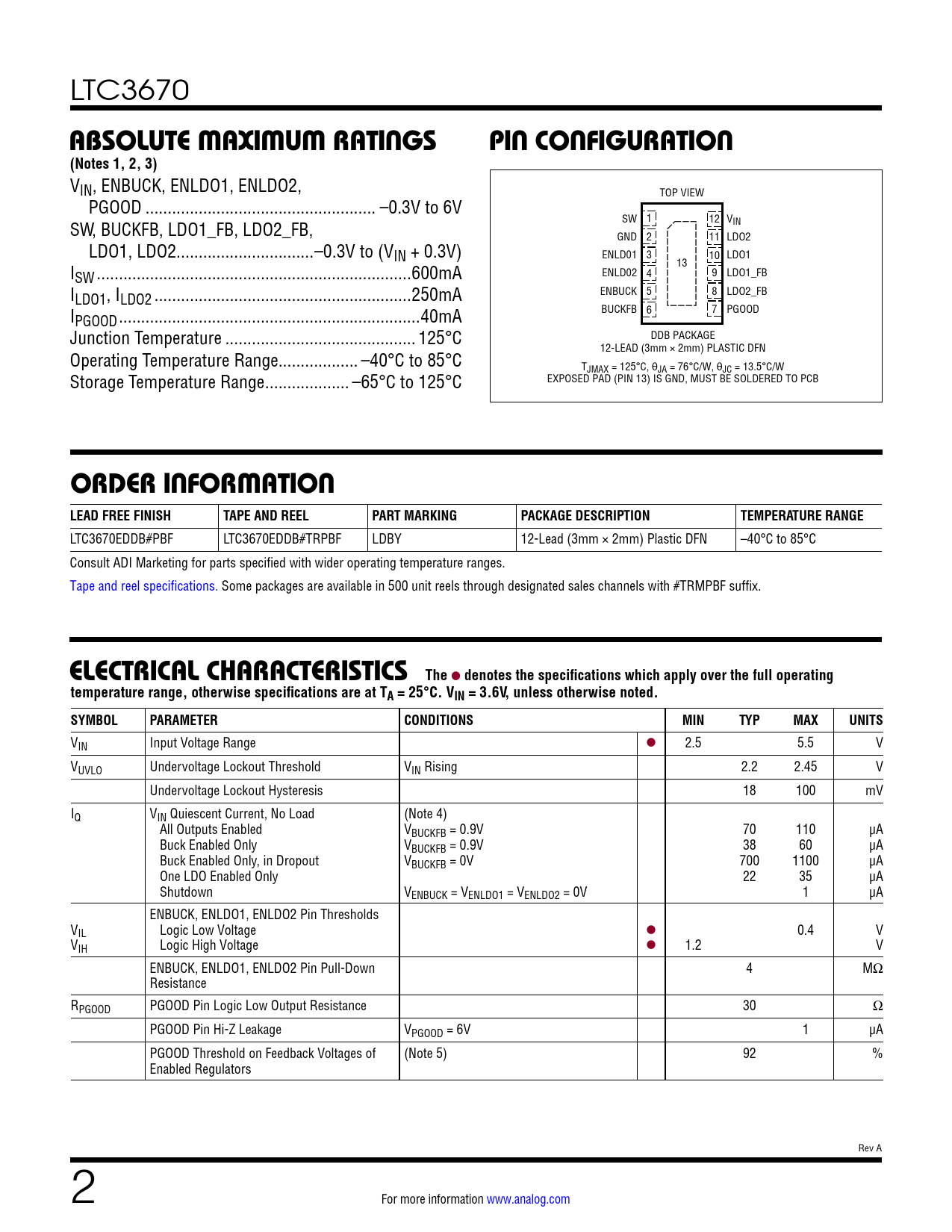

LTC3670 ABSOLUTE MAXIMUM RATINGSPIN CONFIGURATION(Notes 1, 2, 3) VIN, ENBUCK, ENLDO1, ENLDO2, TOP VIEW PGOOD .. –0.3V to 6V SW, BUCKFB, LDO1_FB, LDO2_FB, SW 1 12 VIN GND 2 11 LDO2 LDO1, LDO2 ...–0.3V to (VIN + 0.3V) ENLD01 3 10 LDO1 I 13 SW ...600mA ENLD02 4 9 LDO1_FB ILDO1, ILDO2 ..250mA ENBUCK 5 8 LDO2_FB I BUCKFB 6 7 PGOOD PGOOD ..40mA Junction Temperature ... 125°C DDB PACKAGE 12-LEAD (3mm × 2mm) PLASTIC DFN Operating Temperature Range.. –40°C to 85°C TJMAX = 125°C, θJA = 76°C/W, θJC = 13.5°C/W Storage Temperature Range ... –65°C to 125°C EXPOSED PAD (PIN 13) IS GND, MUST BE SOLDERED TO PCB ORDER INFORMATION LEAD FREE FINISHTAPE AND REELPART MARKINGPACKAGE DESCRIPTIONTEMPERATURE RANGE LTC3670EDDB#PBF LTC3670EDDB#TRPBF LDBY 12-Lead (3mm × 2mm) Plastic DFN –40°C to 85°C Consult ADI Marketing for parts specified with wider operating temperature ranges. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. ELECTRICAL CHARACTERISTICSThe l denotes the specifications which apply over the full operatingtemperature range, otherwise specifications are at TA = 25°C. VIN = 3.6V, unless otherwise noted. SYMBOLPARAMETERCONDITIONSMINTYPMAXUNITS VIN Input Voltage Range l 2.5 5.5 V VUVLO Undervoltage Lockout Threshold VIN Rising 2.2 2.45 V Undervoltage Lockout Hysteresis 18 100 mV IQ VIN Quiescent Current, No Load (Note 4) All Outputs Enabled VBUCKFB = 0.9V 70 110 µA Buck Enabled Only VBUCKFB = 0.9V 38 60 µA Buck Enabled Only, in Dropout VBUCKFB = 0V 700 1100 µA One LDO Enabled Only 22 35 µA Shutdown VENBUCK = VENLDO1 = VENLDO2 = 0V 1 µA ENBUCK, ENLDO1, ENLDO2 Pin Thresholds VIL Logic Low Voltage l 0.4 V VIH Logic High Voltage l 1.2 V ENBUCK, ENLDO1, ENLDO2 Pin Pull-Down 4 MΩ Resistance RPGOOD PGOOD Pin Logic Low Output Resistance 30 Ω PGOOD Pin Hi-Z Leakage VPGOOD = 6V 1 µA PGOOD Threshold on Feedback Voltages of (Note 5) 92 % Enabled Regulators Rev A 2 For more information www.analog.com Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Typical Application Related Parts
