BeschreibungDual 36V, 700mA Step-Down Regulator
Seiten / Seite24 / 3 — elecTrical characTerisTics. The. denotes the specifications which apply …
Dateiformat / GrößePDF / 328 Kb
DokumentenspracheEnglisch

elecTrical characTerisTics. The. denotes the specifications which apply over the full operating

elecTrical characTerisTics The denotes the specifications which apply over the full operating

Modelllinie für dieses Datenblatt

Textversion des Dokuments

LT3509
elecTrical characTerisTics The
l

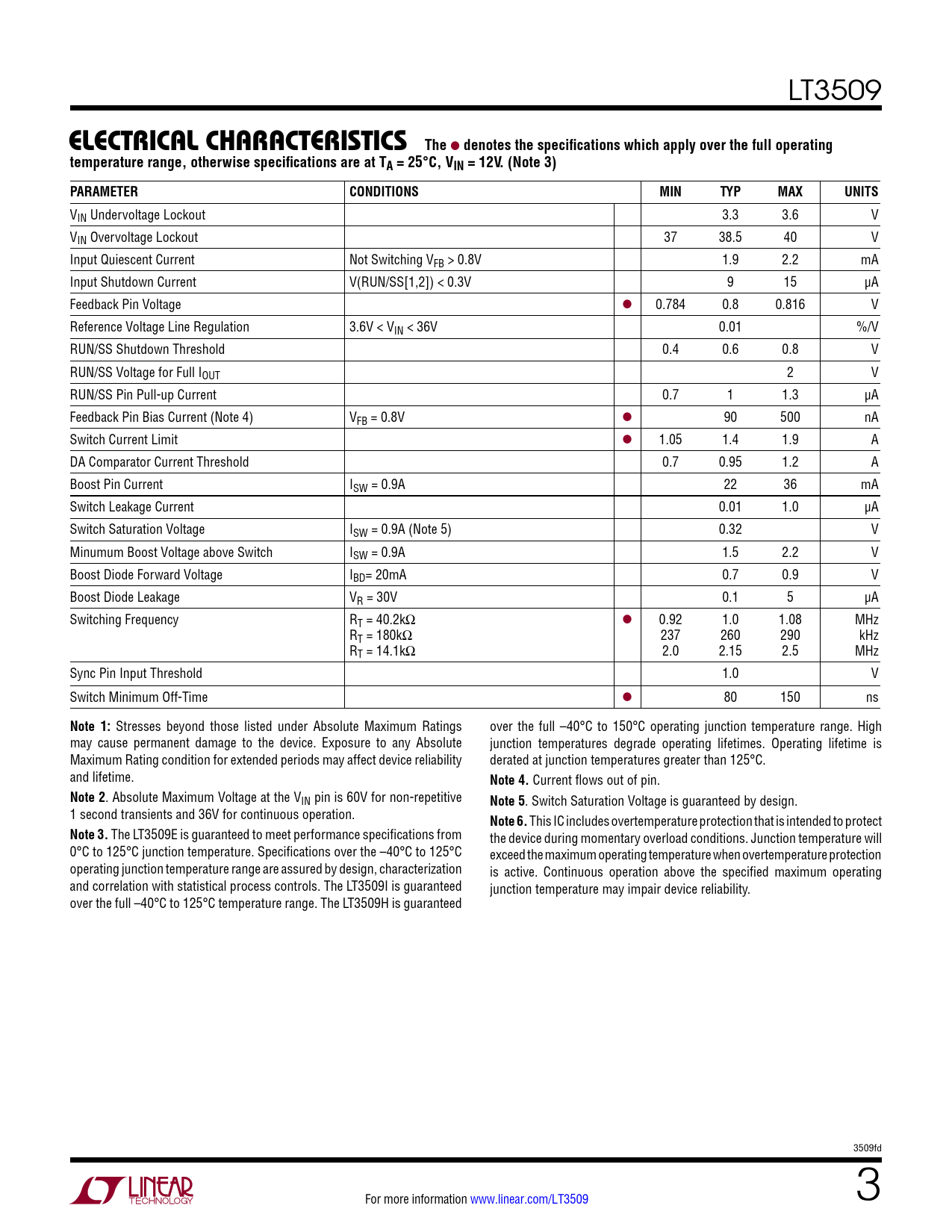

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, VIN = 12V. (Note 3) PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN Undervoltage Lockout 3.3 3.6 V VIN Overvoltage Lockout 37 38.5 40 V Input Quiescent Current Not Switching VFB > 0.8V 1.9 2.2 mA Input Shutdown Current V(RUN/SS[1,2]) < 0.3V 9 15 µA Feedback Pin Voltage l 0.784 0.8 0.816 V Reference Voltage Line Regulation 3.6V < VIN < 36V 0.01 %/V RUN/SS Shutdown Threshold 0.4 0.6 0.8 V RUN/SS Voltage for Full IOUT 2 V RUN/SS Pin Pull-up Current 0.7 1 1.3 µA Feedback Pin Bias Current (Note 4) VFB = 0.8V l 90 500 nA Switch Current Limit l 1.05 1.4 1.9 A DA Comparator Current Threshold 0.7 0.95 1.2 A Boost Pin Current ISW = 0.9A 22 36 mA Switch Leakage Current 0.01 1.0 µA Switch Saturation Voltage ISW = 0.9A (Note 5) 0.32 V Minumum Boost Voltage above Switch ISW = 0.9A 1.5 2.2 V Boost Diode Forward Voltage IBD= 20mA 0.7 0.9 V Boost Diode Leakage VR = 30V 0.1 5 µA Switching Frequency RT = 40.2kΩ l 0.92 1.0 1.08 MHz RT = 180kΩ 237 260 290 kHz RT = 14.1kΩ 2.0 2.15 2.5 MHz Sync Pin Input Threshold 1.0 V Switch Minimum Off-Time l 80 150 ns
