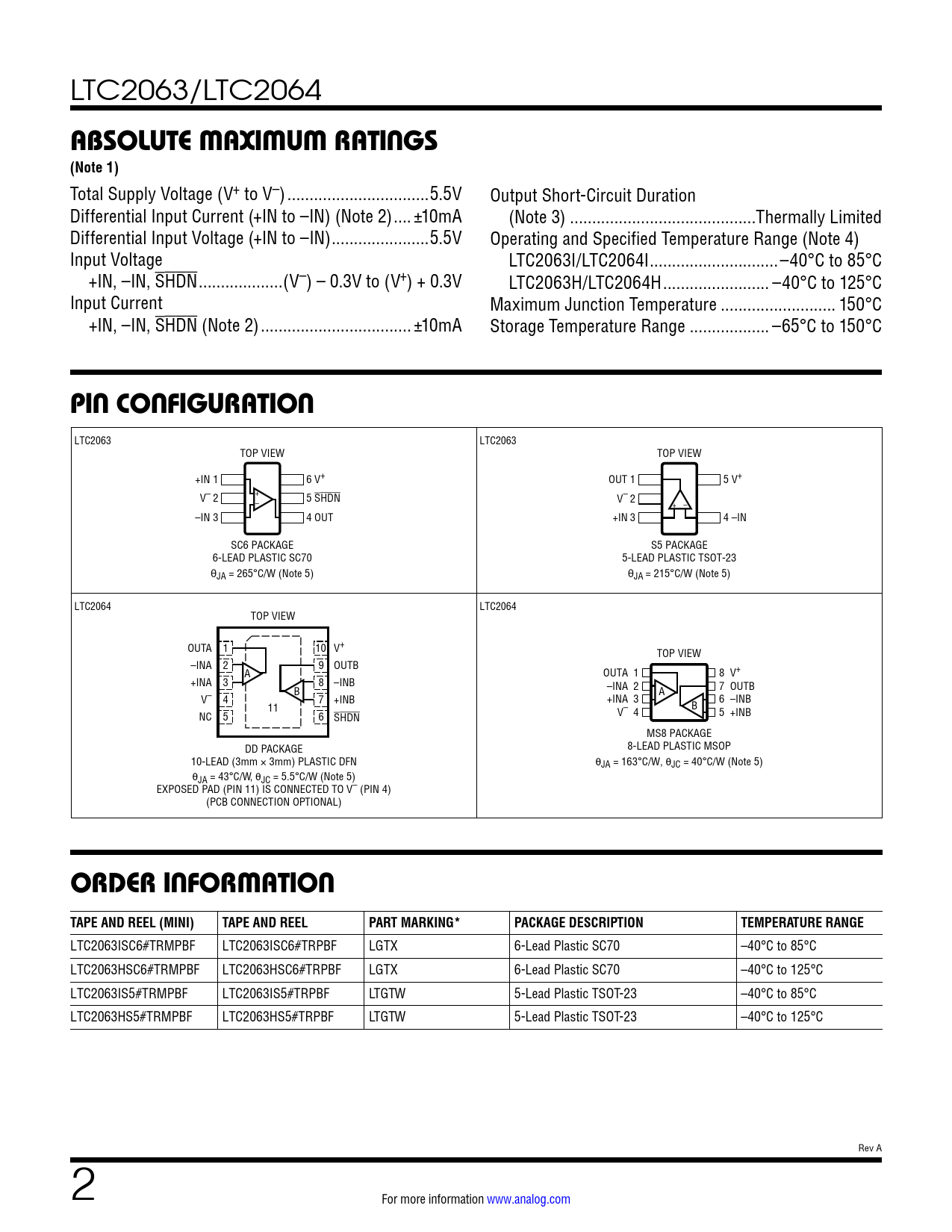

LTC2063/LTC2064
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) ..5.5V Output Short-Circuit Duration Differential Input Current (+IN to –IN) (Note 2) .. ±10mA (Note 3) ..Thermally Limited Differential Input Voltage (+IN to –IN) ..5.5V Operating and Specified Temperature Range (Note 4) Input Voltage LTC2063I/LTC2064I ...–40°C to 85°C +IN, –IN, SHDN ...(V–) – 0.3V to (V+) + 0.3V LTC2063H/LTC2064H .. –40°C to 125°C Input Current Maximum Junction Temperature .. 150°C +IN, –IN, SHDN (Note 2) .. ±10mA Storage Temperature Range .. –65°C to 150°C
PIN CONFIGURATION
LTC2063 LTC2063 TOP VIEW TOP VIEW +IN 1 6 V+ OUT 1 5 V+ V– 2 + 5 SHDN V– 2 – + – –IN 3 4 OUT +IN 3 4 –IN SC6 PACKAGE S5 PACKAGE 6-LEAD PLASTIC SC70 5-LEAD PLASTIC TSOT-23 θJA = 265°C/W (Note 5) θJA = 215°C/W (Note 5) LTC2064 LTC2064 TOP VIEW OUTA 1 10 V+ TOP VIEW –INA 2 9 OUTB A OUTA 1 8 V+ +INA 3 8 –INB B –INA 2 7 OUTB A V– 4 7 +INB +INA 3 6 –INB 11 B NC 5 6 SHDN V– 4 5 +INB MS8 PACKAGE DD PACKAGE 8-LEAD PLASTIC MSOP 10-LEAD (3mm × 3mm) PLASTIC DFN θJA = 163°C/W, θJC = 40°C/W (Note 5) θJA = 43°C/W, θJC = 5.5°C/W (Note 5) EXPOSED PAD (PIN 11) IS CONNECTED TO V– (PIN 4) (PCB CONNECTION OPTIONAL)
ORDER INFORMATION TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2063ISC6#TRMPBF LTC2063ISC6#TRPBF LGTX 6-Lead Plastic SC70 –40°C to 85°C LTC2063HSC6#TRMPBF LTC2063HSC6#TRPBF LGTX 6-Lead Plastic SC70 –40°C to 125°C LTC2063IS5#TRMPBF LTC2063IS5#TRPBF LTGTW 5-Lead Plastic TSOT-23 –40°C to 85°C LTC2063HS5#TRMPBF LTC2063HS5#TRPBF LTGTW 5-Lead Plastic TSOT-23 –40°C to 125°C Rev A 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
