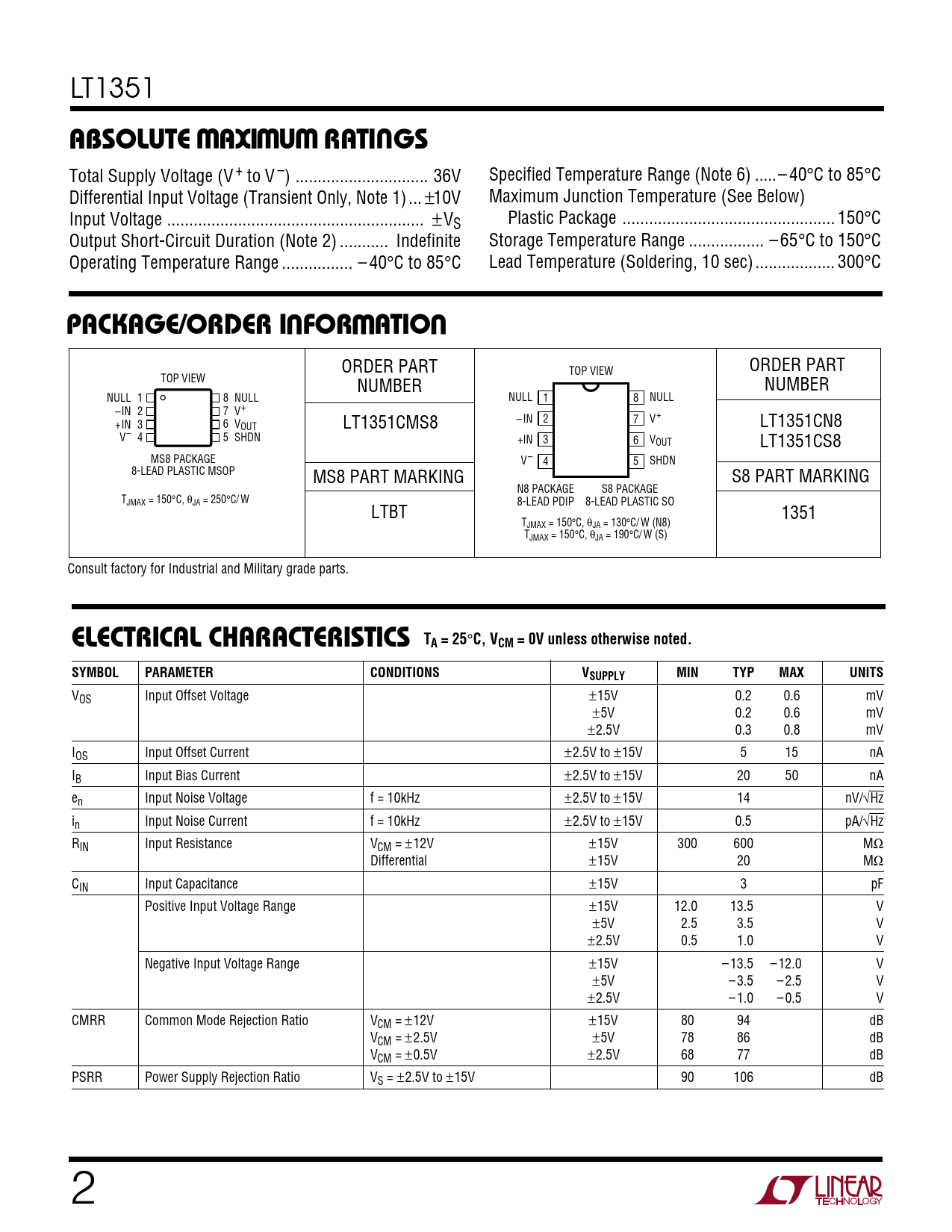

LT1351
W W W U ABSOLUTE MAXIMUM RATINGS
Total Supply Voltage (V + to V –) .. 36V Specified Temperature Range (Note 6) ...– 40°C to 85°C Differential Input Voltage (Transient Only, Note 1) ... ±10V Maximum Junction Temperature (See Below) Input Voltage .. ±VS Plastic Package .. 150°C Output Short-Circuit Duration (Note 2) ... Indefinite Storage Temperature Range ... – 65°C to 150°C Operating Temperature Range .. – 40°C to 85°C Lead Temperature (Soldering, 10 sec) .. 300°C
U W U PACKAGE/ORDER INFORMATION
ORDER PART ORDER PART TOP VIEW TOP VIEW NUMBER NUMBER NULL 1 8 NULL NULL 1 8 NULL –IN 2 7 V+ – IN 2 7 V+ +IN 3 6 V LT1351CN8 OUT LT1351CMS8 V– 4 5 SHDN +IN 3 6 VOUT LT1351CS8 MS8 PACKAGE V – 4 5 SHDN 8-LEAD PLASTIC MSOP MS8 PART MARKING S8 PART MARKING N8 PACKAGE S8 PACKAGE TJMAX = 150°C, θJA = 250°C/ W 8-LEAD PDIP 8-LEAD PLASTIC SO LTBT 1351 TJMAX = 150°C, θJA = 130°C/ W (N8) TJMAX = 150°C, θJA = 190°C/ W (S) Consult factory for Industrial and Military grade parts.
ELECTRICAL CHARACTERISTICS TA = 25
°
C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage ±15V 0.2 0.6 mV ±5V 0.2 0.6 mV ±2.5V 0.3 0.8 mV IOS Input Offset Current ±2.5V to ±15V 5 15 nA IB Input Bias Current ±2.5V to ±15V 20 50 nA en Input Noise Voltage f = 10kHz ±2.5V to ±15V 14 nV/√Hz in Input Noise Current f = 10kHz ±2.5V to ±15V 0.5 pA/√Hz RIN Input Resistance VCM = ±12V ±15V 300 600 MΩ Differential ±15V 20 MΩ CIN Input Capacitance ±15V 3 pF Positive Input Voltage Range ±15V 12.0 13.5 V ±5V 2.5 3.5 V ±2.5V 0.5 1.0 V Negative Input Voltage Range ±15V – 13.5 – 12.0 V ±5V – 3.5 – 2.5 V ±2.5V – 1.0 – 0.5 V CMRR Common Mode Rejection Ratio VCM = ±12V ±15V 80 94 dB VCM = ±2.5V ±5V 78 86 dB VCM = ±0.5V ±2.5V 68 77 dB PSRR Power Supply Rejection Ratio VS = ±2.5V to ±15V 90 106 dB 2
