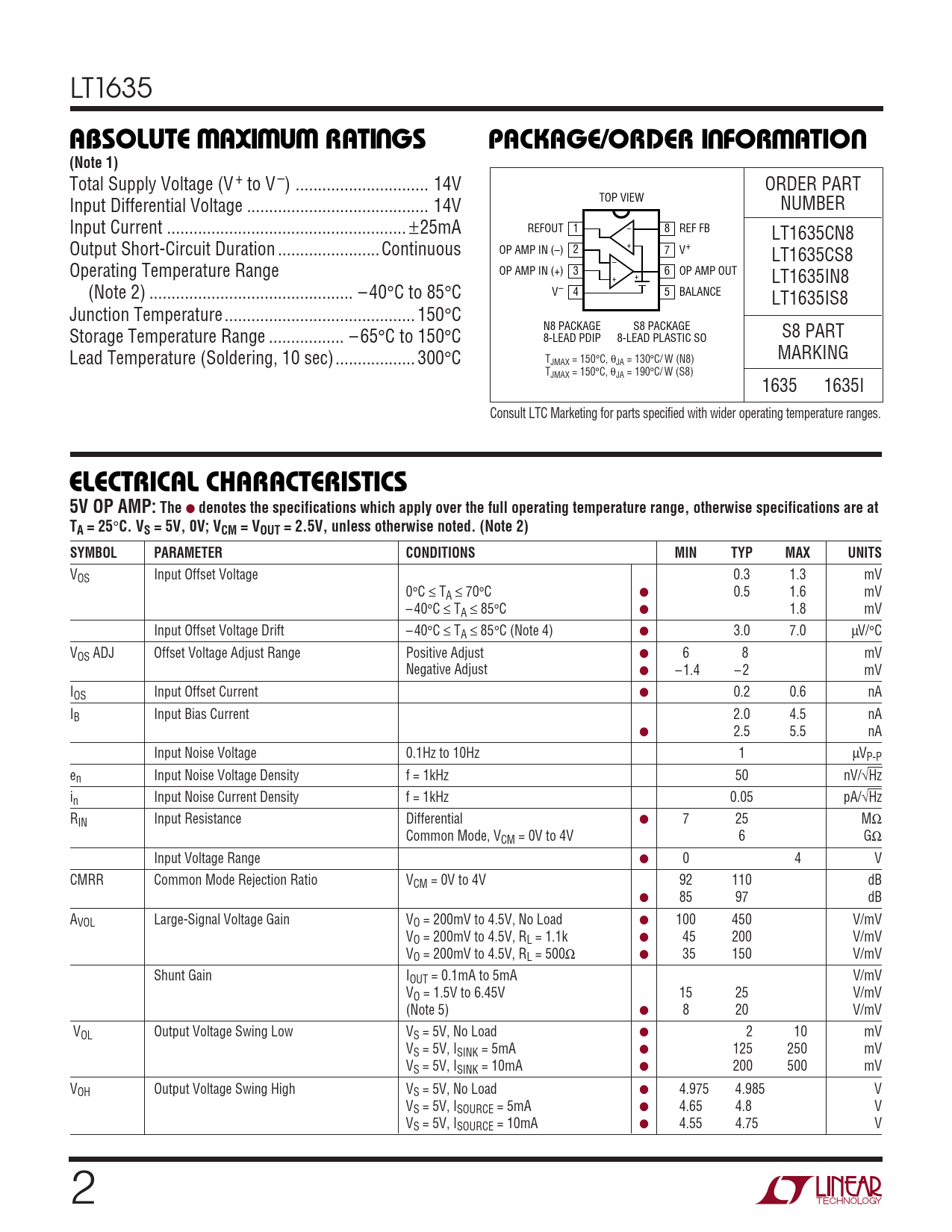

LT1635
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
Total Supply Voltage (V + to V –) .. 14V ORDER PART Input Differential Voltage ... 14V TOP VIEW NUMBER Input Current .. ±25mA REFOUT 1 – 8 REF FB LT1635CN8 Output Short-Circuit Duration ... Continuous + OP AMP IN (–) 2 7 V+ LT1635CS8 – Operating Temperature Range OP AMP IN (+) 3 6 OP AMP OUT + + LT1635IN8 (Note 2) .. – 40°C to 85°C V– 4 5 BALANCE LT1635IS8 Junction Temperature ... 150°C N8 PACKAGE S8 PACKAGE Storage Temperature Range ... – 65°C to 150°C S8 PART 8-LEAD PDIP 8-LEAD PLASTIC SO Lead Temperature (Soldering, 10 sec).. 300°C MARKING TJMAX = 150°C, θJA = 130°C/ W (N8) TJMAX = 150°C, θJA = 190°C/ W (S8) 1635 1635I Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS 5V OP AMP: The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS = 5V, 0V; VCM = VOUT = 2.5V, unless otherwise noted. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage 0.3 1.3 mV 0°C ≤ TA ≤ 70°C ● 0.5 1.6 mV – 40°C ≤ TA ≤ 85°C ● 1.8 mV Input Offset Voltage Drift – 40°C ≤ TA ≤ 85°C (Note 4) ● 3.0 7.0 µV/°C VOS ADJ Offset Voltage Adjust Range Positive Adjust ● 6 8 mV Negative Adjust ● – 1.4 – 2 mV IOS Input Offset Current ● 0.2 0.6 nA IB Input Bias Current 2.0 4.5 nA ● 2.5 5.5 nA Input Noise Voltage 0.1Hz to 10Hz 1 µVP-P en Input Noise Voltage Density f = 1kHz 50 nV/√Hz in Input Noise Current Density f = 1kHz 0.05 pA/√Hz RIN Input Resistance Differential ● 7 25 MΩ Common Mode, VCM = 0V to 4V 6 GΩ Input Voltage Range ● 0 4 V CMRR Common Mode Rejection Ratio VCM = 0V to 4V 92 110 dB ● 85 97 dB AVOL Large-Signal Voltage Gain VO = 200mV to 4.5V, No Load ● 100 450 V/mV VO = 200mV to 4.5V, RL = 1.1k ● 45 200 V/mV VO = 200mV to 4.5V, RL = 500Ω ● 35 150 V/mV Shunt Gain IOUT = 0.1mA to 5mA V/mV VO = 1.5V to 6.45V 15 25 V/mV (Note 5) ● 8 20 V/mV VOL Output Voltage Swing Low VS = 5V, No Load ● 2 10 mV VS = 5V, ISINK = 5mA ● 125 250 mV VS = 5V, ISINK = 10mA ● 200 500 mV VOH Output Voltage Swing High VS = 5V, No Load ● 4.975 4.985 V VS = 5V, ISOURCE = 5mA ● 4.65 4.8 V VS = 5V, ISOURCE = 10mA ● 4.55 4.75 V 2
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
Total Supply Voltage (V + to V –) .. 14V ORDER PART Input Differential Voltage ... 14V TOP VIEW NUMBER Input Current .. ±25mA REFOUT 1 – 8 REF FB LT1635CN8 Output Short-Circuit Duration ... Continuous + OP AMP IN (–) 2 7 V+ LT1635CS8 – Operating Temperature Range OP AMP IN (+) 3 6 OP AMP OUT + + LT1635IN8 (Note 2) .. – 40°C to 85°C V– 4 5 BALANCE LT1635IS8 Junction Temperature ... 150°C N8 PACKAGE S8 PACKAGE Storage Temperature Range ... – 65°C to 150°C S8 PART 8-LEAD PDIP 8-LEAD PLASTIC SO Lead Temperature (Soldering, 10 sec).. 300°C MARKING TJMAX = 150°C, θJA = 130°C/ W (N8) TJMAX = 150°C, θJA = 190°C/ W (S8) 1635 1635I Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS 5V OP AMP: The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS = 5V, 0V; VCM = VOUT = 2.5V, unless otherwise noted. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage 0.3 1.3 mV 0°C ≤ TA ≤ 70°C ● 0.5 1.6 mV – 40°C ≤ TA ≤ 85°C ● 1.8 mV Input Offset Voltage Drift – 40°C ≤ TA ≤ 85°C (Note 4) ● 3.0 7.0 µV/°C VOS ADJ Offset Voltage Adjust Range Positive Adjust ● 6 8 mV Negative Adjust ● – 1.4 – 2 mV IOS Input Offset Current ● 0.2 0.6 nA IB Input Bias Current 2.0 4.5 nA ● 2.5 5.5 nA Input Noise Voltage 0.1Hz to 10Hz 1 µVP-P en Input Noise Voltage Density f = 1kHz 50 nV/√Hz in Input Noise Current Density f = 1kHz 0.05 pA/√Hz RIN Input Resistance Differential ● 7 25 MΩ Common Mode, VCM = 0V to 4V 6 GΩ Input Voltage Range ● 0 4 V CMRR Common Mode Rejection Ratio VCM = 0V to 4V 92 110 dB ● 85 97 dB AVOL Large-Signal Voltage Gain VO = 200mV to 4.5V, No Load ● 100 450 V/mV VO = 200mV to 4.5V, RL = 1.1k ● 45 200 V/mV VO = 200mV to 4.5V, RL = 500Ω ● 35 150 V/mV Shunt Gain IOUT = 0.1mA to 5mA V/mV VO = 1.5V to 6.45V 15 25 V/mV (Note 5) ● 8 20 V/mV VOL Output Voltage Swing Low VS = 5V, No Load ● 2 10 mV VS = 5V, ISINK = 5mA ● 125 250 mV VS = 5V, ISINK = 10mA ● 200 500 mV VOH Output Voltage Swing High VS = 5V, No Load ● 4.975 4.985 V VS = 5V, ISOURCE = 5mA ● 4.65 4.8 V VS = 5V, ISOURCE = 10mA ● 4.55 4.75 V 2
