Datasheet LT1782 (Analog Devices) - 2
| Hersteller | Analog Devices |
| Beschreibung | Micropower, Over-The-Top SOT-23, Rail-to-Rail Input and Output Op Amp |
| Seiten / Seite | 16 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION … |
| Dateiformat / Größe | PDF / 527 Kb |
| Dokumentensprache | Englisch |
ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Modelllinie für dieses Datenblatt
Textversion des Dokuments

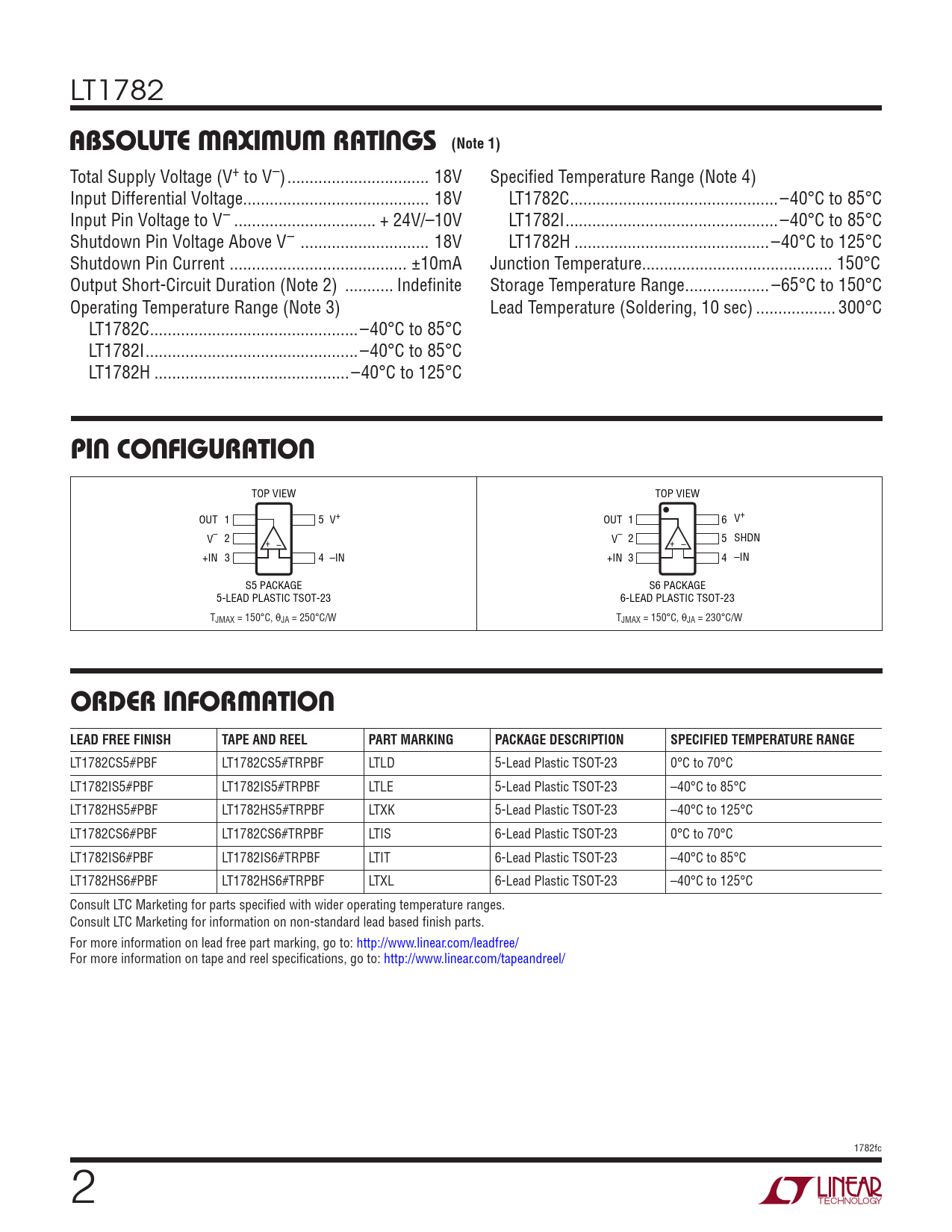

LT1782
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) .. 18V Specified Temperature Range (Note 4) Input Differential Voltage.. 18V LT1782C ...–40°C to 85°C Input Pin Voltage to V– .. + 24V/–10V LT1782I ..–40°C to 85°C Shutdown Pin Voltage Above V– ... 18V LT1782H ..–40°C to 125°C Shutdown Pin Current .. ±10mA Junction Temperature... 150°C Output Short-Circuit Duration (Note 2) ... Indefinite Storage Temperature Range ...–65°C to 150°C Operating Temperature Range (Note 3) Lead Temperature (Soldering, 10 sec) .. 300°C LT1782C ...–40°C to 85°C LT1782I ..–40°C to 85°C LT1782H ..–40°C to 125°C
PIN CONFIGURATION
TOP VIEW TOP VIEW OUT 1 5 V+ OUT 1 6 V+ V– 2 SHDN + V– 2 5 – + – +IN 3 4 –IN +IN 3 4 –IN S5 PACKAGE S6 PACKAGE 5-LEAD PLASTIC TSOT-23 6-LEAD PLASTIC TSOT-23 TJMAX = 150°C, θJA = 250°C/W TJMAX = 150°C, θJA = 230°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1782CS5#PBF LT1782CS5#TRPBF LTLD 5-Lead Plastic TSOT-23 0°C to 70°C LT1782IS5#PBF LT1782IS5#TRPBF LTLE 5-Lead Plastic TSOT-23 –40°C to 85°C LT1782HS5#PBF LT1782HS5#TRPBF LTXK 5-Lead Plastic TSOT-23 –40°C to 125°C LT1782CS6#PBF LT1782CS6#TRPBF LTIS 6-Lead Plastic TSOT-23 0°C to 70°C LT1782IS6#PBF LT1782IS6#TRPBF LTIT 6-Lead Plastic TSOT-23 –40°C to 85°C LT1782HS6#PBF LT1782HS6#TRPBF LTXL 6-Lead Plastic TSOT-23 –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 1782fc 2 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Typical Applications Package Description Revision History Typical Application Related Parts
