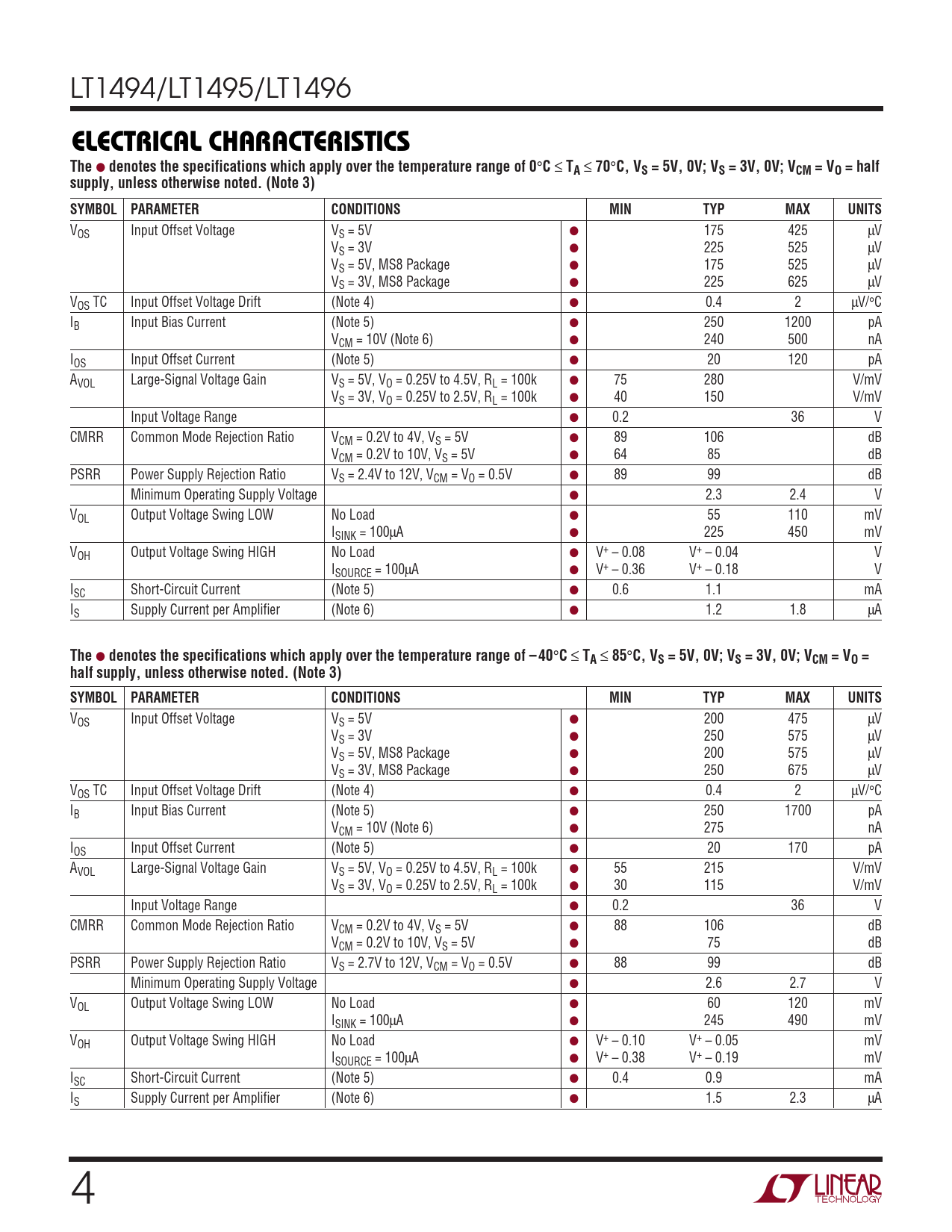

LT1494/LT1495/LT1496
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the temperature range of 0
°
C
≤
TA
≤
70
°
C, VS = 5V, 0V; VS = 3V, 0V; VCM = VO = half supply, unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = 5V ● 175 425 µV VS = 3V ● 225 525 µV VS = 5V, MS8 Package ● 175 525 µV VS = 3V, MS8 Package ● 225 625 µV VOS TC Input Offset Voltage Drift (Note 4) ● 0.4 2 µV/°C IB Input Bias Current (Note 5) ● 250 1200 pA VCM = 10V (Note 6) ● 240 500 nA IOS Input Offset Current (Note 5) ● 20 120 pA AVOL Large-Signal Voltage Gain VS = 5V, VO = 0.25V to 4.5V, RL = 100k ● 75 280 V/mV VS = 3V, VO = 0.25V to 2.5V, RL = 100k ● 40 150 V/mV Input Voltage Range ● 0.2 36 V CMRR Common Mode Rejection Ratio VCM = 0.2V to 4V, VS = 5V ● 89 106 dB VCM = 0.2V to 10V, VS = 5V ● 64 85 dB PSRR Power Supply Rejection Ratio VS = 2.4V to 12V, VCM = VO = 0.5V ● 89 99 dB Minimum Operating Supply Voltage ● 2.3 2.4 V VOL Output Voltage Swing LOW No Load ● 55 110 mV ISINK = 100µA ● 225 450 mV VOH Output Voltage Swing HIGH No Load ● V+ – 0.08 V+ – 0.04 V ISOURCE = 100µA ● V+ – 0.36 V+ – 0.18 V ISC Short-Circuit Current (Note 5) ● 0.6 1.1 mA IS Supply Current per Amplifier (Note 6) ● 1.2 1.8 µA
The
●
denotes the specifications which apply over the temperature range of – 40
°
C
≤
TA
≤
85
°
C, VS = 5V, 0V; VS = 3V, 0V; VCM = VO = half supply, unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = 5V ● 200 475 µV VS = 3V ● 250 575 µV VS = 5V, MS8 Package ● 200 575 µV VS = 3V, MS8 Package ● 250 675 µV VOS TC Input Offset Voltage Drift (Note 4) ● 0.4 2 µV/°C IB Input Bias Current (Note 5) ● 250 1700 pA VCM = 10V (Note 6) ● 275 nA IOS Input Offset Current (Note 5) ● 20 170 pA AVOL Large-Signal Voltage Gain VS = 5V, VO = 0.25V to 4.5V, RL = 100k ● 55 215 V/mV VS = 3V, VO = 0.25V to 2.5V, RL = 100k ● 30 115 V/mV Input Voltage Range ● 0.2 36 V CMRR Common Mode Rejection Ratio VCM = 0.2V to 4V, VS = 5V ● 88 106 dB VCM = 0.2V to 10V, VS = 5V ● 75 dB PSRR Power Supply Rejection Ratio VS = 2.7V to 12V, VCM = VO = 0.5V ● 88 99 dB Minimum Operating Supply Voltage ● 2.6 2.7 V VOL Output Voltage Swing LOW No Load ● 60 120 mV ISINK = 100µA ● 245 490 mV VOH Output Voltage Swing HIGH No Load ● V+ – 0.10 V+ – 0.05 mV ISOURCE = 100µA ● V+ – 0.38 V+ – 0.19 mV ISC Short-Circuit Current (Note 5) ● 0.4 0.9 mA IS Supply Current per Amplifier (Note 6) ● 1.5 2.3 µA 4
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the temperature range of 0
°
C
≤
TA
≤
70
°
C, VS = 5V, 0V; VS = 3V, 0V; VCM = VO = half supply, unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = 5V ● 175 425 µV VS = 3V ● 225 525 µV VS = 5V, MS8 Package ● 175 525 µV VS = 3V, MS8 Package ● 225 625 µV VOS TC Input Offset Voltage Drift (Note 4) ● 0.4 2 µV/°C IB Input Bias Current (Note 5) ● 250 1200 pA VCM = 10V (Note 6) ● 240 500 nA IOS Input Offset Current (Note 5) ● 20 120 pA AVOL Large-Signal Voltage Gain VS = 5V, VO = 0.25V to 4.5V, RL = 100k ● 75 280 V/mV VS = 3V, VO = 0.25V to 2.5V, RL = 100k ● 40 150 V/mV Input Voltage Range ● 0.2 36 V CMRR Common Mode Rejection Ratio VCM = 0.2V to 4V, VS = 5V ● 89 106 dB VCM = 0.2V to 10V, VS = 5V ● 64 85 dB PSRR Power Supply Rejection Ratio VS = 2.4V to 12V, VCM = VO = 0.5V ● 89 99 dB Minimum Operating Supply Voltage ● 2.3 2.4 V VOL Output Voltage Swing LOW No Load ● 55 110 mV ISINK = 100µA ● 225 450 mV VOH Output Voltage Swing HIGH No Load ● V+ – 0.08 V+ – 0.04 V ISOURCE = 100µA ● V+ – 0.36 V+ – 0.18 V ISC Short-Circuit Current (Note 5) ● 0.6 1.1 mA IS Supply Current per Amplifier (Note 6) ● 1.2 1.8 µA
The
●
denotes the specifications which apply over the temperature range of – 40
°
C
≤
TA
≤
85
°
C, VS = 5V, 0V; VS = 3V, 0V; VCM = VO = half supply, unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = 5V ● 200 475 µV VS = 3V ● 250 575 µV VS = 5V, MS8 Package ● 200 575 µV VS = 3V, MS8 Package ● 250 675 µV VOS TC Input Offset Voltage Drift (Note 4) ● 0.4 2 µV/°C IB Input Bias Current (Note 5) ● 250 1700 pA VCM = 10V (Note 6) ● 275 nA IOS Input Offset Current (Note 5) ● 20 170 pA AVOL Large-Signal Voltage Gain VS = 5V, VO = 0.25V to 4.5V, RL = 100k ● 55 215 V/mV VS = 3V, VO = 0.25V to 2.5V, RL = 100k ● 30 115 V/mV Input Voltage Range ● 0.2 36 V CMRR Common Mode Rejection Ratio VCM = 0.2V to 4V, VS = 5V ● 88 106 dB VCM = 0.2V to 10V, VS = 5V ● 75 dB PSRR Power Supply Rejection Ratio VS = 2.7V to 12V, VCM = VO = 0.5V ● 88 99 dB Minimum Operating Supply Voltage ● 2.6 2.7 V VOL Output Voltage Swing LOW No Load ● 60 120 mV ISINK = 100µA ● 245 490 mV VOH Output Voltage Swing HIGH No Load ● V+ – 0.10 V+ – 0.05 mV ISOURCE = 100µA ● V+ – 0.38 V+ – 0.19 mV ISC Short-Circuit Current (Note 5) ● 0.4 0.9 mA IS Supply Current per Amplifier (Note 6) ● 1.5 2.3 µA 4
