ELECTRICAL CHARACTERISTICS VS =. 18V, TA = 25. C, unless otherwise noted. SYMBOL. PARAMETER. CONDITIONS. MIN. TYP. MAX. UNITS. The
Modelllinie für dieses Datenblatt
Textversion des Dokuments

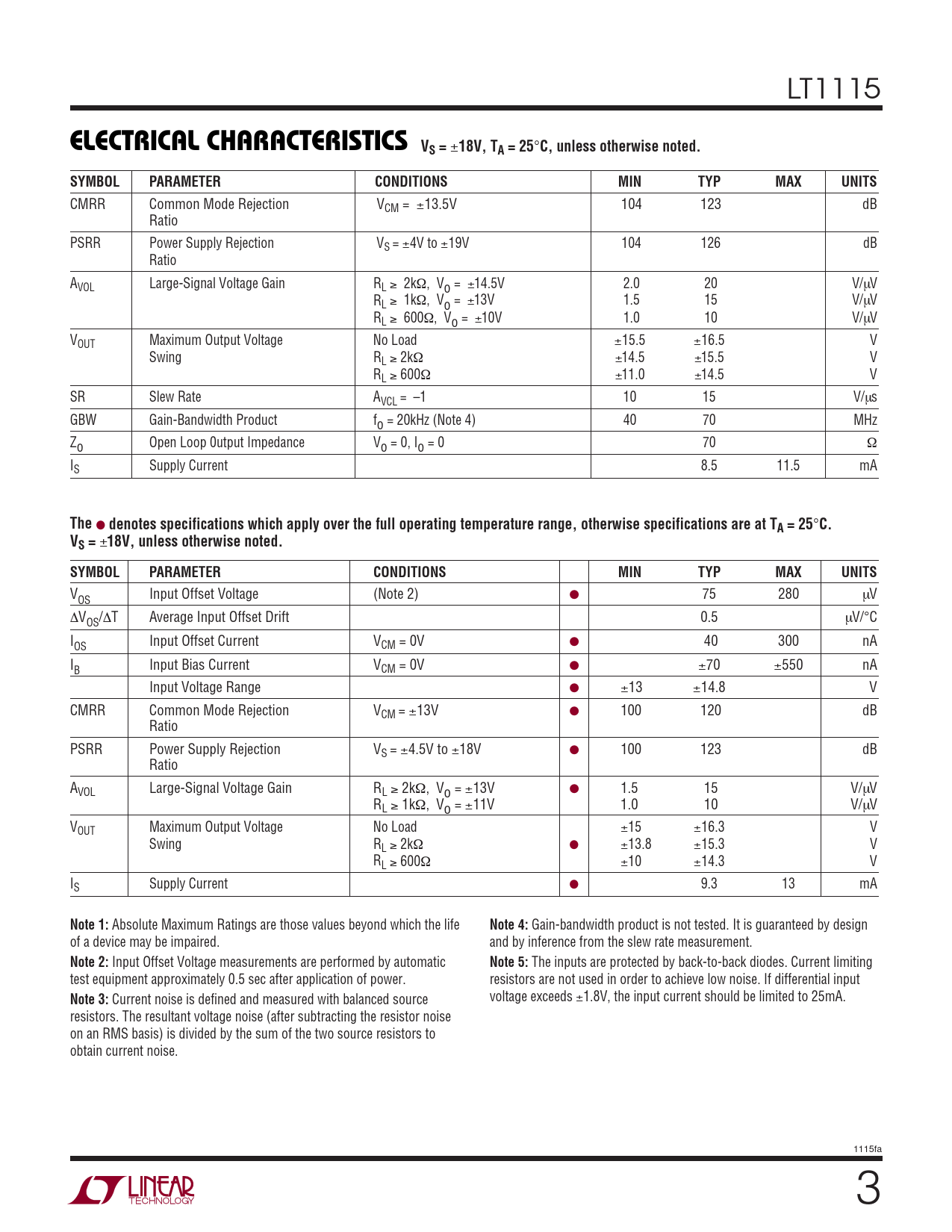

LT1115
ELECTRICAL CHARACTERISTICS VS =
±
18V, TA = 25
°
C, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
CMRR Common Mode Rejection VCM = ±13.5V 104 123 dB Ratio PSRR Power Supply Rejection VS = ±4V to ±19V 104 126 dB Ratio AVOL Large-Signal Voltage Gain RL ≥ 2kΩ, Vo = ±14.5V 2.0 20 V/µV RL ≥ 1kΩ, Vo = ±13V 1.5 15 V/µV RL ≥ 600Ω, Vo = ±10V 1.0 10 V/µV VOUT Maximum Output Voltage No Load ±15.5 ±16.5 V Swing RL ≥ 2kΩ ±14.5 ±15.5 V RL ≥ 600Ω ±11.0 ±14.5 V SR Slew Rate AVCL = –1 10 15 V/µs GBW Gain-Bandwidth Product fo = 20kHz (Note 4) 40 70 MHz Zo Open Loop 0utput Impedance Vo = 0, Io = 0 70 Ω IS Supply Current 8.5 11.5 mA
The
●
denotes specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS =
±
18V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
V Input Offset Voltage (Note 2) ● 75 280 OS µV ∆V / OS ∆T Average Input Offset Drift 0.5 µV/°C I Input Offset Current V OS CM = 0V ● 40 300 nA I Input Bias Current V B CM = 0V ● ±70 ±550 nA Input Voltage Range ● ±13 ±14.8 V CMRR Common Mode Rejection VCM = ±13V ● 100 120 dB Ratio PSRR Power Supply Rejection VS = ±4.5V to ±18V ● 100 123 dB Ratio AVOL Large-Signal Voltage Gain RL ≥ 2kΩ, Vo = ±13V ● 1.5 15 V/µV RL ≥ 1kΩ, Vo = ±11V 1.0 10 V/µV VOUT Maximum Output Voltage No Load ±15 ±16.3 V Swing RL ≥ 2kΩ ● ±13.8 ±15.3 V RL ≥ 600Ω ±10 ±14.3 V IS Supply Current ● 9.3 13 mA
Note 1:
Absolute Maximum Ratings are those values beyond which the life
Note 4:
Gain-bandwidth product is not tested. It is guaranteed by design of a device may be impaired. and by inference from the slew rate measurement.
Note 2:
Input Offset Voltage measurements are performed by automatic
Note 5:
The inputs are protected by back-to-back diodes. Current limiting test equipment approximately 0.5 sec after application of power. resistors are not used in order to achieve low noise. If differential input
Note 3:
Current noise is defined and measured with balanced source voltage exceeds ±1.8V, the input current should be limited to 25mA. resistors. The resultant voltage noise (after subtracting the resistor noise on an RMS basis) is divided by the sum of the two source resistors to obtain current noise. 1115fa 3
