Datasheet LT1190 (Analog Devices)
| Hersteller | Analog Devices |
| Beschreibung | Ultrahigh Speed Operational Amplifier |
| Seiten / Seite | 12 / 1 — FEATURES. DESCRIPTIO. APPLICATIO S. TYPICAL APPLICATIO. Video MUX Cable … |
| Dateiformat / Größe | PDF / 268 Kb |
| Dokumentensprache | Englisch |
FEATURES. DESCRIPTIO. APPLICATIO S. TYPICAL APPLICATIO. Video MUX Cable Driver. Inverter Pulse Response
Modelllinie für dieses Datenblatt
Textversion des Dokuments

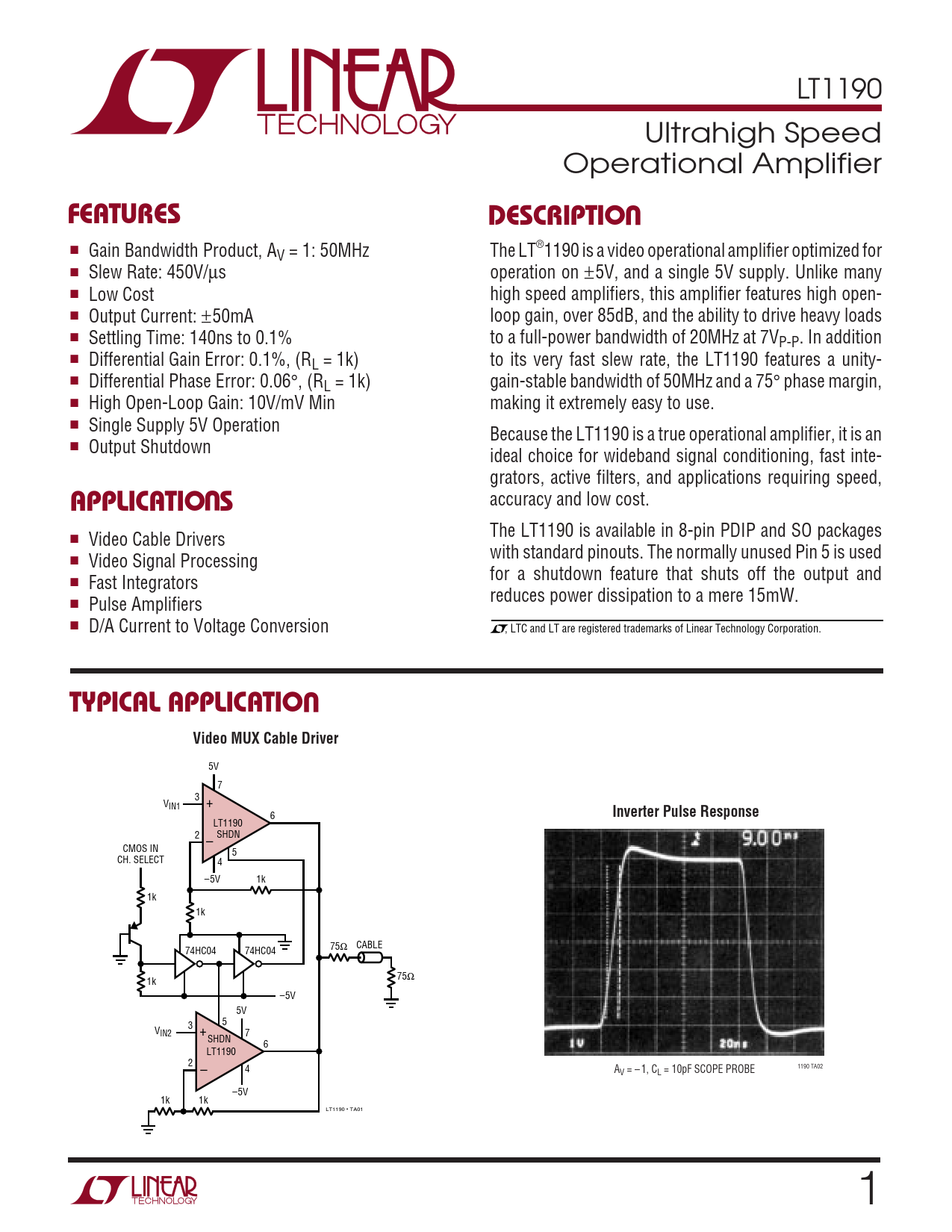

LT1190 Ultrahigh Speed Operational Amplifier
U FEATURES DESCRIPTIO
■ Gain Bandwidth Product, AV = 1: 50MHz The LT®1190 is a video operational amplifier optimized for ■ Slew Rate: 450V/µs operation on ±5V, and a single 5V supply. Unlike many ■ Low Cost high speed amplifiers, this amplifier features high open- ■ Output Current: ±50mA loop gain, over 85dB, and the ability to drive heavy loads ■ Settling Time: 140ns to 0.1% to a full-power bandwidth of 20MHz at 7VP-P. In addition ■ Differential Gain Error: 0.1%, (RL = 1k) to its very fast slew rate, the LT1190 features a unity- ■ Differential Phase Error: 0.06°, (RL = 1k) gain-stable bandwidth of 50MHz and a 75° phase margin, ■ High Open-Loop Gain: 10V/mV Min making it extremely easy to use. ■ Single Supply 5V Operation Because the LT1190 is a true operational amplifier, it is an ■ Output Shutdown ideal choice for wideband signal conditioning, fast inte-
U
grators, active filters, and applications requiring speed,
APPLICATIO S
accuracy and low cost. The LT1190 is available in 8-pin PDIP and SO packages ■ Video Cable Drivers with standard pinouts. The normally unused Pin 5 is used ■ Video Signal Processing for a shutdown feature that shuts off the output and ■ Fast Integrators reduces power dissipation to a mere 15mW. ■ Pulse Amplifiers ■ D/A Current to Voltage Conversion , LTC and LT are registered trademarks of Linear Technology Corporation.
U TYPICAL APPLICATIO Video MUX Cable Driver
5V 7 3 VIN1 + 6
Inverter Pulse Response
LT1190 2 SHDN – CMOS IN 5 CH. SELECT 4 –5V 1k 1k 1k 75Ω CABLE 74HC04 74HC04 75Ω 1k –5V 5V 5 3 VIN2 + 7 SHDN 6 LT1190 2 – 4 AV = – 1, CL = 10pF SCOPE PROBE 1190 TA02 –5V 1k 1k LT1190 • TA01 1
