| Beschreibung | Low Power Video Difference Amplifier |
| Seiten / Seite | 18 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). (OBSOLETE). PIN CONFIGURATION. … |
| Dateiformat / Größe | PDF / 596 Kb |
| Dokumentensprache | Englisch |

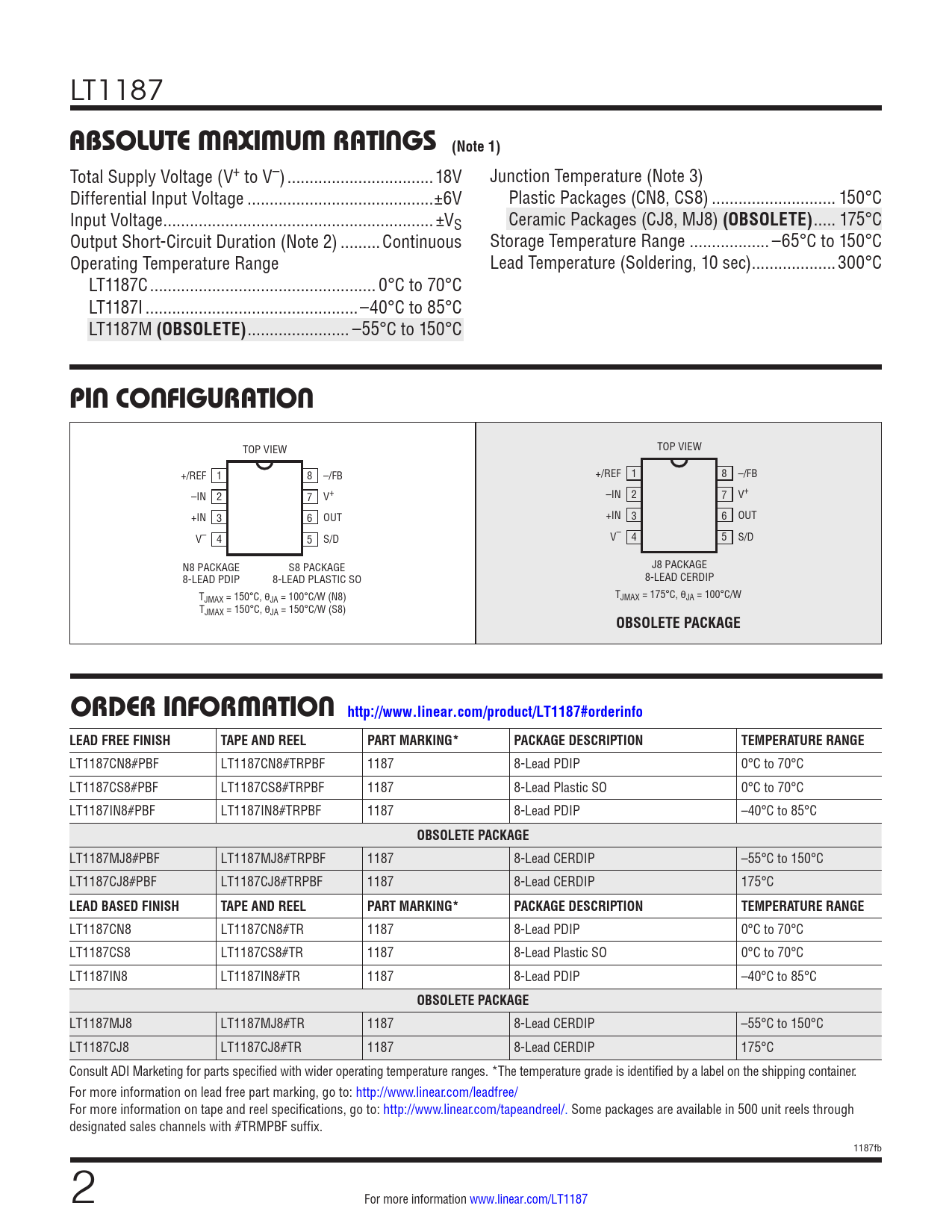

ABSOLUTE MAXIMUM RATINGS (Note 1). (OBSOLETE). PIN CONFIGURATION. OBSOLETE PACKAGE
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT1187
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) ...18V Junction Temperature (Note 3) Differential Input Voltage ..±6V Plastic Packages (CN8, CS8) .. 150°C Input Voltage ...±VS Ceramic Packages (CJ8, MJ8)
(OBSOLETE)
... 175°C Output Short-Circuit Duration (Note 2) ...Continuous Storage Temperature Range .. –65°C to 150°C Operating Temperature Range Lead Temperature (Soldering, 10 sec) ...300°C LT1187C ... 0°C to 70°C LT1187I ..–40°C to 85°C LT1187M
(OBSOLETE)
... –55°C to 150°C
PIN CONFIGURATION
TOP VIEW TOP VIEW +/REF 1 8 –/FB +/REF 1 8 –/FB –IN 2 7 V+ –IN 2 7 V+ +IN 3 6 OUT +IN 3 6 OUT V– 4 5 S/D V– 4 5 S/D N8 PACKAGE S8 PACKAGE J8 PACKAGE 8-LEAD PDIP 8-LEAD PLASTIC SO 8-LEAD CERDIP TJMAX = 150°C, θJA = 100°C/W (N8) TJMAX = 175°C, θJA = 100°C/W TJMAX = 150°C, θJA = 150°C/W (S8)
OBSOLETE PACKAGE ORDER INFORMATION http://www.linear.com/product/LT1187#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1187CN8#PBF LT1187CN8#TRPBF 1187 8-Lead PDIP 0°C to 70°C LT1187CS8#PBF LT1187CS8#TRPBF 1187 8-Lead Plastic SO 0°C to 70°C LT1187IN8#PBF LT1187IN8#TRPBF 1187 8-Lead PDIP –40°C to 85°C
OBSOLETE PACKAGE
LT1187MJ8#PBF LT1187MJ8#TRPBF 1187 8-Lead CERDIP –55°C to 150°C LT1187CJ8#PBF LT1187CJ8#TRPBF 1187 8-Lead CERDIP 175°C
LEAD BASED FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1187CN8 LT1187CN8#TR 1187 8-Lead PDIP 0°C to 70°C LT1187CS8 LT1187CS8#TR 1187 8-Lead Plastic SO 0°C to 70°C LT1187IN8 LT1187IN8#TR 1187 8-Lead PDIP –40°C to 85°C
OBSOLETE PACKAGE
LT1187MJ8 LT1187MJ8#TR 1187 8-Lead CERDIP –55°C to 150°C LT1187CJ8 LT1187CJ8#TR 1187 8-Lead CERDIP 175°C Consult ADI Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 1187fb 2 For more information www.linear.com/LT1187 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information ±5V Electrical Characteristics 5V Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Related Parts
