Datasheet LT1800 (Analog Devices)
| Hersteller | Analog Devices |
| Beschreibung | 80MHz, 25V/µs Low Power Rail-to-Rail Input and Output Precision Op Amp |
| Seiten / Seite | 18 / 1 — FEATURES. DESCRIPTION. Gain Bandwidth Product: 80MHz. Input Common Mode … |
| Dateiformat / Größe | PDF / 285 Kb |
| Dokumentensprache | Englisch |
FEATURES. DESCRIPTION. Gain Bandwidth Product: 80MHz. Input Common Mode Range Includes Both Rails. Output Swings Rail-to-Rail
Modelllinie für dieses Datenblatt
Textversion des Dokuments

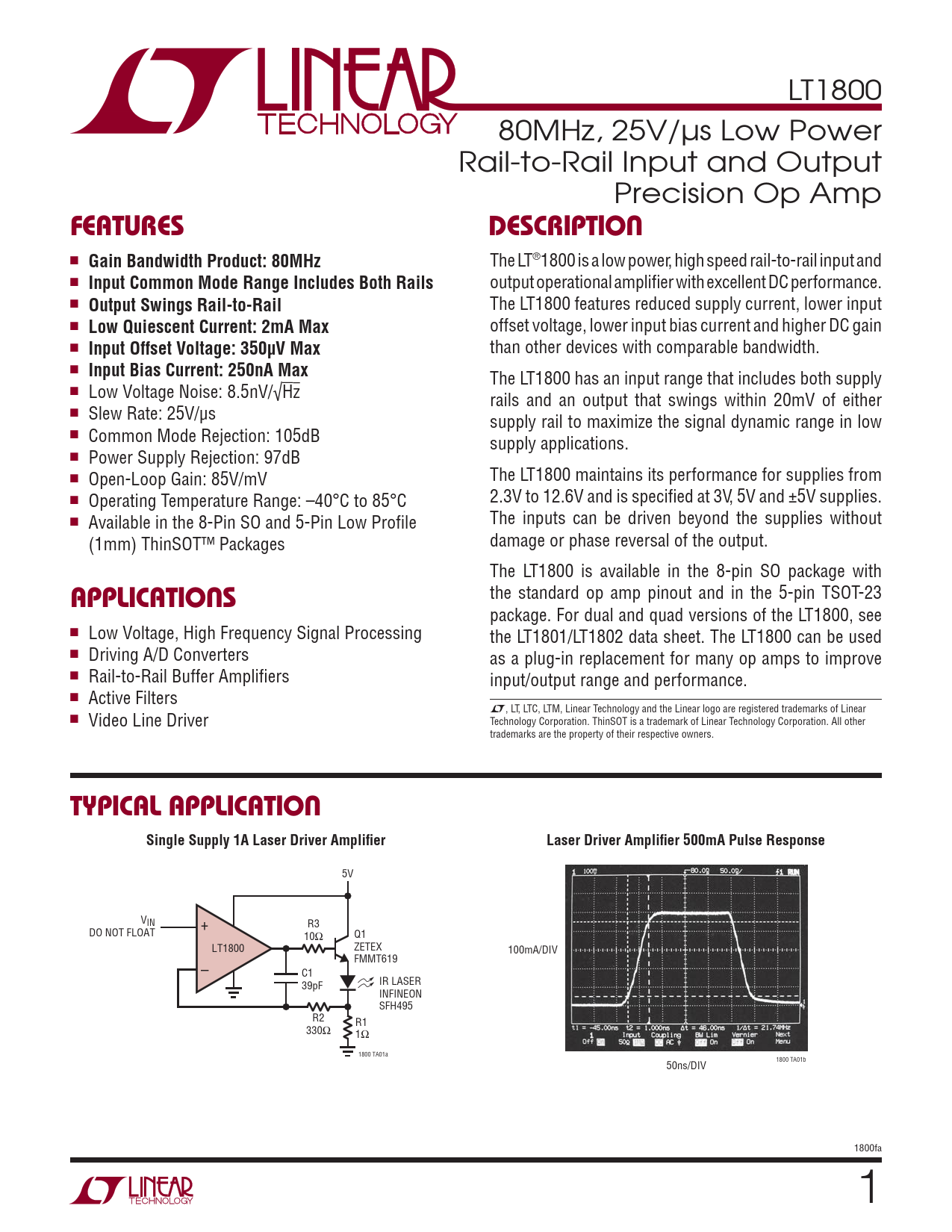

LT1800 80MHz, 25V/µs Low Power Rail-to-Rail Input and Output Precision Op Amp
FEATURES DESCRIPTION
n
Gain Bandwidth Product: 80MHz
The LT®1800 is a low power, high speed rail-to-rail input and n
Input Common Mode Range Includes Both Rails
output operational amplifi er with excellent DC performance. n
Output Swings Rail-to-Rail
The LT1800 features reduced supply current, lower input n
Low Quiescent Current: 2mA Max
offset voltage, lower input bias current and higher DC gain n
Input Offset Voltage: 350μV Max
than other devices with comparable bandwidth. n
Input Bias Current: 250nA Max
The LT1800 has an input range that includes both supply n Low Voltage Noise: 8.5nV/√Hz rails and an output that swings within 20mV of either n Slew Rate: 25V/μs supply rail to maximize the signal dynamic range in low n Common Mode Rejection: 105dB supply applications. n Power Supply Rejection: 97dB n The LT1800 maintains its performance for supplies from Open-Loop Gain: 85V/mV n 2.3V to 12.6V and is specifi ed at 3V, 5V and ±5V supplies. Operating Temperature Range: –40°C to 85°C n The inputs can be driven beyond the supplies without Available in the 8-Pin SO and 5-Pin Low Profi le damage or phase reversal of the output. (1mm) ThinSOT™ Packages The LT1800 is available in the 8-pin SO package with the standard op amp pinout and in the 5-pin TSOT-23
APPLICATIONS
package. For dual and quad versions of the LT1800, see n Low Voltage, High Frequency Signal Processing the LT1801/LT1802 data sheet. The LT1800 can be used n Driving A/D Converters as a plug-in replacement for many op amps to improve n Rail-to-Rail Buffer Amplifi ers input/output range and performance. n Active Filters L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear n Video Line Driver Technology Corporation. ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
TYPICAL APPLICATION Single Supply 1A Laser Driver Amplifi er Laser Driver Amplifi er 500mA Pulse Response
5V V + IN R3 DO NOT FLOAT Q1 10Ω LT1800 ZETEX 100mA/DIV – FMMT619 C1 IR LASER 39pF INFINEON SFH495 R2 R1 330Ω 1Ω 1800 TA01a 1800 TA01b 50ns/DIV 1800fa 1
FEATURES DESCRIPTION
n
Gain Bandwidth Product: 80MHz
The LT®1800 is a low power, high speed rail-to-rail input and n
Input Common Mode Range Includes Both Rails
output operational amplifi er with excellent DC performance. n
Output Swings Rail-to-Rail
The LT1800 features reduced supply current, lower input n
Low Quiescent Current: 2mA Max
offset voltage, lower input bias current and higher DC gain n
Input Offset Voltage: 350μV Max
than other devices with comparable bandwidth. n
Input Bias Current: 250nA Max
The LT1800 has an input range that includes both supply n Low Voltage Noise: 8.5nV/√Hz rails and an output that swings within 20mV of either n Slew Rate: 25V/μs supply rail to maximize the signal dynamic range in low n Common Mode Rejection: 105dB supply applications. n Power Supply Rejection: 97dB n The LT1800 maintains its performance for supplies from Open-Loop Gain: 85V/mV n 2.3V to 12.6V and is specifi ed at 3V, 5V and ±5V supplies. Operating Temperature Range: –40°C to 85°C n The inputs can be driven beyond the supplies without Available in the 8-Pin SO and 5-Pin Low Profi le damage or phase reversal of the output. (1mm) ThinSOT™ Packages The LT1800 is available in the 8-pin SO package with the standard op amp pinout and in the 5-pin TSOT-23
APPLICATIONS
package. For dual and quad versions of the LT1800, see n Low Voltage, High Frequency Signal Processing the LT1801/LT1802 data sheet. The LT1800 can be used n Driving A/D Converters as a plug-in replacement for many op amps to improve n Rail-to-Rail Buffer Amplifi ers input/output range and performance. n Active Filters L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear n Video Line Driver Technology Corporation. ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
TYPICAL APPLICATION Single Supply 1A Laser Driver Amplifi er Laser Driver Amplifi er 500mA Pulse Response
5V V + IN R3 DO NOT FLOAT Q1 10Ω LT1800 ZETEX 100mA/DIV – FMMT619 C1 IR LASER 39pF INFINEON SFH495 R2 R1 330Ω 1Ω 1800 TA01a 1800 TA01b 50ns/DIV 1800fa 1
