elecTrical characTerisTics. TA = 25°C, VS = ±5V, VCM = VOUT = 0V, VSHDN = OPEN, unless otherwise

elecTrical characTerisTics TA = 25°C, VS = ±5V, VCM = VOUT = 0V, VSHDN = OPEN, unless otherwise

Modelllinie für dieses Datenblatt

Textversion des Dokuments

LT6200/LT6200-5 LT6200-10/LT6201

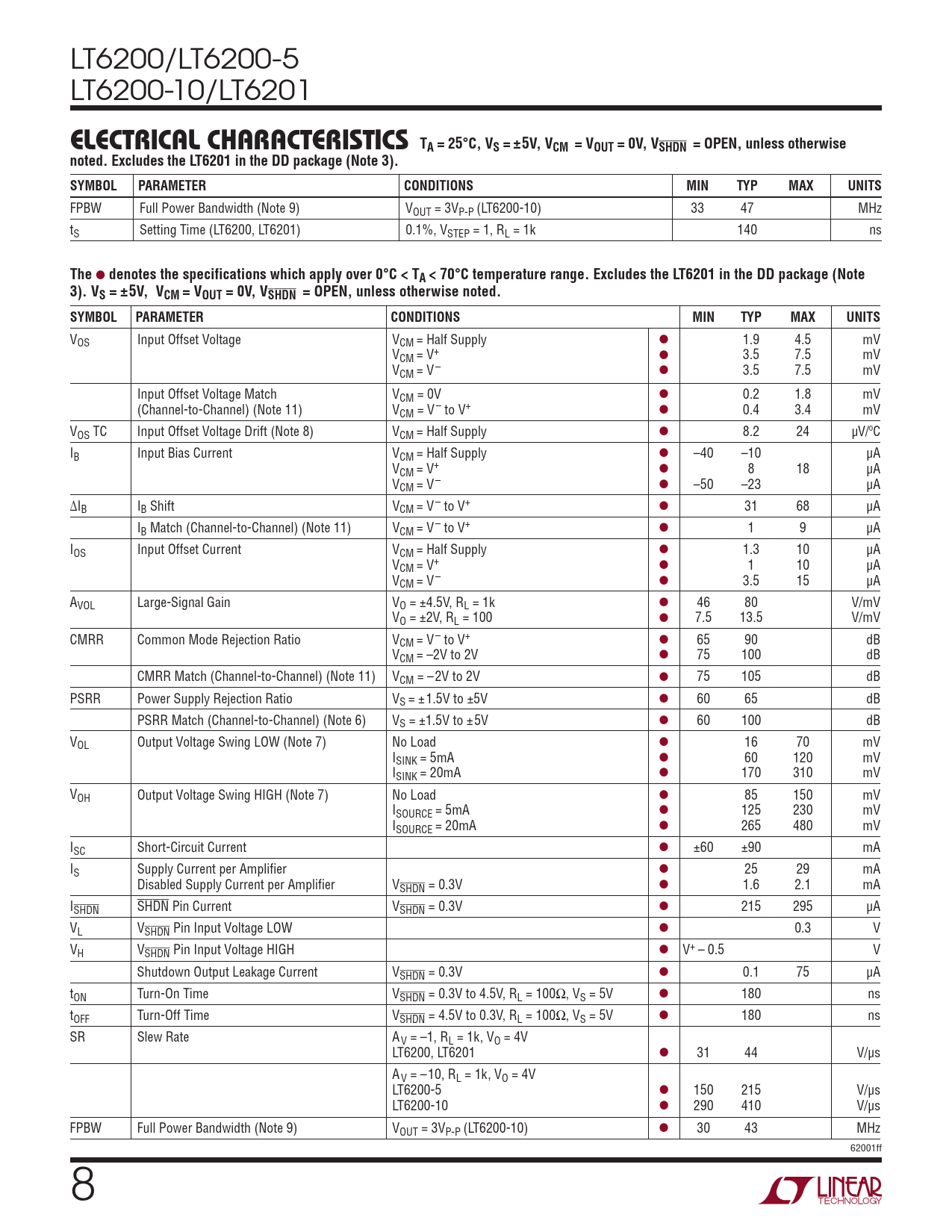

elecTrical characTerisTics TA = 25°C, VS = ±5V, VCM = VOUT = 0V, VSHDN = OPEN, unless otherwise noted. Excludes the LT6201 in the DD package (Note 3). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
FPBW Full Power Bandwidth (Note 9) VOUT = 3VP-P (LT6200-10) 33 47 MHz tS Setting Time (LT6200, LT6201) 0.1%, VSTEP = 1, RL = 1k 140 ns
The

denotes the specifications which apply over 0°C < TA < 70°C temperature range. Excludes the LT6201 in the DD package (Note 3). VS = ±5V, VCM = VOUT = 0V, VSHDN = OPEN, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = Half Supply l 1.9 4.5 mV VCM = V+ l 3.5 7.5 mV VCM = V– l 3.5 7.5 mV Input Offset Voltage Match VCM = 0V l 0.2 1.8 mV (Channel-to-Channel) (Note 11) VCM = V– to V+ l 0.4 3.4 mV VOS TC Input Offset Voltage Drift (Note 8) VCM = Half Supply l 8.2 24 µV/ºC IB Input Bias Current VCM = Half Supply l –40 –10 µA VCM = V+ l 8 18 µA VCM = V– l –50 –23 µA ∆IB IB Shift VCM = V– to V+ l 31 68 µA IB Match (Channel-to-Channel) (Note 11) VCM = V– to V+ l 1 9 µA IOS Input Offset Current VCM = Half Supply l 1.3 10 µA VCM = V+ l 1 10 µA VCM = V– l 3.5 15 µA AVOL Large-Signal Gain VO = ±4.5V, RL = 1k l 46 80 V/mV VO = ±2V, RL = 100 l 7.5 13.5 V/mV CMRR Common Mode Rejection Ratio VCM = V– to V+ l 65 90 dB VCM = –2V to 2V l 75 100 dB CMRR Match (Channel-to-Channel) (Note 11) VCM = –2V to 2V l 75 105 dB PSRR Power Supply Rejection Ratio VS = ±1.5V to ±5V l 60 65 dB PSRR Match (Channel-to-Channel) (Note 6) VS = ±1.5V to ±5V l 60 100 dB VOL Output Voltage Swing LOW (Note 7) No Load l 16 70 mV ISINK = 5mA l 60 120 mV ISINK = 20mA l 170 310 mV VOH Output Voltage Swing HIGH (Note 7) No Load l 85 150 mV ISOURCE = 5mA l 125 230 mV ISOURCE = 20mA l 265 480 mV ISC Short-Circuit Current l ±60 ±90 mA IS Supply Current per Amplifier l 25 29 mA Disabled Supply Current per Amplifier VSHDN = 0.3V l 1.6 2.1 mA ISHDN SHDN Pin Current VSHDN = 0.3V l 215 295 µA VL VSHDN Pin Input Voltage LOW l 0.3 V VH VSHDN Pin Input Voltage HIGH l V+ – 0.5 V Shutdown Output Leakage Current VSHDN = 0.3V l 0.1 75 µA tON Turn-On Time VSHDN = 0.3V to 4.5V, RL = 100Ω, VS = 5V l 180 ns tOFF Turn-Off Time VSHDN = 4.5V to 0.3V, RL = 100Ω, VS = 5V l 180 ns SR Slew Rate AV = –1, RL = 1k, VO = 4V LT6200, LT6201 l 31 44 V/µs AV = –10, RL = 1k, VO = 4V LT6200-5 l 150 215 V/µs LT6200-10 l 290 410 V/µs FPBW Full Power Bandwidth (Note 9) VOUT = 3VP-P (LT6200-10) l 30 43 MHz 62001ff 8 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Revision History Typical Application Related Parts
