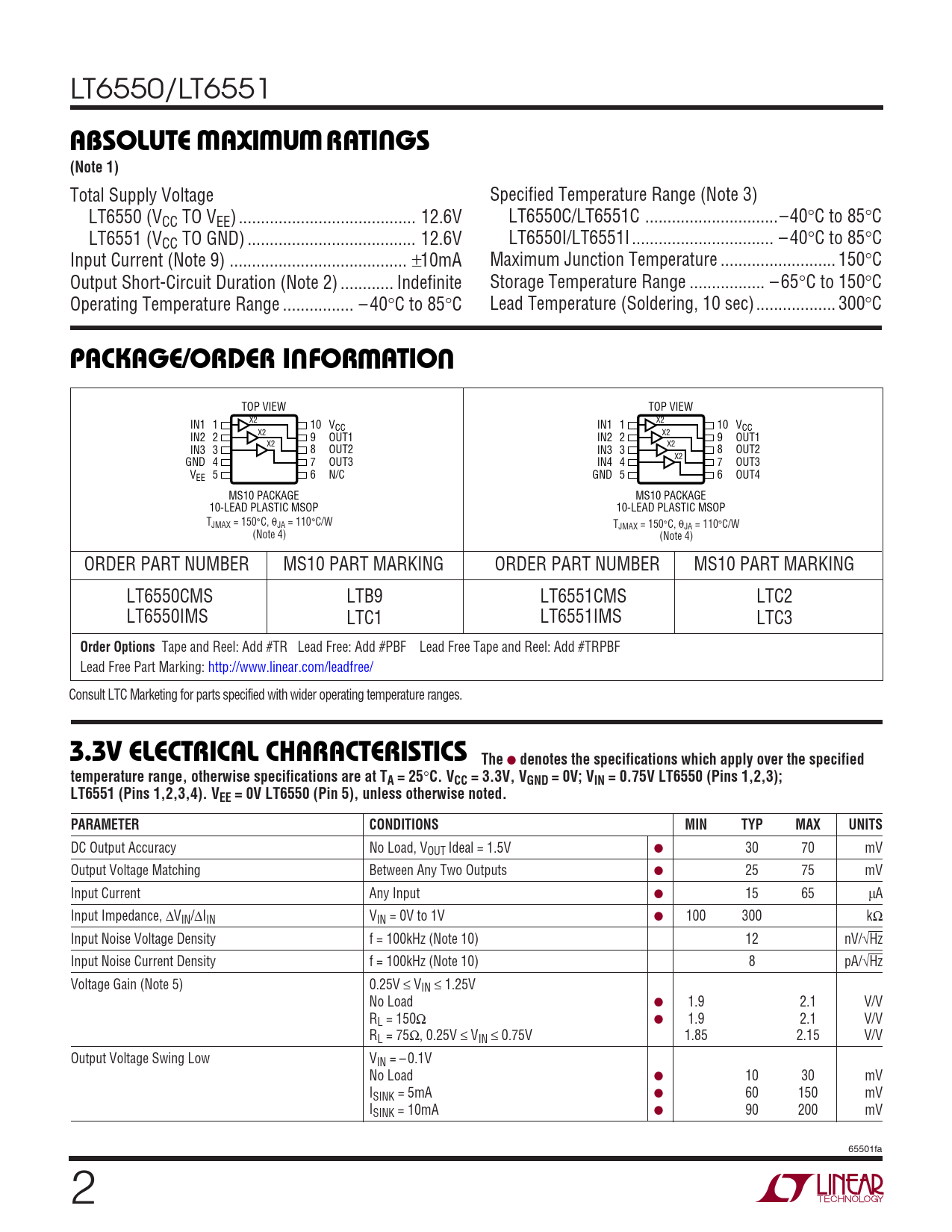

LT6550/LT6551
W W W U ABSOLUTE AXI U RATI GS (Note 1)
Total Supply Voltage Specified Temperature Range (Note 3) LT6550 (VCC TO VEE) .. 12.6V LT6550C/LT6551C ..–40°C to 85°C LT6551 (VCC TO GND) .. 12.6V LT6550I/LT6551I .. – 40°C to 85°C Input Current (Note 9) .. ±10mA Maximum Junction Temperature .. 150°C Output Short-Circuit Duration (Note 2) .. Indefinite Storage Temperature Range ... – 65°C to 150°C Operating Temperature Range .. – 40°C to 85°C Lead Temperature (Soldering, 10 sec).. 300°C
U W U PACKAGE/ORDER I FOR ATIO
TOP VIEW TOP VIEW X2 X2 IN1 1 10 V IN1 1 10 V CC CC X2 X2 IN2 2 9 OUT1 IN2 2 9 OUT1 X2 X2 IN3 3 8 OUT2 IN3 3 8 OUT2 X2 GND 4 7 OUT3 IN4 4 7 OUT3 V 5 6 N/C GND 5 6 OUT4 EE MS10 PACKAGE MS10 PACKAGE 10-LEAD PLASTIC MSOP 10-LEAD PLASTIC MSOP TJMAX = 150°C, θJA = 110°C/W TJMAX = 150°C, θJA = 110°C/W (Note 4) (Note 4) ORDER PART NUMBER MS10 PART MARKING ORDER PART NUMBER MS10 PART MARKING LT6550CMS LTB9 LT6551CMS LTC2 LT6550IMS LTC1 LT6551IMS LTC3
Order Options
Tape and Reel: Add #TR Lead Free: Add #PBF Lead Free Tape and Reel: Add #TRPBF Lead Free Part Marking: http://www.linear.com/leadfree/ Consult LTC Marketing for parts specified with wider operating temperature ranges.
3.3V ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the specified temperature range, otherwise specifications are at TA = 25
°
C. VCC = 3.3V, VGND = 0V; VIN = 0.75V LT6550 (Pins 1,2,3); LT6551 (Pins 1,2,3,4). VEE = 0V LT6550 (Pin 5), unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
DC Output Accuracy No Load, VOUT Ideal = 1.5V ● 30 70 mV Output Voltage Matching Between Any Two Outputs ● 25 75 mV Input Current Any Input ● 15 65 µA Input Impedance, ∆VIN/∆IIN VIN = 0V to 1V ● 100 300 kΩ Input Noise Voltage Density f = 100kHz (Note 10) 12 nV/√Hz Input Noise Current Density f = 100kHz (Note 10) 8 pA/√Hz Voltage Gain (Note 5) 0.25V ≤ VIN ≤ 1.25V No Load ● 1.9 2.1 V/V RL = 150Ω ● 1.9 2.1 V/V RL = 75Ω, 0.25V ≤ VIN ≤ 0.75V 1.85 2.15 V/V Output Voltage Swing Low VIN = – 0.1V No Load ● 10 30 mV ISINK = 5mA ● 60 150 mV ISINK = 10mA ● 90 200 mV 65501fa 2
