RH1028M/RH1128M

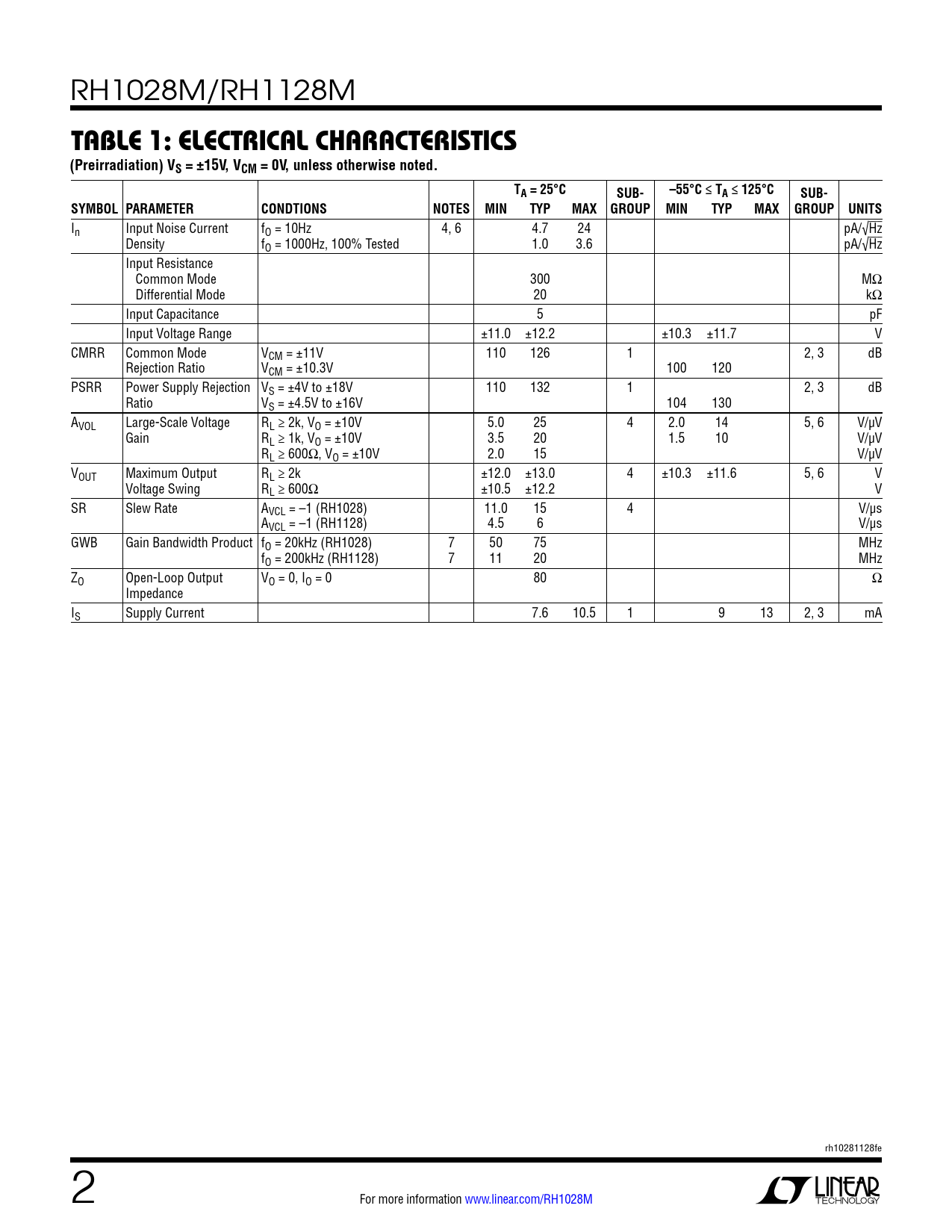

tAble 1: electricAl chArActeristics (Preirradiation) VS = ±15V, VCM = 0V, unless otherwise noted. TA = 25°C SUB- –55°C ≤ TA ≤ 125°C SUB- SYMBOL PARAMETER CONDTIONS NOTES MIN TYP MAX GROUP MIN TYP MAX GROUP UNITS
In Input Noise Current fO = 10Hz 4, 6 4.7 24 pA/√Hz Density fO = 1000Hz, 100% Tested 1.0 3.6 pA/√Hz Input Resistance Common Mode 300 MΩ Differential Mode 20 kΩ Input Capacitance 5 pF Input Voltage Range ±11.0 ±12.2 ±10.3 ±11.7 V CMRR Common Mode VCM = ±11V 110 126 1 2, 3 dB Rejection Ratio VCM = ±10.3V 100 120 PSRR Power Supply Rejection VS = ±4V to ±18V 110 132 1 2, 3 dB Ratio VS = ±4.5V to ±16V 104 130 AVOL Large-Scale Voltage RL ≥ 2k, VO = ±10V 5.0 25 4 2.0 14 5, 6 V/µV Gain RL ≥ 1k, VO = ±10V 3.5 20 1.5 10 V/µV RL ≥ 600Ω, VO = ±10V 2.0 15 V/µV VOUT Maximum Output RL ≥ 2k ±12.0 ±13.0 4 ±10.3 ±11.6 5, 6 V Voltage Swing RL ≥ 600Ω ±10.5 ±12.2 V SR Slew Rate AVCL = –1 (RH1028) 11.0 15 4 V/µs AVCL = –1 (RH1128) 4.5 6 V/µs GWB Gain Bandwidth Product fO = 20kHz (RH1028) 7 50 75 MHz fO = 200kHz (RH1128) 7 11 20 MHz ZO Open-Loop Output VO = 0, IO = 0 80 Ω Impedance IS Supply Current 7.6 10.5 1 9 13 2, 3 mA rh10281128fe 2 For more information www.linear.com/RH1028M Document Outline Description Electrical Characteristics
