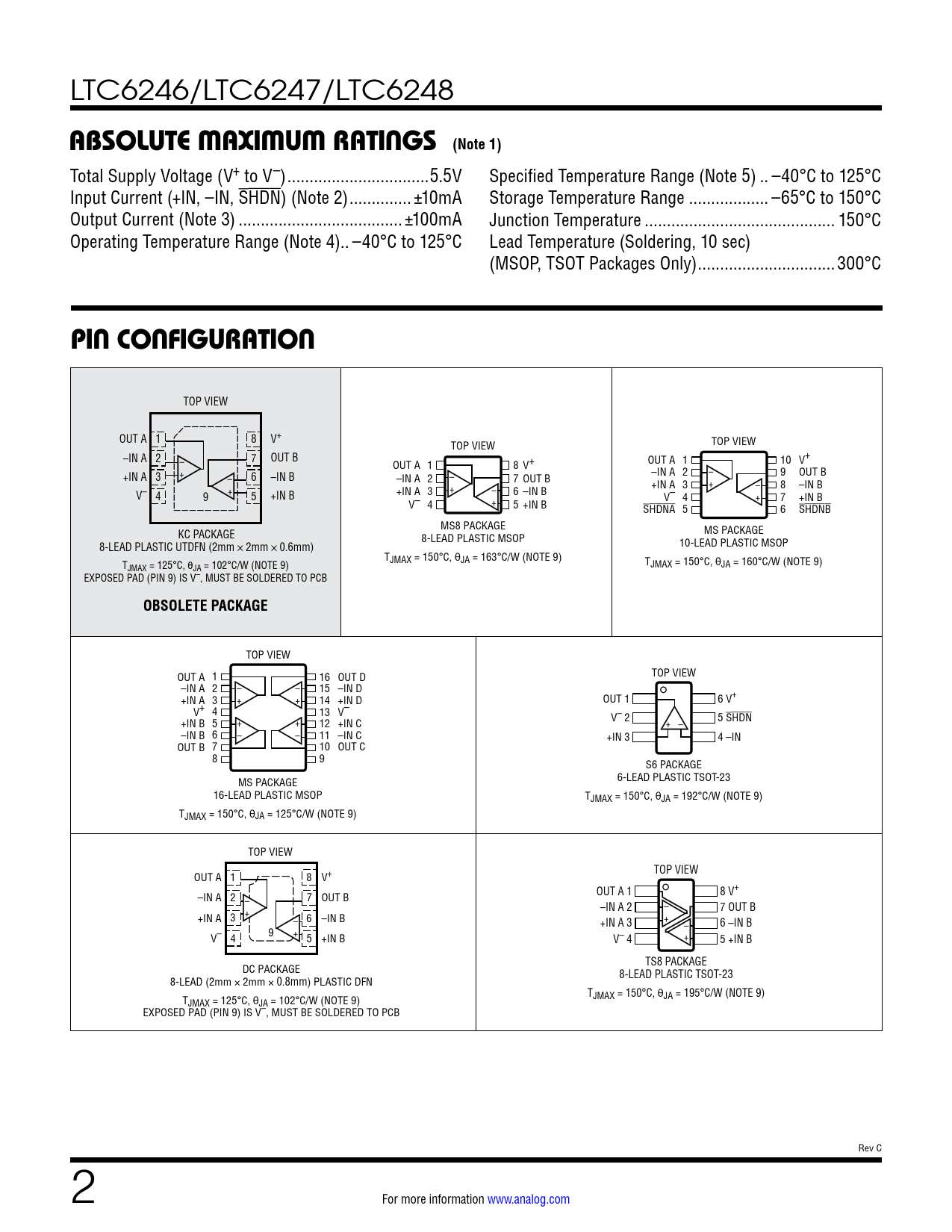

LTC6246/LTC6247/LTC6248
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) ..5.5V Specified Temperature Range (Note 5) .. –40°C to 125°C Input Current (+IN, –IN, SHDN) (Note 2) .. ±10mA Storage Temperature Range .. –65°C to 150°C Output Current (Note 3) ...±100mA Junction Temperature ... 150°C Operating Temperature Range (Note 4).. –40°C to 125°C Lead Temperature (Soldering, 10 sec) (MSOP, TSOT Packages Only) ...300°C
PIN CONFIGURATION
TOP VIEW OUT A 1 8 V+ TOP VIEW TOP VIEW –IN A 2 – 7 OUT B OUT A 1 10 V+ + OUT A 1 8 V+ – +IN A 3 – 6 –IN B – –IN A 2 7 OUT B –IN A 2 9 OUT B + – + + – +IN A 3 8 –IN B V– 4 9 5 +IN B +IN A 3 6 –IN B + V– 4 + 7 +IN B V– 4 5 +IN B SHDNA 5 6 SHDNB MS8 PACKAGE KC PACKAGE MS PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD PLASTIC UTDFN (2mm × 2mm × 0.6mm) 10-LEAD PLASTIC MSOP T T JMAX = 150°C, θJA = 163°C/W (NOTE 9) T JMAX = 125°C, θJA = 102°C/W (NOTE 9) JMAX = 150°C, θJA = 160°C/W (NOTE 9) EXPOSED PAD (PIN 9) IS V–, MUST BE SOLDERED TO PCB
OBSOLETE PACKAGE
TOP VIEW OUT A 1 16 OUT D TOP VIEW –IN A 2 – – 15 –IN D +IN A 3 + + 14 +IN D OUT 1 6 V+ V+ 4 13 V– +IN B 5 + + 12 +IN C V– 2 5 SHDN + – –IN B 6 – – 11 –IN C +IN 3 4 –IN OUT B 7 10 OUT C 8 9 S6 PACKAGE MS PACKAGE 6-LEAD PLASTIC TSOT-23 16-LEAD PLASTIC MSOP TJMAX = 150°C, θJA = 192°C/W (NOTE 9) TJMAX = 150°C, θJA = 125°C/W (NOTE 9) TOP VIEW TOP VIEW OUT A 1 8 V+ –IN A 2 – 7 OUT B OUT A 1 8 V+ – + –IN A 2 7 OUT B +IN A 3 – 6 –IN B + – + +IN A 3 6 –IN B V– 9 4 5 +IN B V– 4 + 5 +IN B TS8 PACKAGE DC PACKAGE 8-LEAD PLASTIC TSOT-23 8-LEAD (2mm × 2mm × 0.8mm) PLASTIC DFN T T JMAX = 150°C, θJA = 195°C/W (NOTE 9) JMAX = 125°C, θJA = 102°C/W (NOTE 9) EXPOSED PAD (PIN 9) IS V–, MUST BE SOLDERED TO PCB Rev C 2 For more information www.analog.com Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Typical Applications Revision History Typical Application Related Parts
