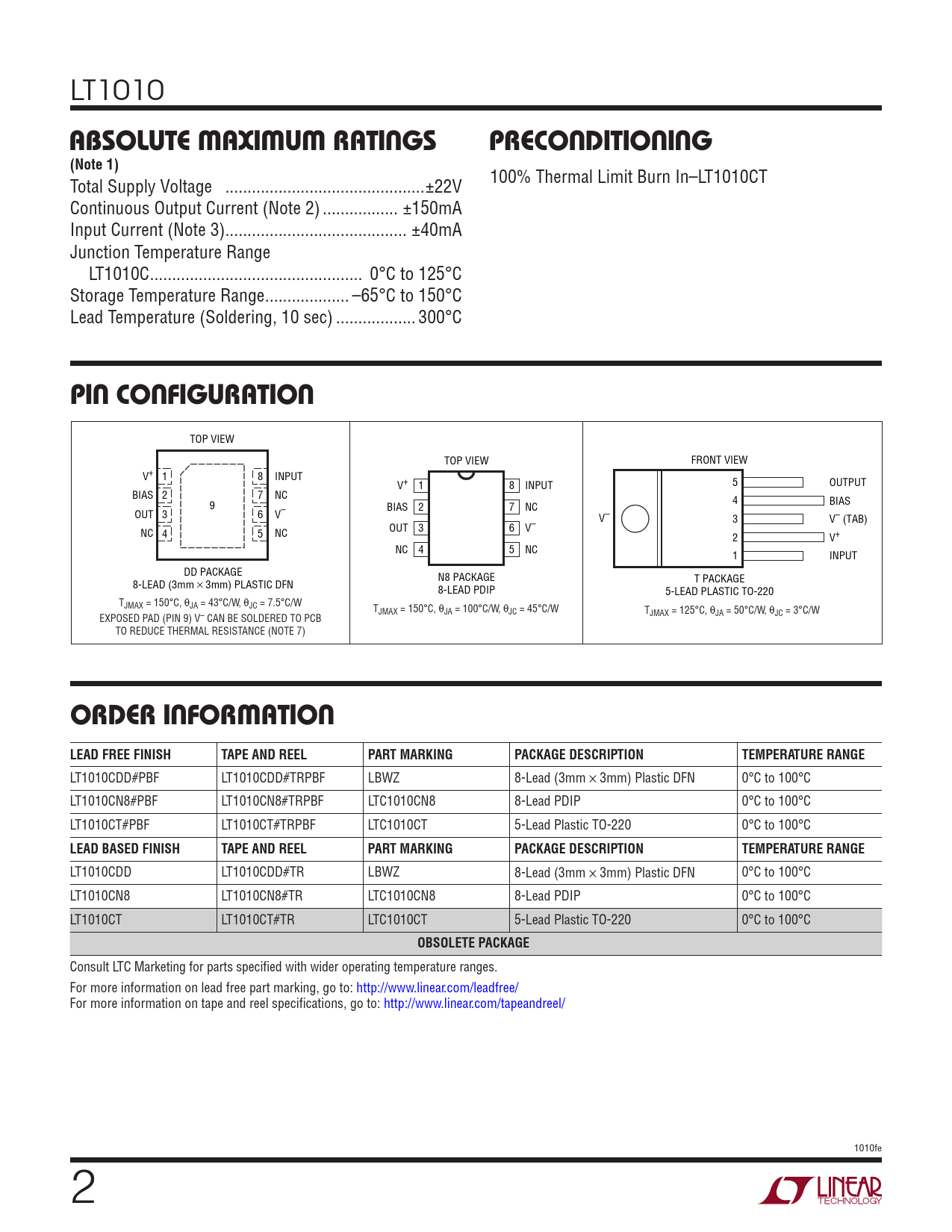

LT1010
ABSOLUTE MAXIMUM RATINGS PRECONDITIONING (Note 1)
Total Supply Voltage ...±22V 100% Thermal Limit Burn In–LT1010CT Continuous Output Current (Note 2) ... ±150mA Input Current (Note 3) ... ±40mA Junction Temperature Range LT1010C .. 0°C to 125°C Storage Temperature Range ... –65°C to 150°C Lead Temperature (Soldering, 10 sec) .. 300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW FRONT VIEW V+ 1 8 INPUT V+ 1 8 INPUT 5 OUTPUT BIAS 2 7 NC 9 BIAS 2 7 NC 4 BIAS OUT 3 6 V– V– 3 V– (TAB) NC 4 5 NC OUT 3 6 V– 2 V+ NC 4 5 NC 1 INPUT DD PACKAGE N8 PACKAGE 8-LEAD (3mm × 3mm) PLASTIC DFN T PACKAGE 8-LEAD PDIP 5-LEAD PLASTIC TO-220 T JMAX = 150°C, θJA = 43°C/W, θJC = 7.5°C/W TJMAX = 150°C, θJA = 100°C/W, θJC = 45°C/W T EXPOSED PAD (PIN 9) V– CAN BE SOLDERED TO PCB JMAX = 125°C, θJA = 50°C/W, θJC = 3°C/W TO REDUCE THERMAL RESISTANCE (NOTE 7)
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1010CDD#PBF LT1010CDD#TRPBF LBWZ 8-Lead (3mm × 3mm) Plastic DFN 0°C to 100°C LT1010CN8#PBF LT1010CN8#TRPBF LTC1010CN8 8-Lead PDIP 0°C to 100°C LT1010CT#PBF LT1010CT#TRPBF LTC1010CT 5-Lead Plastic TO-220 0°C to 100°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1010CDD LT1010CDD#TR LBWZ 8-Lead (3mm × 3mm) Plastic DFN 0°C to 100°C LT1010CN8 LT1010CN8#TR LTC1010CN8 8-Lead PDIP 0°C to 100°C LT1010CT LT1010CT#TR LTC1010CT 5-Lead Plastic TO-220 0°C to 100°C
OBSOLETE PACKAGE
Consult LTC Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 1010fe 2 Document Outline Fteatures Applications Description Typical Application Absolute Maximum Ratings Preconditioning Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Schematic Diagram Definition Of Terms Package Description Revision History Related Parts
