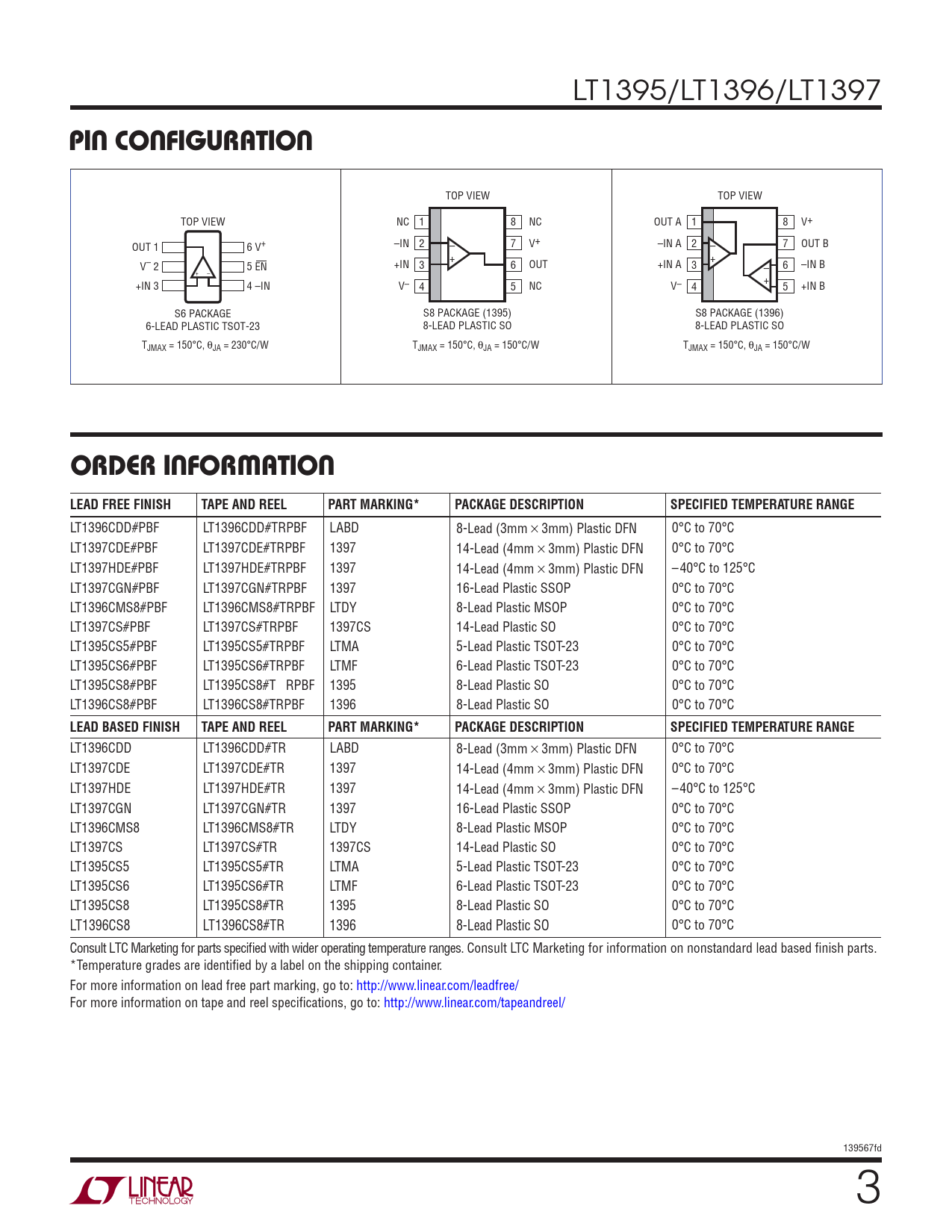

LT1395/LT1396/LT1397
PIN CONFIGURATION
TOP VIEW TOP VIEW TOP VIEW NC 1 8 NC OUT A 1 8 V+ OUT 1 6 V+ –IN 2 7 V+ – –IN A 2 7 OUT B – + + V– 2 5 EN +IN 3 6 OUT +IN A 3 6 –IN B – + – + +IN 3 4 –IN V– 4 5 NC V– 4 5 +IN B S6 PACKAGE S8 PACKAGE (1395) S8 PACKAGE (1396) 6-LEAD PLASTIC TSOT-23 8-LEAD PLASTIC SO 8-LEAD PLASTIC SO TJMAX = 150°C, θJA = 230°C/W TJMAX = 150°C, θJA = 150°C/W TJMAX = 150°C, θJA = 150°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1396CDD#PBF LT1396CDD#TRPBF LABD 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LT1397CDE#PBF LT1397CDE#TRPBF 1397 14-Lead (4mm × 3mm) Plastic DFN 0°C to 70°C LT1397HDE#PBF LT1397HDE#TRPBF 1397 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT1397CGN#PBF LT1397CGN#TRPBF 1397 16-Lead Plastic SSOP 0°C to 70°C LT1396CMS8#PBF LT1396CMS8#TRPBF LTDY 8-Lead Plastic MSOP 0°C to 70°C LT1397CS#PBF LT1397CS#TRPBF 1397CS 14-Lead Plastic SO 0°C to 70°C LT1395CS5#PBF LT1395CS5#TRPBF LTMA 5-Lead Plastic TSOT-23 0°C to 70°C LT1395CS6#PBF LT1395CS6#TRPBF LTMF 6-Lead Plastic TSOT-23 0°C to 70°C LT1395CS8#PBF LT1395CS8#T RPBF 1395 8-Lead Plastic SO 0°C to 70°C LT1396CS8#PBF LT1396CS8#TRPBF 1396 8-Lead Plastic SO 0°C to 70°C
LEAD BASED FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1396CDD LT1396CDD#TR LABD 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LT1397CDE LT1397CDE#TR 1397 14-Lead (4mm × 3mm) Plastic DFN 0°C to 70°C LT1397HDE LT1397HDE#TR 1397 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT1397CGN LT1397CGN#TR 1397 16-Lead Plastic SSOP 0°C to 70°C LT1396CMS8 LT1396CMS8#TR LTDY 8-Lead Plastic MSOP 0°C to 70°C LT1397CS LT1397CS#TR 1397CS 14-Lead Plastic SO 0°C to 70°C LT1395CS5 LT1395CS5#TR LTMA 5-Lead Plastic TSOT-23 0°C to 70°C LT1395CS6 LT1395CS6#TR LTMF 6-Lead Plastic TSOT-23 0°C to 70°C LT1395CS8 LT1395CS8#TR 1395 8-Lead Plastic SO 0°C to 70°C LT1396CS8 LT1396CS8#TR 1396 8-Lead Plastic SO 0°C to 70°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on nonstandard lead based fi nish parts. *Temperature grades are identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 139567fd 3
