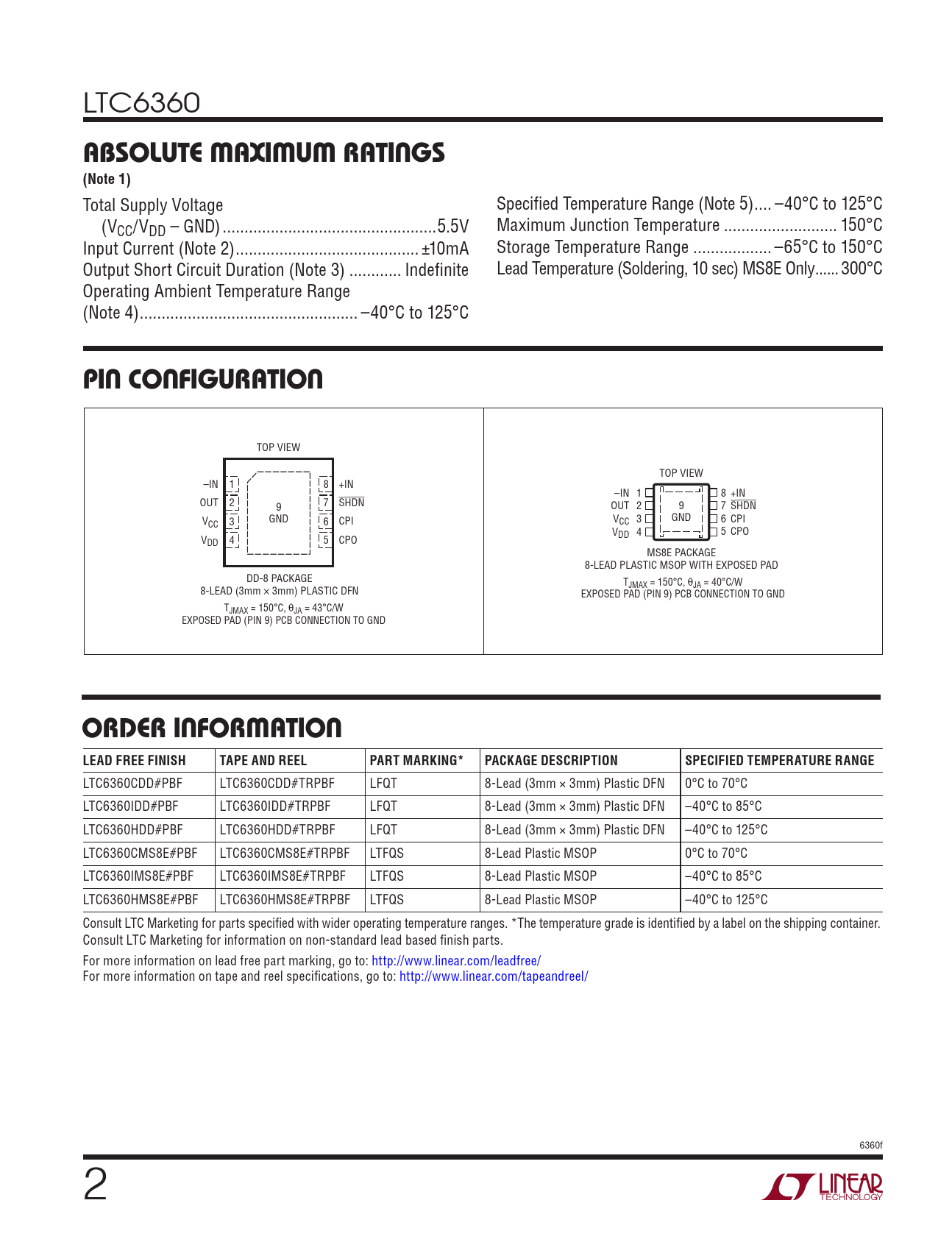

LTC6360
absoluTe MaxiMuM raTings (Note 1)
Total Supply Voltage Specified Temperature Range (Note 5) .. –40°C to 125°C (VCC/VDD – GND) ...5.5V Maximum Junction Temperature .. 150°C Input Current (Note 2) .. ±10mA Storage Temperature Range .. –65°C to 150°C Output Short Circuit Duration (Note 3) .. Indefinite Lead Temperature (Soldering, 10 sec) MS8E Only ..300°C Operating Ambient Temperature Range (Note 4) .. –40°C to 125°C
pin conFiguraTion
TOP VIEW TOP VIEW –IN 1 8 +IN –IN 1 8 +IN OUT 2 7 9 SHDN OUT 2 9 7 SHDN V GND CC 3 GND 6 CPI VCC 3 6 CPI VDD 4 5 CPO VDD 4 5 CPO MS8E PACKAGE 8-LEAD PLASTIC MSOP WITH EXPOSED PAD DD-8 PACKAGE T 8-LEAD (3mm × 3mm) PLASTIC DFN JMAX = 150°C, θJA = 40°C/W EXPOSED PAD (PIN 9) PCB CONNECTION TO GND TJMAX = 150°C, θJA = 43°C/W EXPOSED PAD (PIN 9) PCB CONNECTION TO GND
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6360CDD#PBF LTC6360CDD#TRPBF LFQT 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC6360IDD#PBF LTC6360IDD#TRPBF LFQT 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC6360HDD#PBF LTC6360HDD#TRPBF LFQT 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC6360CMS8E#PBF LTC6360CMS8E#TRPBF LTFQS 8-Lead Plastic MSOP 0°C to 70°C LTC6360IMS8E#PBF LTC6360IMS8E#TRPBF LTFQS 8-Lead Plastic MSOP –40°C to 85°C LTC6360HMS8E#PBF LTC6360HMS8E#TRPBF LTFQS 8-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http:/ www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 6360f 2 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order InFormation Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit Operation Applications Information Package Description Typical Application Related Parts
