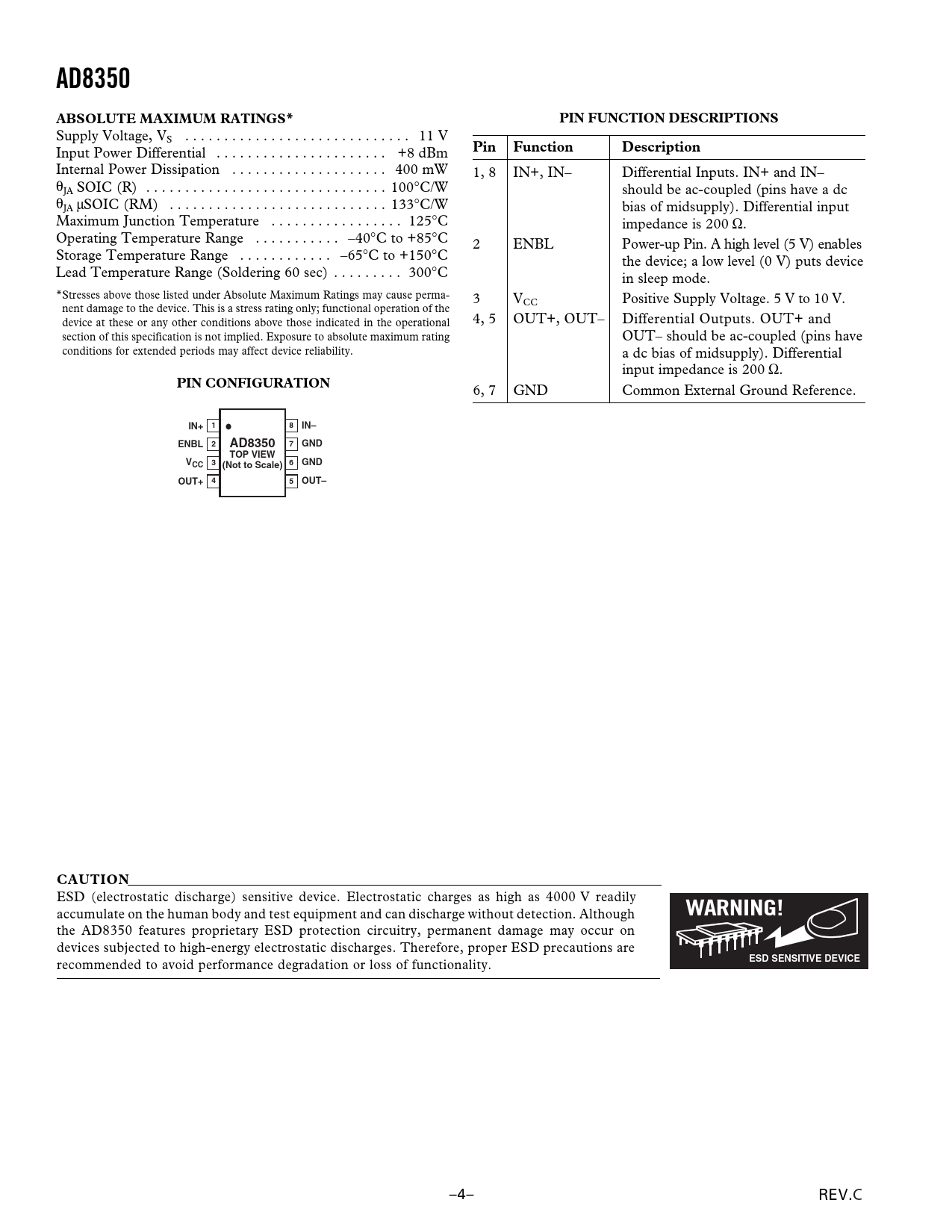

AD8350ABSOLUTE MAXIMUM RATINGS*PIN FUNCTION DESCRIPTIONS Supply Voltage, VS . 11 V PinFunctionDescription Input Power Differential . +8 dBm Internal Power Dissipation . 400 mW 1, 8 IN+, IN– Differential Inputs. IN+ and IN– θJA SOIC (R) . 100°C/W should be ac-coupled (pins have a dc θJA μSOIC (RM) . 133°C/W bias of midsupply). Differential input Maximum Junction Temperature . 125°C impedance is 200 Ω. Operating Temperature Range . –40°C to +85°C 2 ENBL Power-up Pin. A high level (5 V) enables Storage Temperature Range . –65°C to +150°C the device; a low level (0 V) puts device Lead Temperature Range (Soldering 60 sec) . 300°C in sleep mode. *Stresses above those listed under Absolute Maximum Ratings may cause perma- 3 VCC Positive Supply Voltage. 5 V to 10 V. nent damage to the device. This is a stress rating only; functional operation of the 4, 5 OUT+, OUT– Differential Outputs. OUT+ and device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating OUT– should be ac-coupled (pins have conditions for extended periods may affect device reliability. a dc bias of midsupply). Differential input impedance is 200 Ω. PIN CONFIGURATION 6, 7 GND Common External Ground Reference. IN+ 18IN–ENBL 2AD83507GNDTOP VIEWV3CC(Not to Scale) 6 GNDOUT+ 45OUT–CAUTION ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although WARNING! the AD8350 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are ESD SENSITIVE DEVICE recommended to avoid performance degradation or loss of functionality. –4– REV. C
