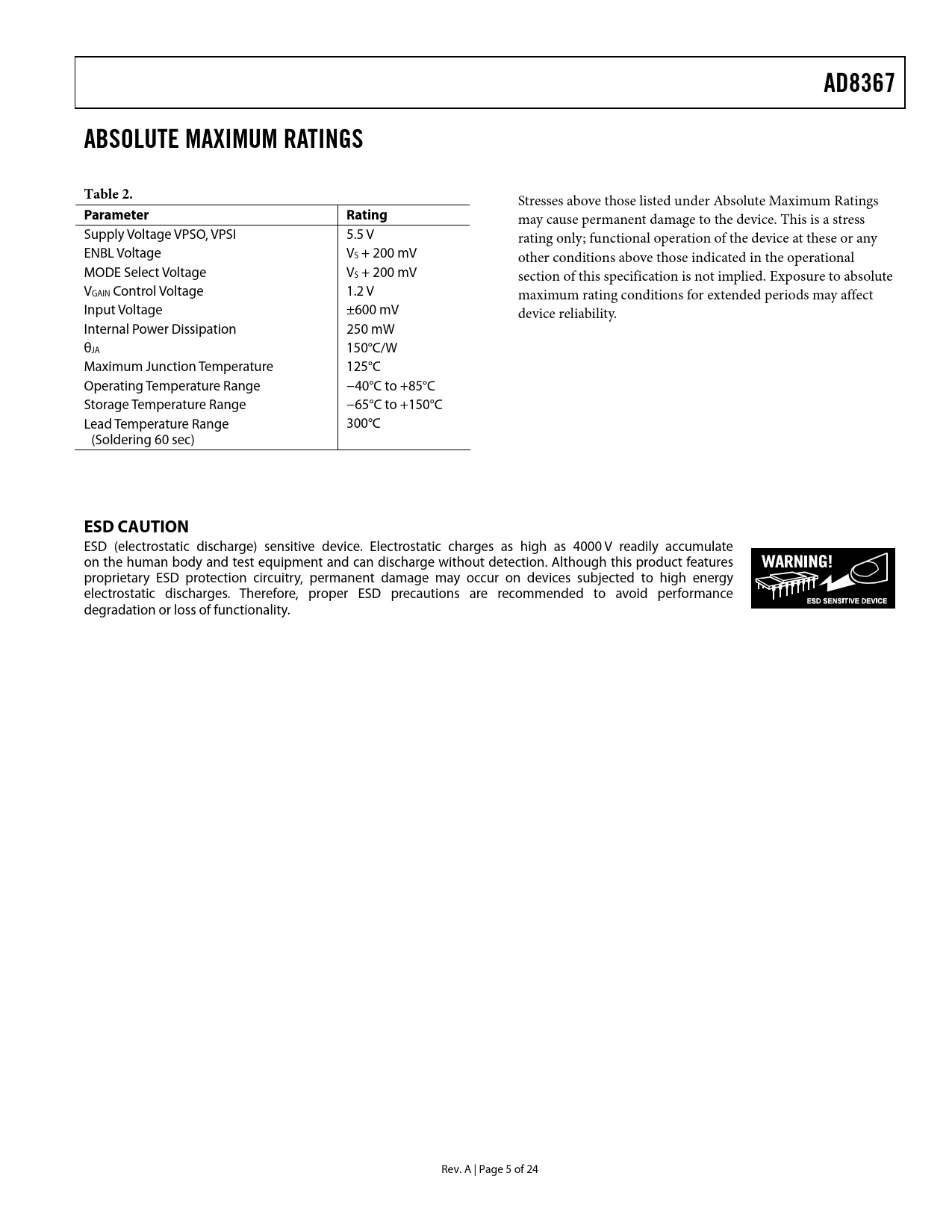

AD8367 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage VPSO, VPSI 5.5 V rating only; functional operation of the device at these or any ENBL Voltage VS + 200 mV other conditions above those indicated in the operational MODE Select Voltage VS + 200 mV section of this specification is not implied. Exposure to absolute VGAIN Control Voltage 1.2 V maximum rating conditions for extended periods may affect Input Voltage ±600 mV device reliability. Internal Power Dissipation 250 mW θJA 150°C/W Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature Range 300°C (Soldering 60 sec)
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. A | Page 5 of 24 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INPUT ATTENUATOR AND GAIN CONTROL INPUT AND OUTPUT INTERFACES POWER AND VOLTAGE METRICS NOISE AND DISTORTION OUTPUT CENTERING RMS DETECTION APPLICATIONS INPUT AND OUTPUT MATCHING VGA OPERATION MODULATED GAIN MODE AGC OPERATION MODIFYING THE AGC SETPOINT EVALUATION BOARD CHARACTERIZATION SETUP AND METHODS OUTLINE DIMENSIONS ORDERING GUIDE
